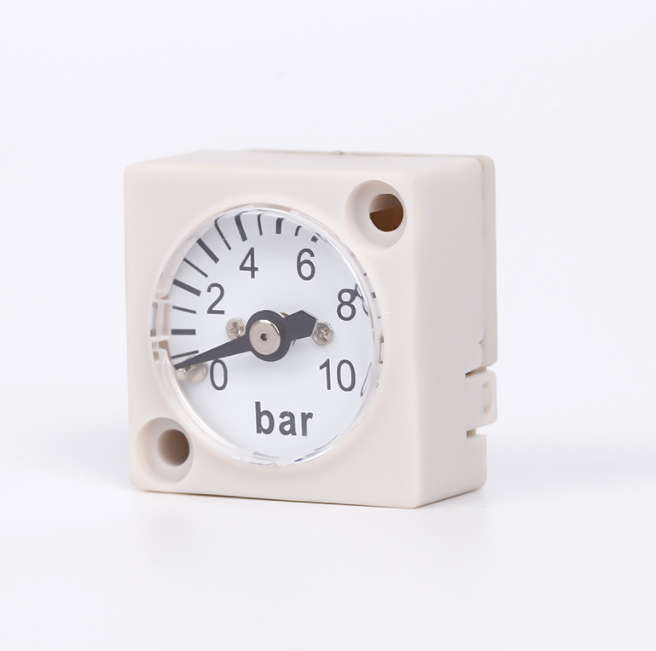

Y30，0-10bar square pressure gauge bar embedded mini pressure gauge oil pressure water pressure gauge

square pressure gauge, 0-10bar, accuracy class 2.5,
Model specification: Y30-008, overload pressure: 120%
Diagonal screw mounting, nominal diameter: 27x 27mm,
Brass + nylon material, applicable scene: air pressure, oil pressure, water pressure.
Welcome OEM customization.

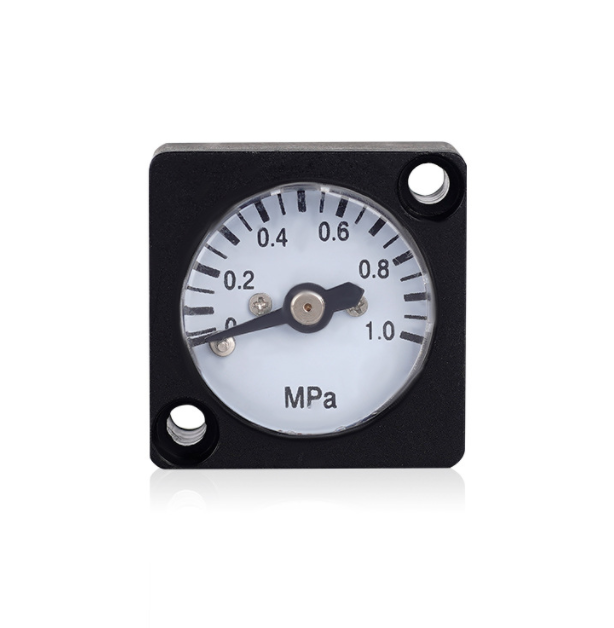

Y30 square pressure gauge.
Pressure range: 30/60/100/150/160psi ; 4/10/12/16bar; 0.4/1.0/1.2/1.6MPa
Accuracy class: 2.5 level 2.5% positive and negative error

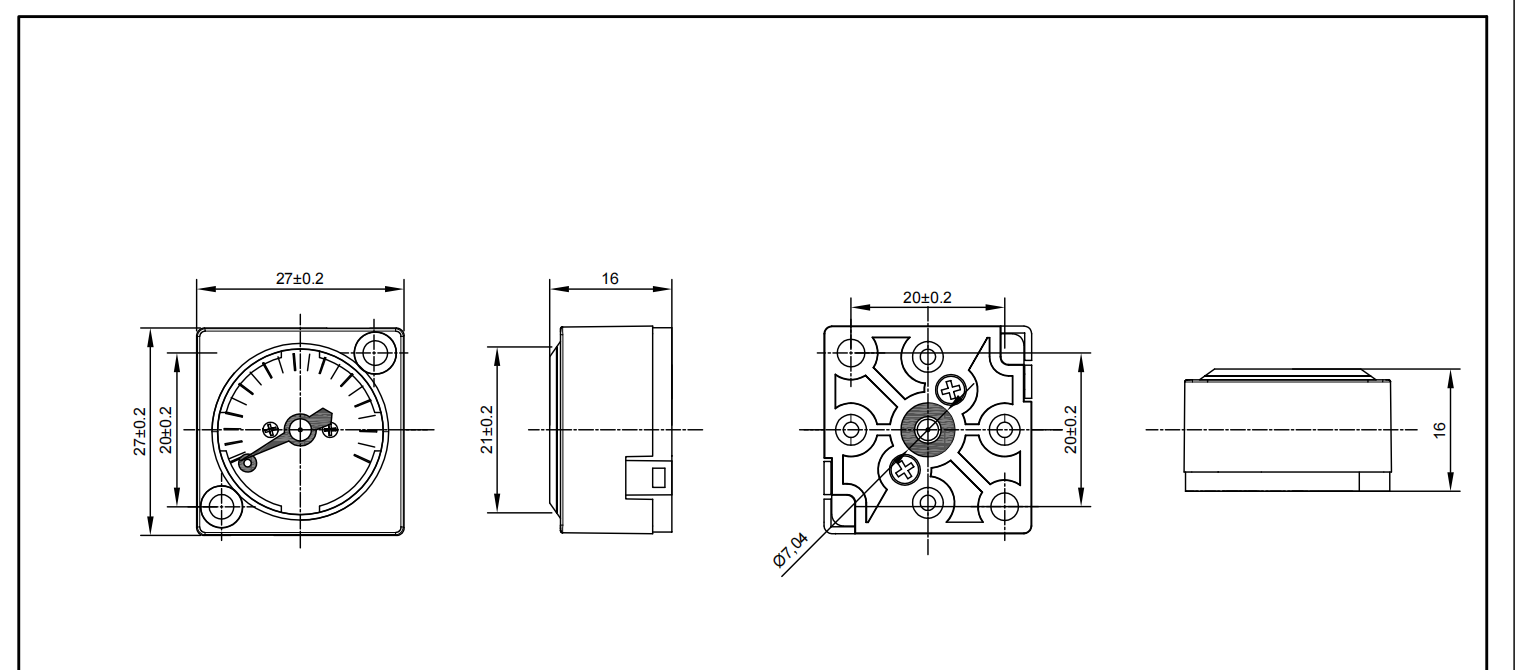

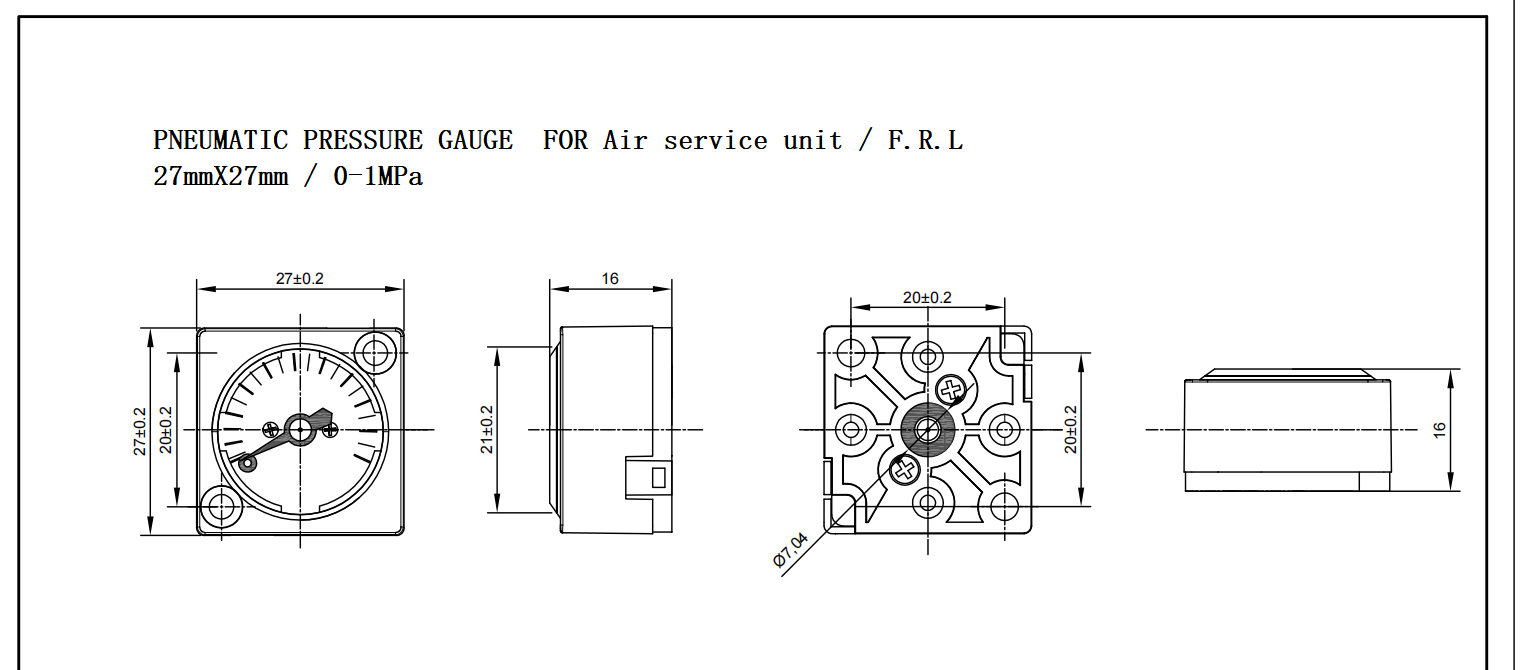

Mounting dimensions:
1.8 copper bottom AxBxC = 28.3x 27.5x15;
