YN63-PP plastic case diaphragm pressure gauge

PP diaphragm pressure gauge, plastic case diaphragm pressure gauge

All plastic anti-corrosion diaphragm meter 4kg/6kg/10kg/psi double scale single sided PP shell NPT1/2

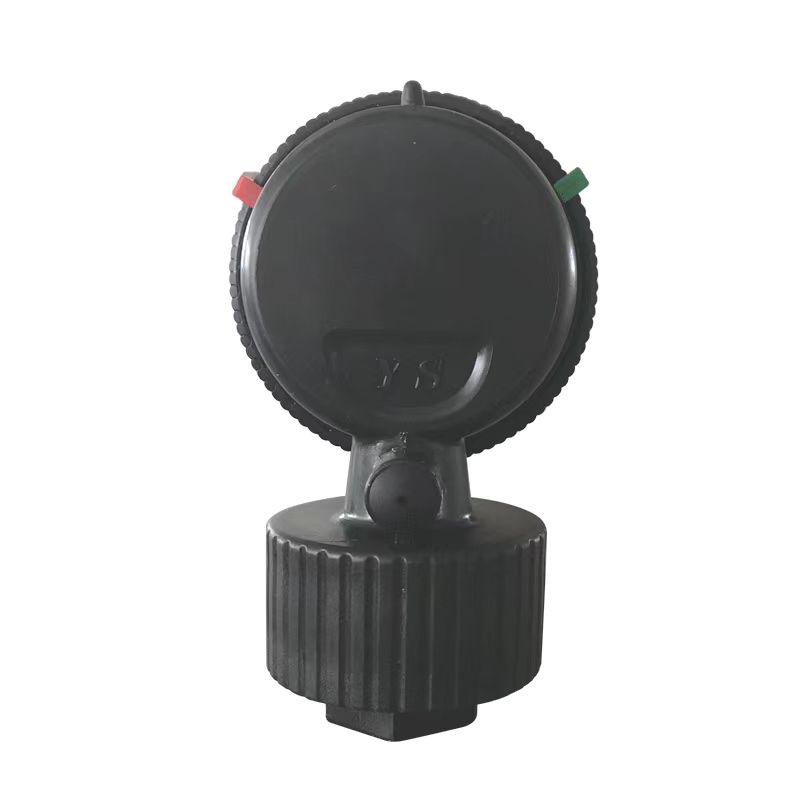

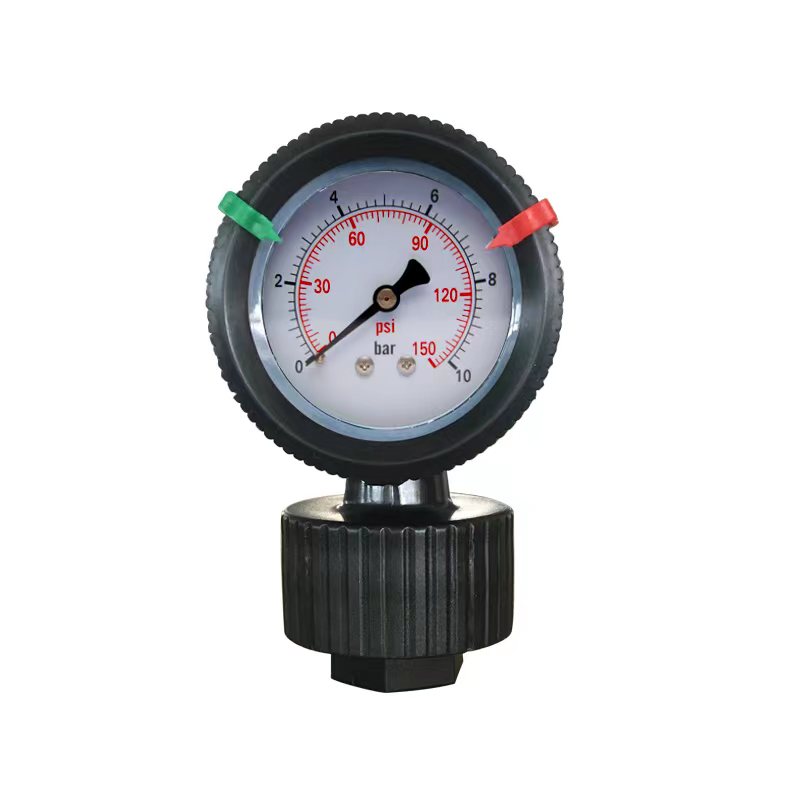

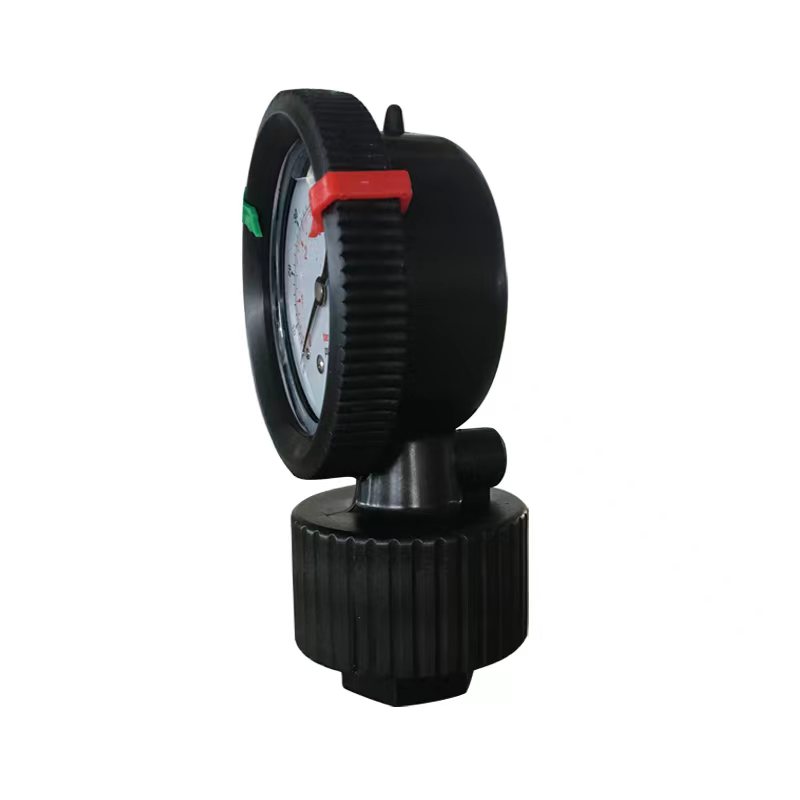

YN63-PP plastic case diaphragm pressure gauge
Shell diameter: 2.5"/ 63mm
Measuring range: 0～1KG, 2KG, 3KG, 4KG, 5KG, 7KG, 10KG, 15KG
Shell material: SUS-316 stainless steel, with fluorinated rubber leather sheath
Mirror surface: PC mirror or tempered glass
Connector thread: 1/2 inch internal thread
Accuracy level: 2.5
Diaphragm material: fluorinated rubber, acid and alkali resistant, anti-corrosion
Scope of application: used in PCB circuit board industry, metal etching machines and PCB/LCD cleaning liquid filter pumps. It is corrosion-resistant and can measure high-viscosity liquids and gases. It is widely used in various chemical machinery in the chemical industry.
Such as developing machines, cleaning machines, etching machines, liquid filters and other equipment
