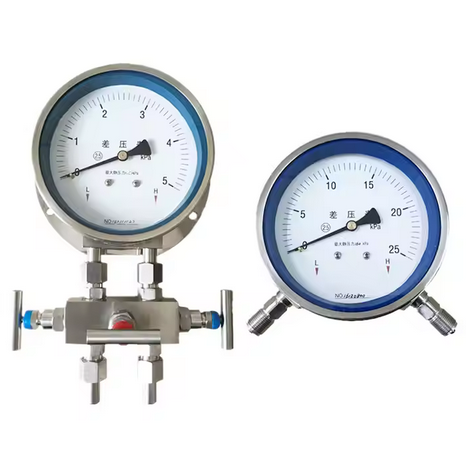

Double Diaphragm Differential Pressure Gauge,Positive and negative differential pressure gauge Filter pointer stainless steel double bellows differential pressure gauge

Differential Pressure Gauge

WIKA Type DP gauges
Double Diaphragm High Steady Differential Pressure Gauge
size: 100mm, 150mm
Over load: 10MPA
Accuracy: 1.6%, 2.5%
Window: laminated safe glass
Pointer: aluminium, black, zero adjustable
Case: DN100, 150
IP Protection: IP65
Process connection: 316L
Case material: 304SS
Movement: stainless steel 304
The material of blow out vent and filling plug:oil resistant rubber
Diaphragm material: 316L（for negative pressure） 316Ti（for positive pressure）
Steady: full scale value
Fluctuating: 0.7 × FS
Overpressure protection: both ends support 10 MPa
Operate temperature: － 20℃～60℃
Thermal drift: ± 0.8% every ± 10℃ of media

Positive and negative differential pressure gauge Filter pointer stainless steel double bellows differential pressure gauge

Range:16KPa、25KPa、40KPa…600Kpa

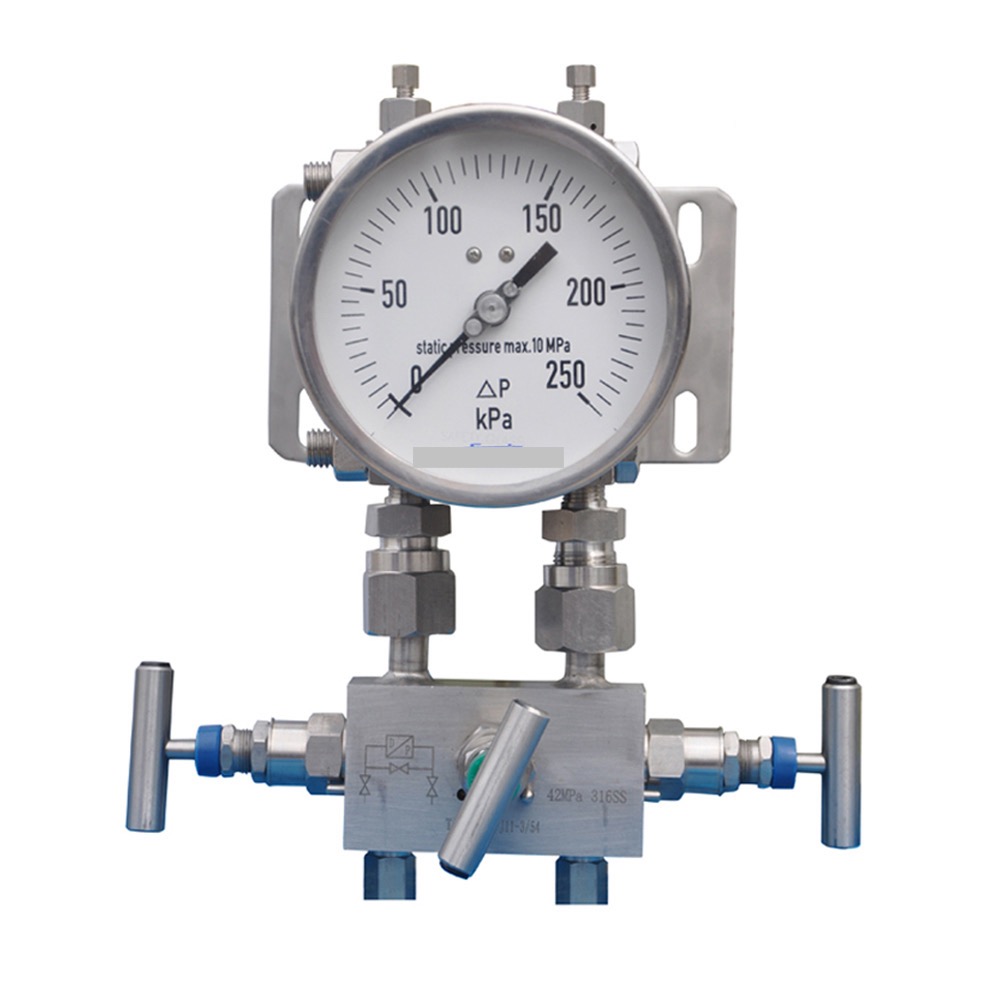

The instrument should be used with 3-way manifold group or 5-way manifold
