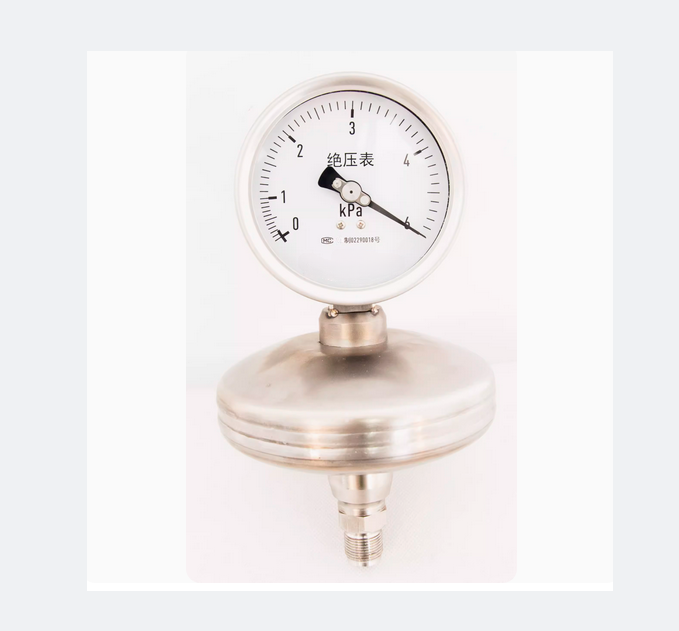

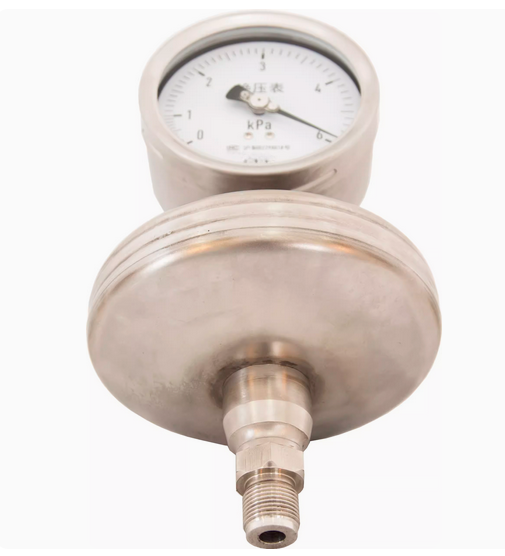

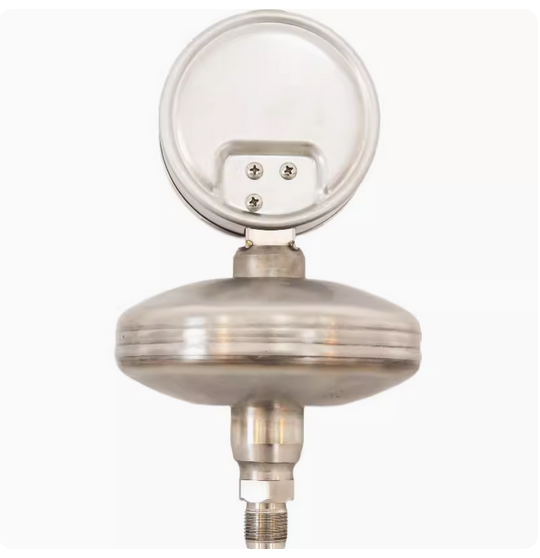

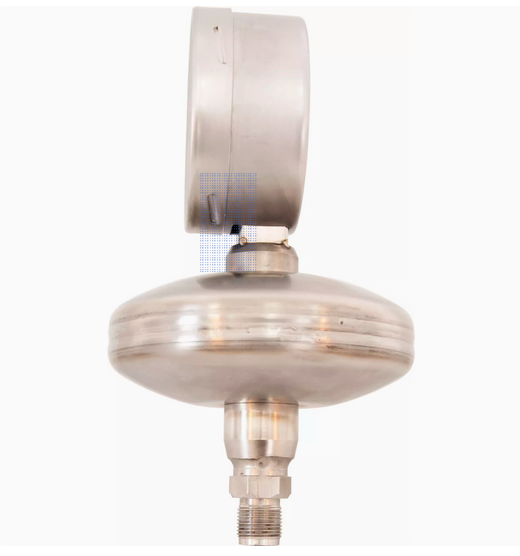

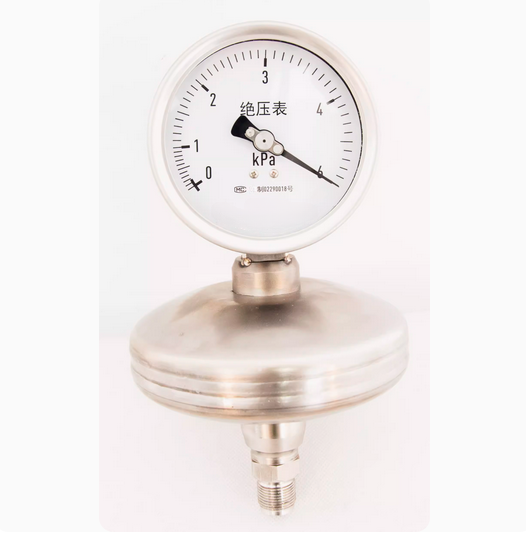

100MM 100Kpa 5 times overpressure， absolute pressure pressure gauge， 1.6F.S.

100MM  100Kpa 5 times overpressure， absolute pressure pressure gauge， 1.6F.S.

Absolute pressure gauge product parameters
Product model: absolute pressure pressure gauge
Instrument accuracy: 1.6F.S.
Shell material: stainless steel 304/316L
Connector material: stainless steel 304/316L
Dial diameter: 100mm
IP rating: IP65
Overpressure capability: can return to zero after 100% full scale
Ambient temperature: -20℃~60℃
Multilayer safety watch glass
UV high definition printed dial
Traceable production information
Accuracy 1.6F.S.
All stainless steel vacuum chamber
Stainless steel connector M20*1.5G1/2
304/316 stainless steel housing
The pressure change drives the elastic element and then indicates the pressure value through the precision movement.
