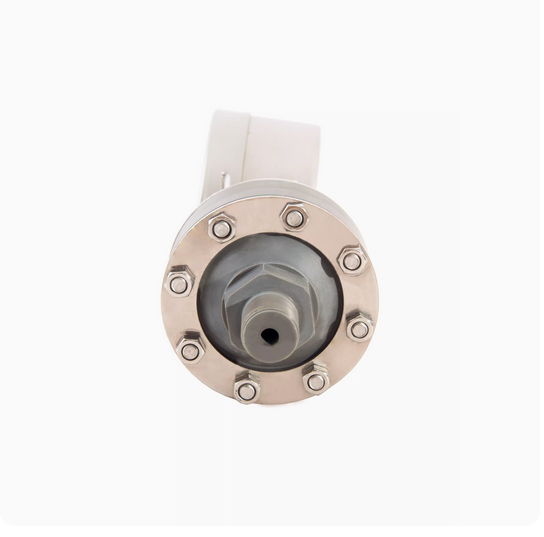

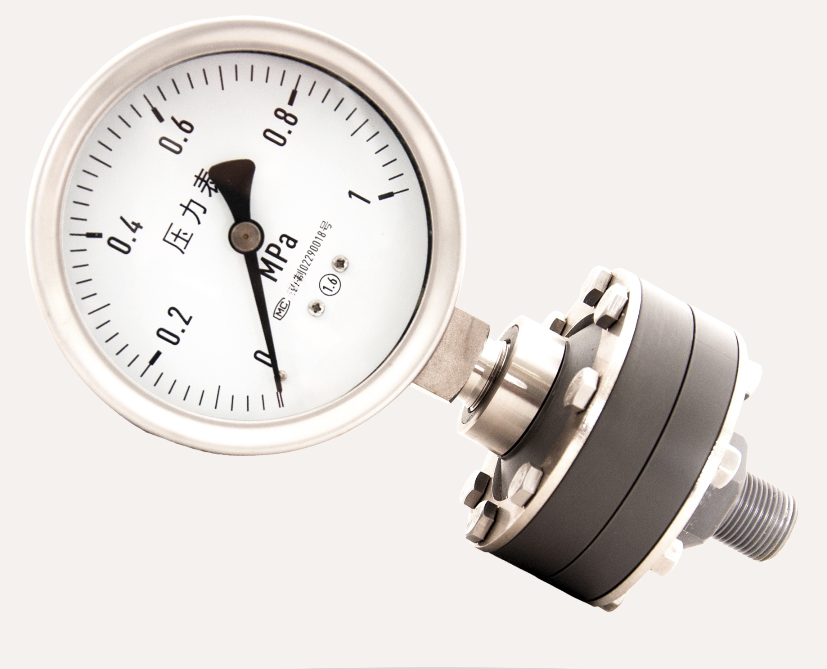

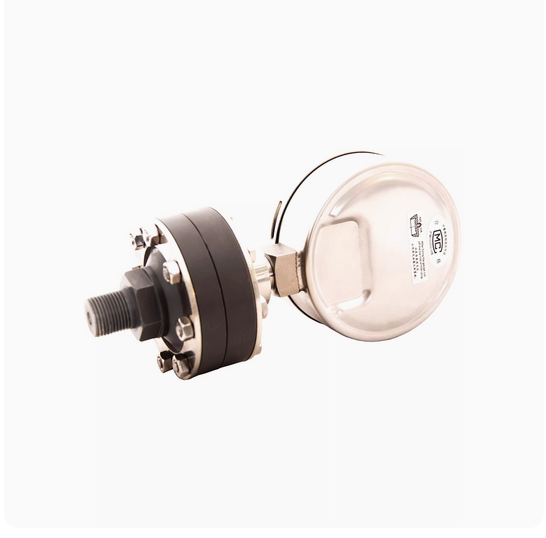

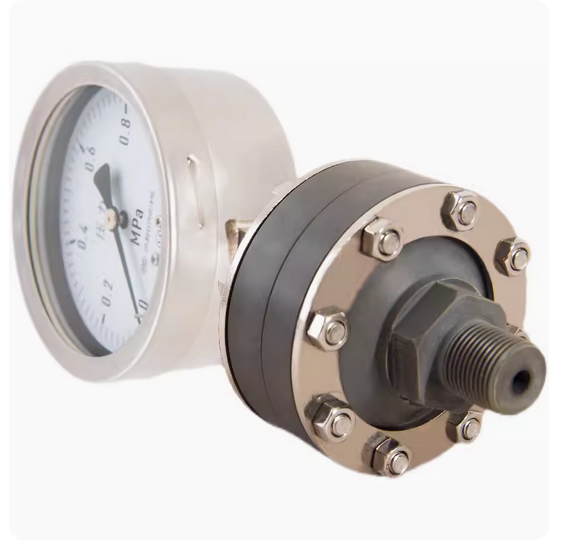

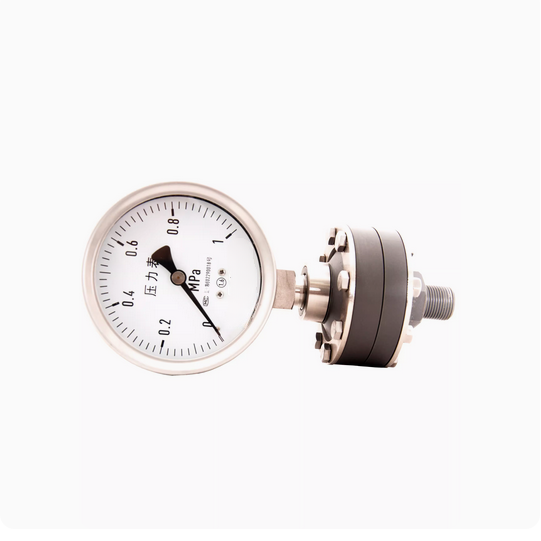

PVC diaphragm pressure gauge accuracy 1.6FS full range bottom connection 100mm, anti-corrosion joint

Stable measurement, anti-corrosion joints, full range, special material PVC diaphragm pressure gauge 2.5 accuracy 100mm,
 PVC diaphragm pressure gauge accuracy 1.6FS full range bottom connection 100mm, anti-corrosion joint

PVC diaphragm pressure gauge product parameters
Product model: YTFP-100H
Instrument accuracy: 2.5/1.6F.S.
Shell material: SUS304/SUS316L
Joint material: anti-corrosion PVC or Hastelloy C-276
Dial diameter: 100mm
IP rating: IP65
Overpressure capability: can return to zero after 125% full scale
Ambient temperature:-40℃~+60℃
LOWER BODY OF DIAPHRAGM SEAL MAT : Hastelloy C-276 or SUS316L
