magrfhelic differential pressure gauges manometer
micro differential pressure gauges
Place of Origin Anhui, China
Warranty 1 year
Customized support OEM
Brand Name Eagle eye
Model Number TE2000
range -60~0~600pa
model TE2000
Precision ±4%,±2%
Material Laminated aluminum
Nominal diameter 120mm
Micro Differential Pressure Gauge
Place of Origin Anhui, China
Warranty 1 year
Customized support OEM
Brand Name Eagle eye
Model Number TE2000
range -60~0~600pa
model TE2000
Precision ±4%,±2%
Material Laminated aluminum
Nominal diameter 120mm
Micro Differential Pressure Gauge

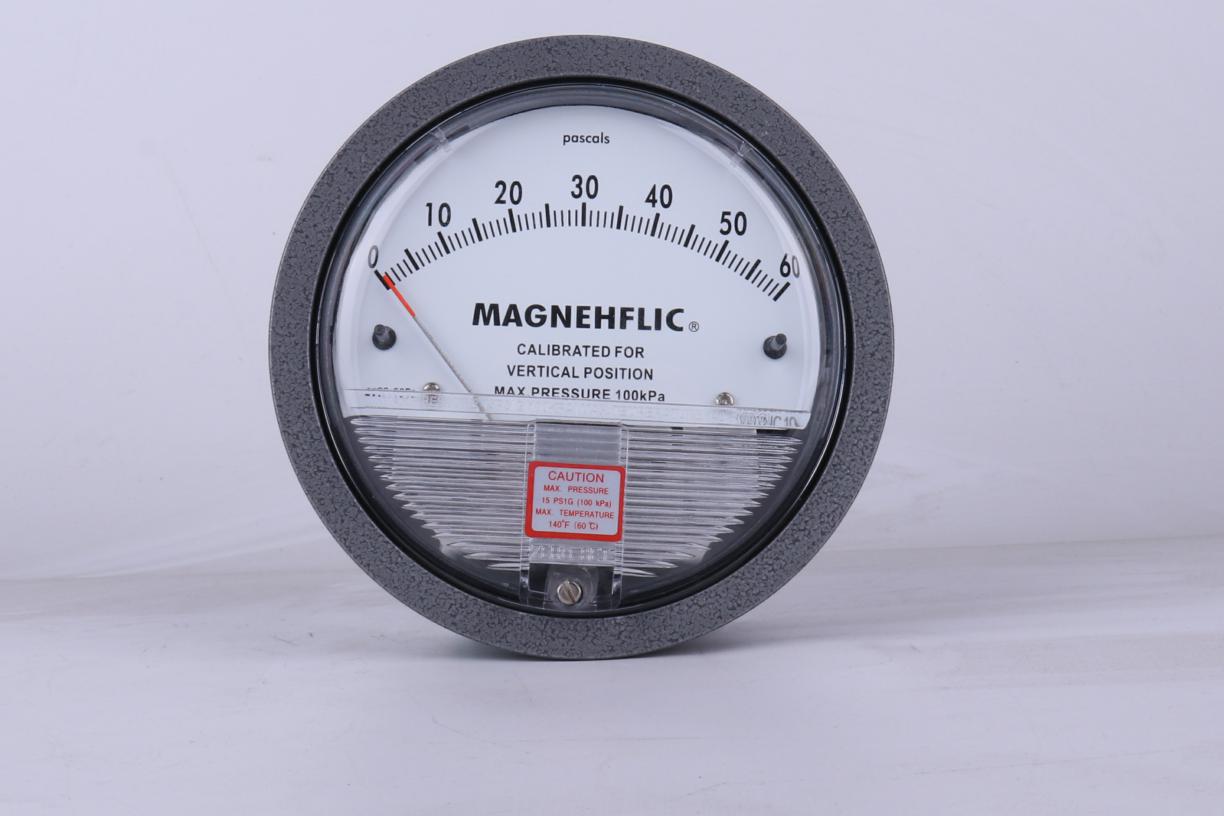

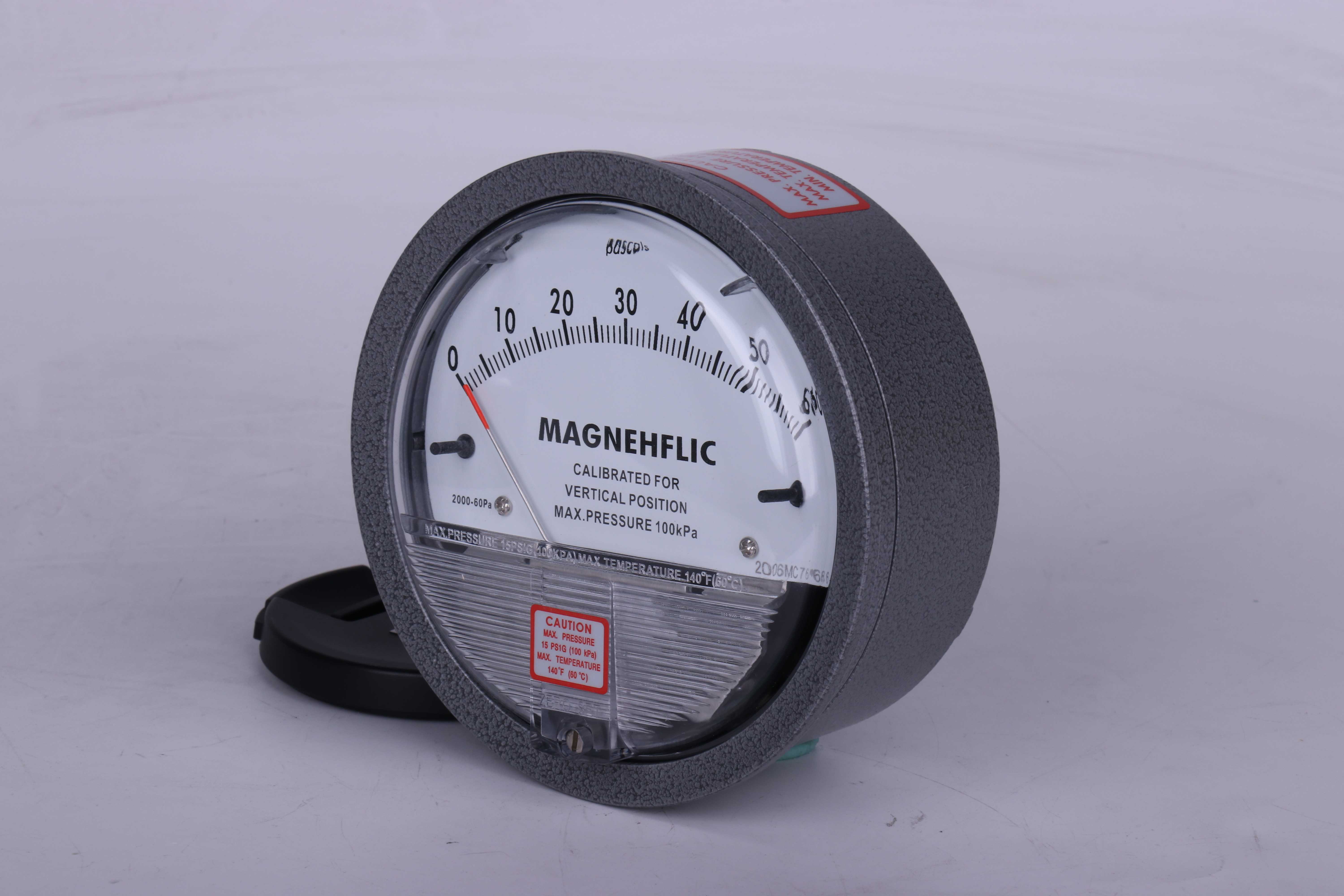

Name: TE2000 Micro Differential Pressure Gauge
Model: TE2000
Nominaldiameter: 120MM
Weight: About 560 grams
Product accuracy:21C full scale 2%, +3%,4%
Overpressure protection: The rubber overpressure plug isflushed out at about 172KPa
Temperature range:-7C~60°C
Material: Die-cast aluminum

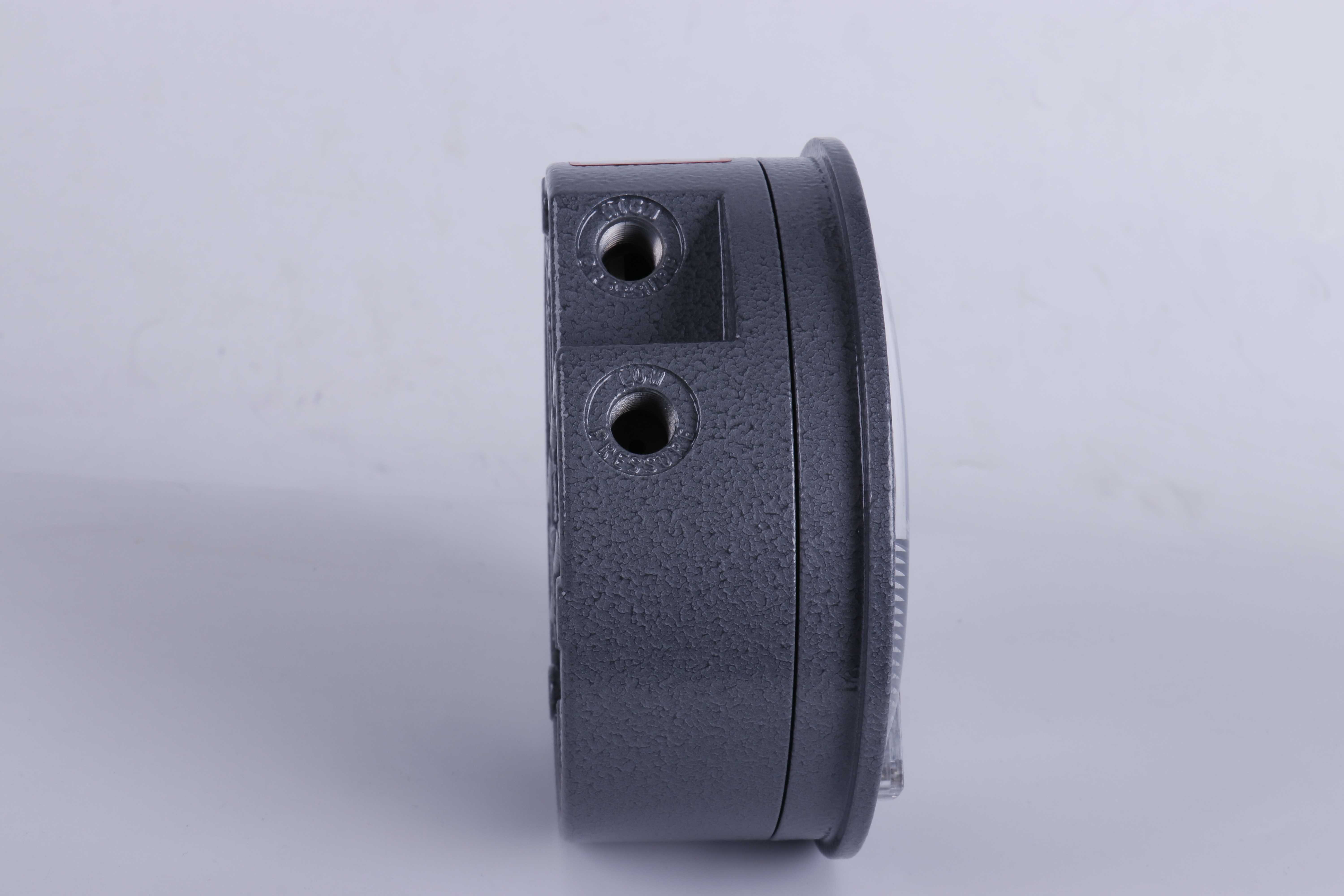

Process connection: High pressure and low pressure holes are1/8"vertebral canal thread,two sets

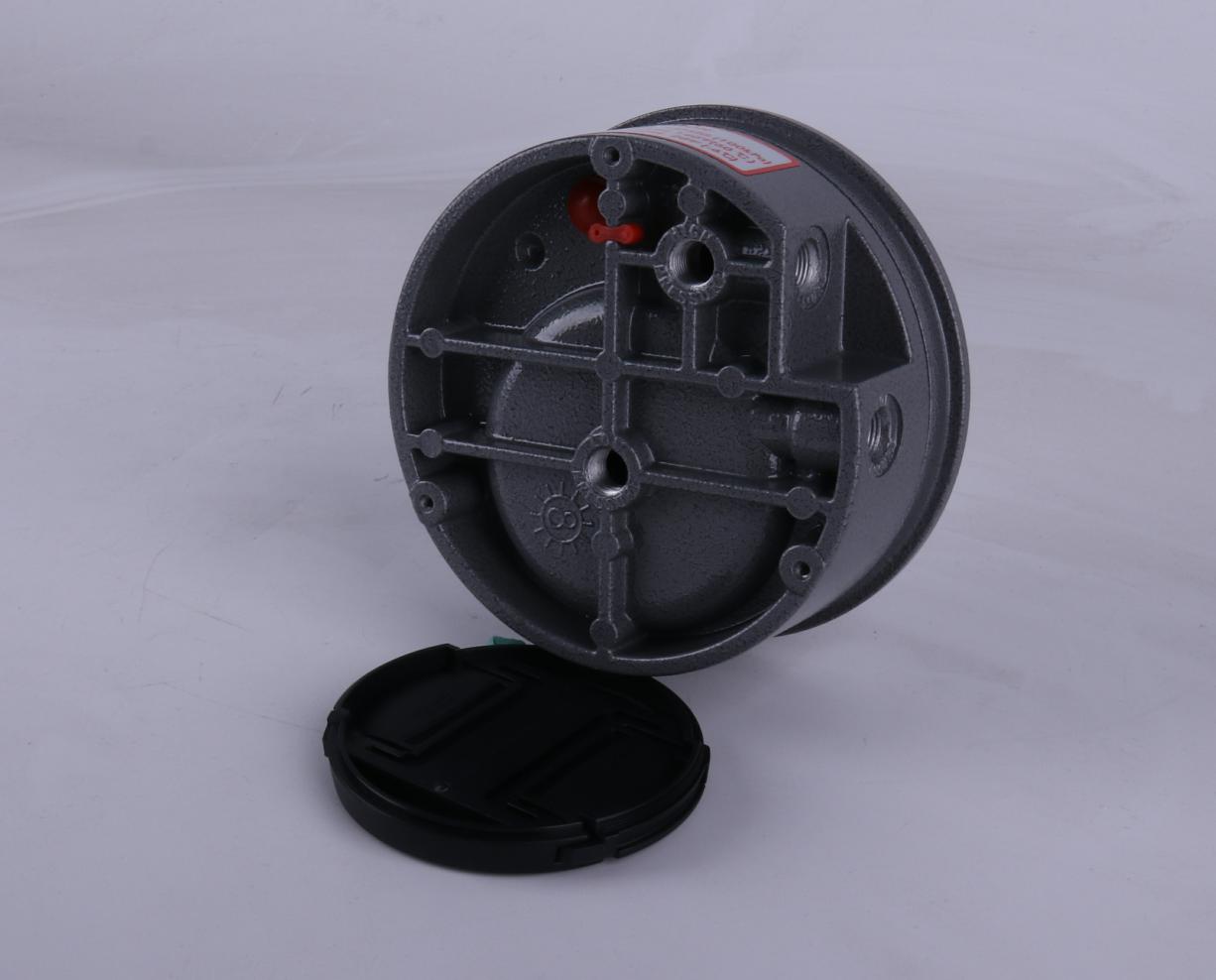

One set on the side and one on the back)
Range: 20,30,60,100,125,150,200,250,300,500,600,750Pa1,1.5,2,3,4,5,8,10,20,30KPa,-30~30,-60~60,-125~125,
200~200，-250~250,-500~500Pa,-2~2KPa,etc.
