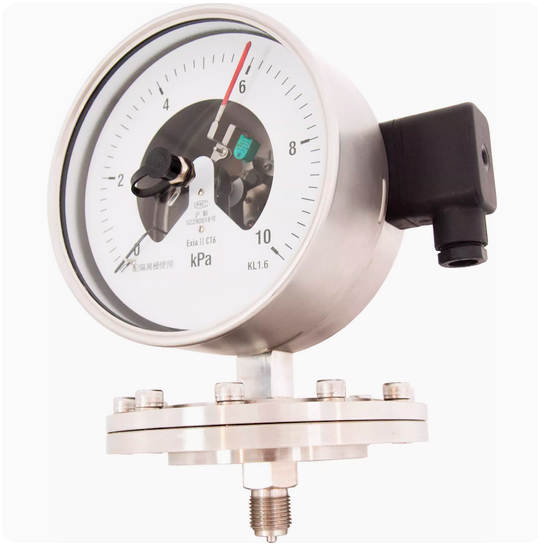

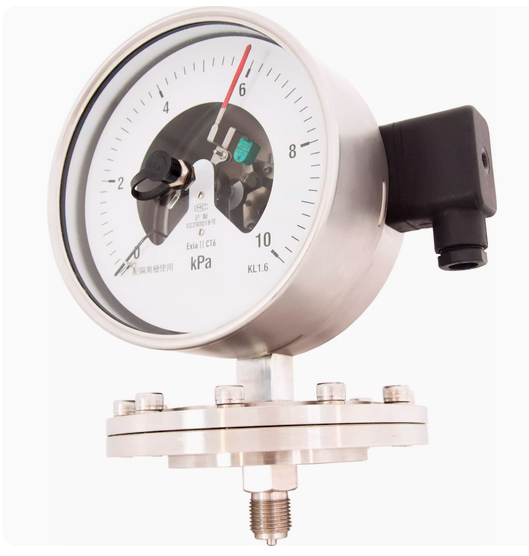

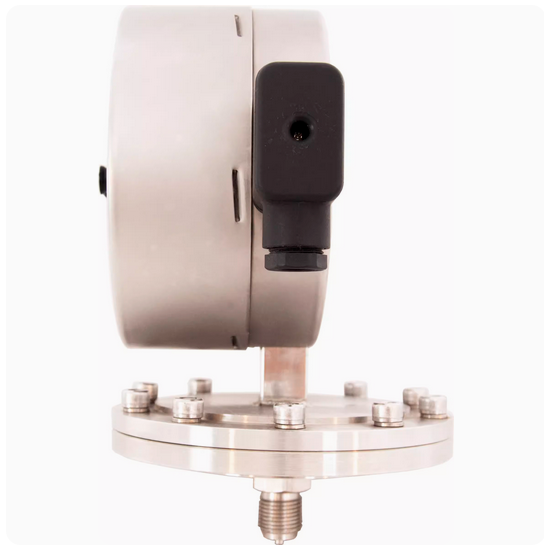

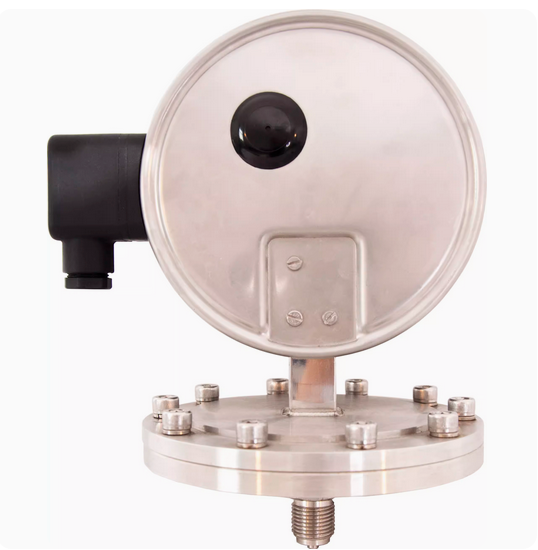

Inductive electric contact diaphragm pressure gauge 4-20mA

All stainless steel inductive electric contact diaphragm pressure gauge 4-20mA
Product parameters of inductive electric contact diaphragm pressure gauge
Product model: YXG-150H
Instrument accuracy: 1.6/1. OF.S.
Shell material: stainless steel 304/316L
Connector material: stainless steel 301/316L
Diaphragm material: Hastelloy C-276, Monel, gall material, PTFE
Dial diameter: 100mm/150mm/160mm
IP rating: IP65
Overpressure capability: can return to zero after 125% full scale
Ambient temperature: -20℃~60℃

P+F explosion-proof
UV high definition printed dial
Tempered glass safety glass
Accuracy 1.6/1.OF.S.
Electrical contact signal output
Traceable production information
304/316L stainless steel shell
The pressure change drives the elastic element and then indicates the pressure value through the precision movement.
Explosion protection hole

全不锈钢感应式电接点膜片压力表
感应式电接点膜片压力表产品参数
SUS304SUS316L
产品型号:YXG-150H
仪表精度:1.6/1. OF.S.
外壳材质:不锈钢304/316L
接头材质:不锈钢301/316L
膜片材质:Hastelloy C-276、蒙乃尔、胆材、四氟
表盘直径:100mm/150mm/160mm
IP 等级:IP65
超压能力:125%满量程后可回零
环境温度:-20℃~60℃

P+F防爆
UV 高清印刷表盘
钢化玻璃安全玻璃
精度 1.6/1.OF.S.
电接点信号输出
可追溯生产信息
304/316L不锈钢外壳
压力变化带动弹性元件再通过精密机芯指示压力值
防爆孔
