Built-in square pressure gauge manufacturers stock plastic inlaid square 27MM inlaid mini pressure gauge
Built-in square pressure gauge manufacturers stock plastic inlaid square 27MM inlaid mini pressure gauge

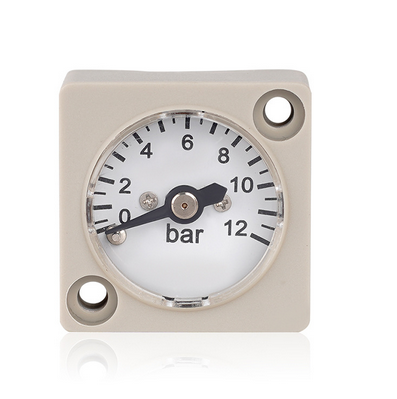

Product name: White square pressure gauge
Accuracy level: 2.5
Model specifications: Y30-001
Connection method: diagonal screw installation
Main material: brass + nylon
Measuring range:0-12BAR
Ambient temperature:25°C
Overload pressure: 120%

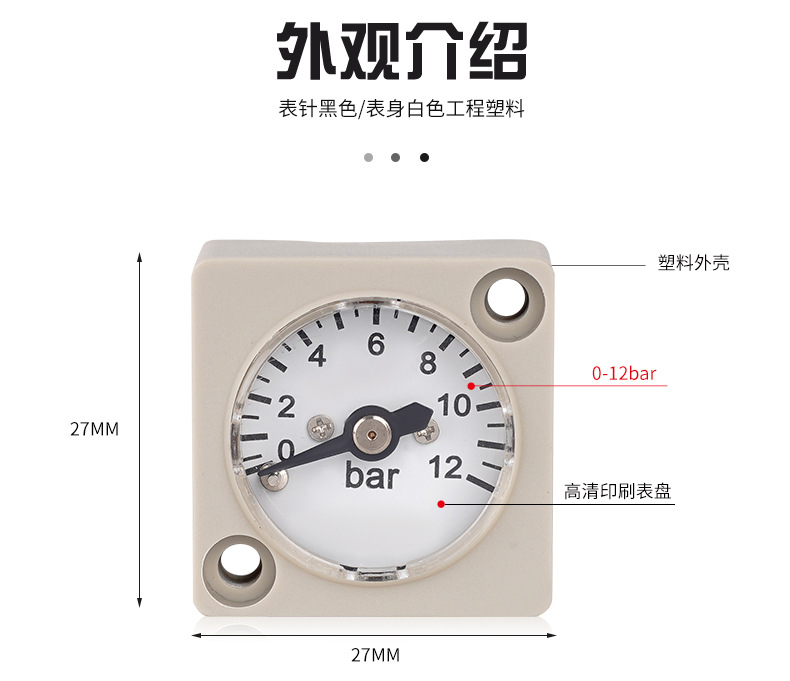

Nominal diameter:27X27mm
Applicable scenarios: air pressure, oil pressure, water pressure
Accuracy level: 2.5
Model specifications: Y30-001
Connection method: diagonal screw installation
Main material: brass + nylon
Measuring range:0-12BAR
Ambient temperature:25°C
Overload pressure: 120%
Nominal diameter:27X27mm
Applicable scenarios: air pressure, oil pressure, water pressure
Y30 square pressure gauge.
Pressure range: 30/60/100/150/160psi; 4/10/12/16bar; 0.4/1.0/1.2/1.6MPa
Accuracy level: Level 2.5 (±2.5%)
Installation dimensions:
1.8 copper base AxBxC=28.3x27.5x15;
YDK type AxBxC=29x27x15.6;
YR type AxBxC=28.3x27.5x16;
Plastic bottom plate AxBxC=28.5x27x161.8;
Base plate material:
Brass base plate;
1.0 brass base plate;
1.5 iron galvanized;
2.5 plastic bottom plate;
Case color: milky white, black, gray, blue, orange, etc. can be customized
Product accessories: optional: 0-ring: M3 mounting screws
