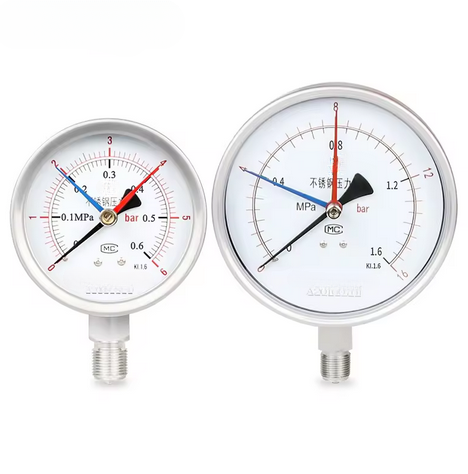

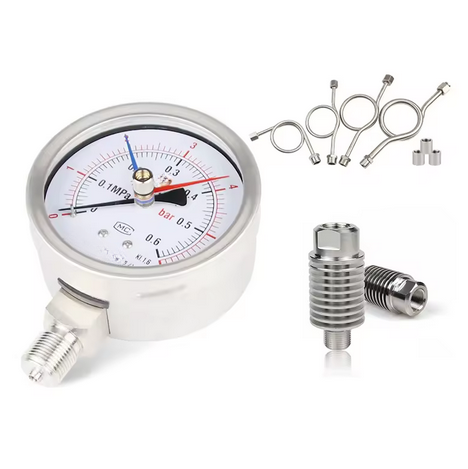

Three needle type Double Range pressure gauge

Y60/100/150 Three needle type Double Range pressure gauge

Y60/100/150 Three needle type Double Range pressure gauge

Accuracy level:Level 1.0,1.6,2.5 customizable
Measuring range:100~150: -0.1 ~ 0.06... 250MPA can be customized
Nominal diameter:     Levels 1.0, 1.6, 2.5 can be customized
Precision class :    From 40 ~ 60, 0.1 ~ 0 ~ 0.1... 60MPa
Measuring range:     φ100~φ250, -0.1~0~0.06^250MPa
Overpressure capacity :    Full scale *130%
Ambient temperature :    - 40 ℃ ~ 70 ℃
Medium temperature :    - 40 ℃ ~ 100 ℃
Process connection :    φ40~φ60, M14*1.5; φ100~φ250, M20*1.5
Pressure sensing element :    < 10MPa, C-type tube; ≥10MPa, spiral tube
Liquid material :    316L, Monel is optional
Case material :    304SS, 316L
Instrument glass :    φ40~φ100 polycarbonate (except φ60), other flat glass or safety glass
Class of protection     :IP54,IP65,IP66
