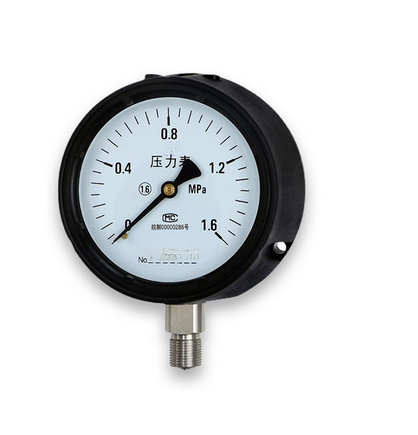

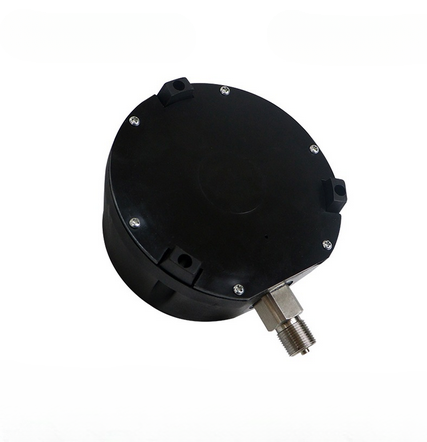

Phenolic Pressure gauge Safety pressure gauge vacuum pressure oil pressure hydraulic phenolic shell pressure gauge
Accuracy level: 1.0 level, industrial level 0.5 level, can be customized
Measuring range:-0.1~0~0.06...160Mpa can be customized
Ambient temperature:-40~70°C
Medium temperature:-40~100°C
Overvoltage capability: full scale x130%
Process connection: M20*1.5, 1/2”NPT, G1/2”
Wetted material: 316L, Monel optional
Case material: phenolic resin
Sealing material: nitrile rubber
产品型号:YQSH(N)
精度等级:1.0级、工业级0.5级 可定制
测量范围:-0.1~0~0.06.....160Mpa 可定制
环境温度:-40~70°C
介质温度:-40~100°C
过压能力:满量程x130%
过程连接:M20*1.5，1/2”NPT，G1/2”
接液材质:316L、蒙乃尔可选
表壳材质:酚醛树脂
密封材料:丁腈橡胶
