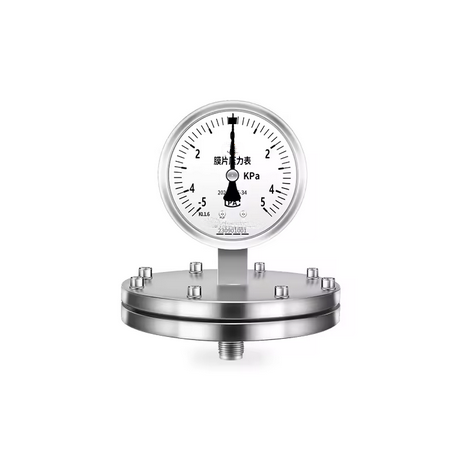

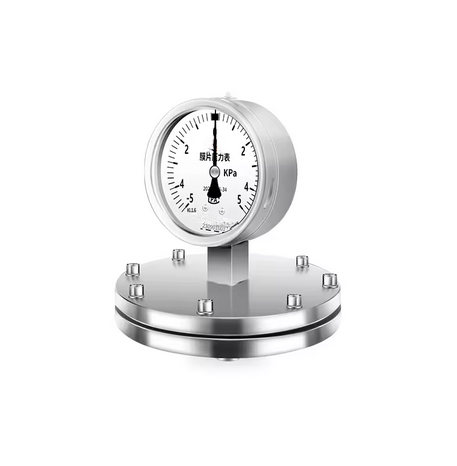

DN25 dn50 Flange pressure gauge lined with PTFE stainless steel diaphragm

diaphragm thread 14*1.5 stainless steel 316L  shock, corrosion and high temperature diaphragm pressure gauge

DN25dn50 Flange pressure gauge lined with PTFE stainless steel diaphragm type pressure gauge diaphragm

All stainless steel pressure gaugewith shock-resistant diaphragm OEM&ODM Technical Support，

Nominal diameter:     φ100,φ150
Precision class :    Level 1.6, 2.5, 4
Measuring range:     0~1KPa……2.5MPa
Overpressure capacity :    Full scale×130%
Ambient temperature:     -40℃~70℃
Medium temperature :    -40℃~100℃
Process connection :    M20*1.5,1/2" NPT,G1/2"
Liquid material :    316SS
Case material :    304SS

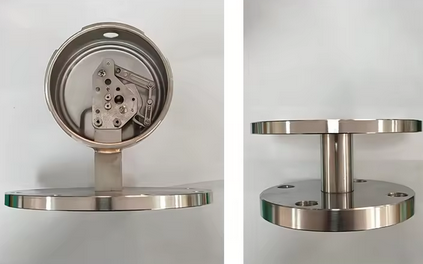

Movement material :    304SS
Pressure sensing element :    diaphragm
Instrument pointer     :Aluminum alloy, black
Meter dial     :Aluminum alloy, black lettering on white background
Instrument glass     :Safety glass
Class of protection :    IP54,IP65,IP66
Overpressure capacity:     The maximum pressure is 130% of full scale
