Diaphragm differential magnetic differential pressure gauge low-temperature measurement

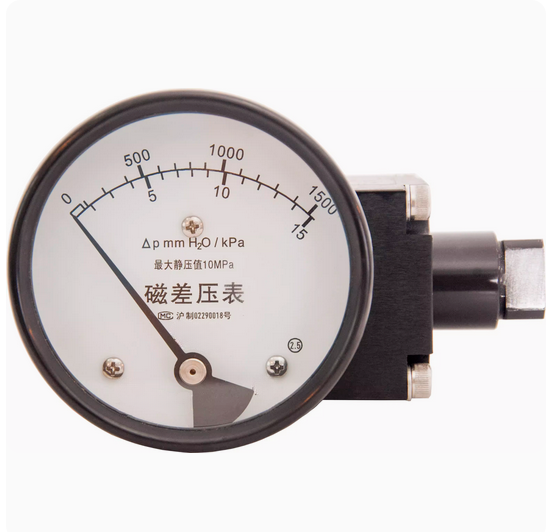

Diaphragm type 15Kpa differential magnetic differential pressure gauge
Diaphragm type 15Kpa differential magnetic differential pressure gauge
10Kpa differential pressure 6Mpa static pressure 80 Outer diameter 2.5FS
15Kpa differential pressure 6Mpa static pressure 80 Outer diameter 2.5FS
25Kpa differential pressure 6Mpa static pressure 80 Outer diameter 2.5FS
40Kpa differential pressure 6Mpa static pressure 80 OD 2.5FS
60Kpa differential pressure 6Mpa static pressure 80 OD 2.5FS
100Kpa differential pressure 6Mpa static pressure 80 Outer diameter 2.5FS
150Kpa differential pressure 6Mpa static pressure 80 OD 2.5FS
250Kpa differential pressure 6Mpa static pressure 80 OD 2.5FS
300Kpa differential pressure 6Mpa static pressure 80 Outer diameter 2.5FS

Horizontal connection quick and easy to cool special differential pressure level meter
Product Model :YC-80- Quick and easy cooling differential pressure level gauge
Instrument accuracy: 2.5F.S.
Case material :316 stainless steel
Liquid material: Aluminum alloy (can be upgraded to stainless steel)
Dial diameter :80mm
IP level :IP65
Overpressure capacity :100% full scale can be returned to zero
Measuring temperature: minimum -197℃
UV HD printed dial
Transparent crack resistant material
Differential pressure gauge
Accuracy 2.5F.S.
Traceability of production information
Stainless steel joint NPT1/4
Diaphragm differential pressure components can be used at ultra-low temperatures

Maximum static pressure 10MPa
Magnetic differential pressure meter

隔膜型 15Kpa差压 磁差压压力表
隔膜型 15Kpa差压 磁差压压力表
10Kpa差压 6Mpa静压 80外径 2.5FS
15Kpa差压 6Mpa静压 80外径 2.5FS
25Kpa差压 6Mpa静压 80外径 2.5FS
40Kpa差压 6Mpa静压 80外径 2.5FS
60Kpa差压 6Mpa静压 80外径 2.5FS
100Kpa差压 6Mpa静压 80外径 2.5FS
150Kpa差压 6Mpa静压 80外径 2.5FS
250Kpa差压 6Mpa静压 80外径 2.5FS
300Kpa差压 6Mpa静压 80外径 2.5FS

水平连接快易冷专用差压液位表
多量程 磁差压表 2.5级精度 低温测量
产品型号:YC-80-快易冷差压液位表
仪表精度:2. 5F. S.
外壳材质:316不锈钢
接液材质:铝合金(可升级为不锈钢)
表盘直径:80mm
IP 等级:IP65
超压能力:100%满量程后可回零
测量温度:最低-197℃
UV 高清印刷表盘
透明防裂材质
差压表
精度 2.5F.S.
可追溯生产信息
不锈钢接头NPT1/4
隔膜磁差压组件可在超低温下使用
