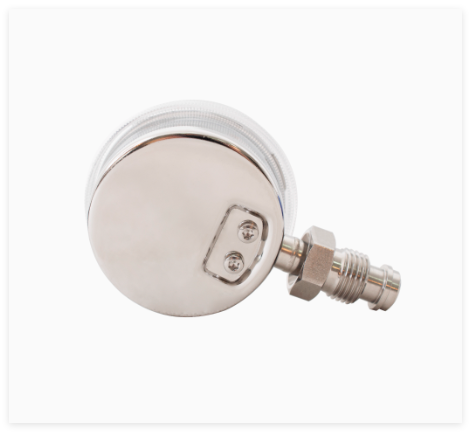

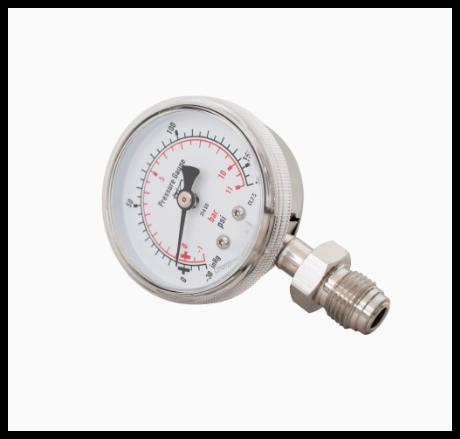

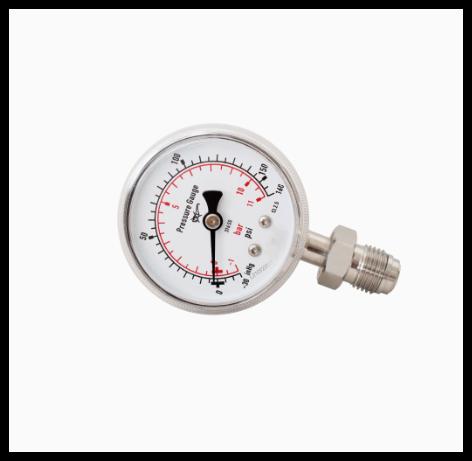

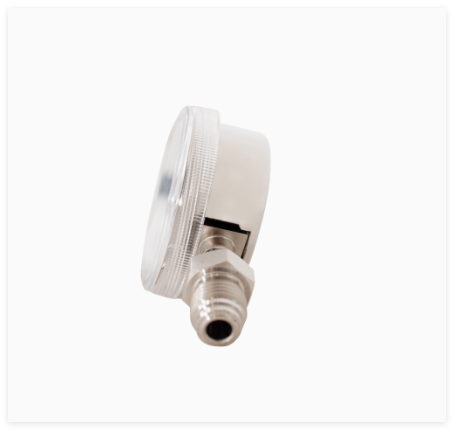

50MM radial BA class high purity VCR male thread UHP pressure gauge 1.6FS

50MM radial BA class high purity VCR male thread UHP pressure gauge 1.6FS
Product model :YTJ-50B
Meter accuracy :(2/1/2)
Shell material :304 stainless steel
Connector material :316L stainless steel plating
Thread interface :1/4M-VCR, 1/4F-VCR
Diameter :50mm
IP class :IP54
Helium leak detection: <10°mbar x L/sec
Cleanliness: BA grade
Surface smoothness: Ra≤ 0.25μm
Ambient temperature: -40℃~80℃
Overpressure capacity: 125% full scale can return to zero
Fluctuating pressure: 67% of full scale
Constant pressure: 75% of full range

Oil removal treatment radial BA class high purity VCR male thread UHP pressure gauge 1.6FS
IP54 high purity VCR male thread UHP pressure gauge 1.6FS
BA class radial BA class high purity VCR male thread UHP pressure gauge

50MM 径向 BA级高纯VCR公螺纹UHP压力表 1.6FS
产品型号:YTJ-50B
仪表精度:(2/1/2)
外壳材质:304不锈钢
接头材质:316L不锈钢电镀
螺纹接口:1/4M-VCR， 1/4F-VCR
直径:50mm
IP 等 级:IP54
氦 检 漏：<10°mbar x L/sec
洁 净 度：BA级
表面光滑度：Ra≤0.25 μm
环境温度：-40℃~80℃
超压能力：125%满量程后可回零
波动压力：全量程的67%
恒压：全量程的75%

去油处理径向 BA级高纯VCR公螺纹UHP压力表 1.6FS
IP54高纯VCR公螺纹UHP压力表 1.6FS
BA级径向 BA级高纯VCR公螺纹UHP压力表
