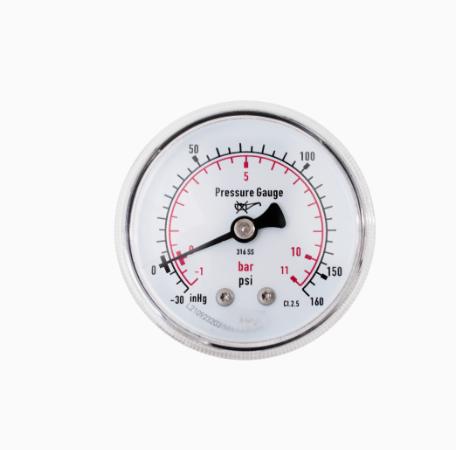

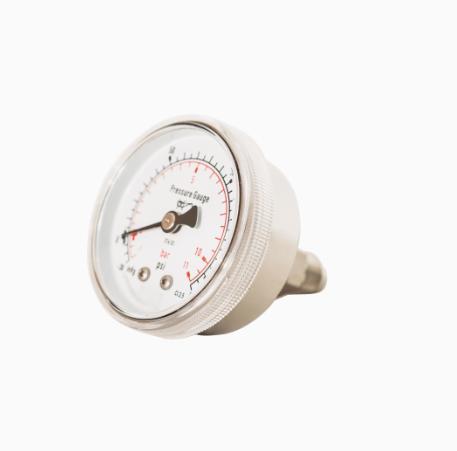

50MM axial BA class high purity pressure gauge UHP male thread 1.6FS full range

50MM axial BA class high purity pressure gauge UHP male thread 1.6FS full range

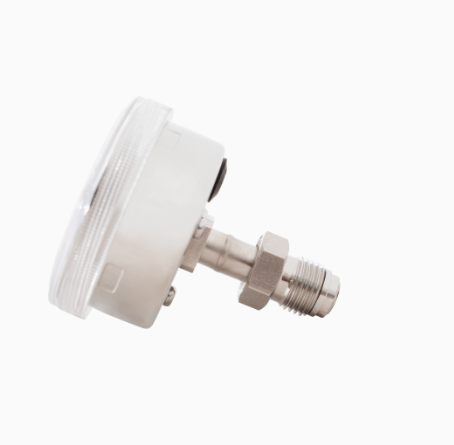

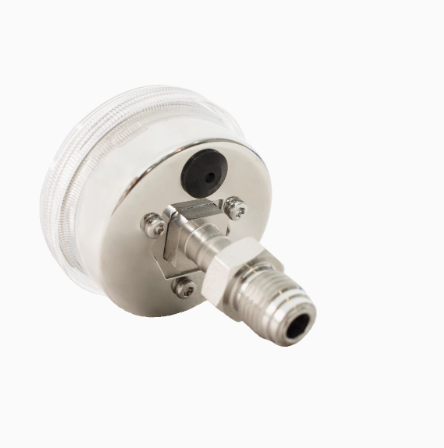

Back connection all stainless steel clean pressure gauge
Product model :YTJ-50BZ
Meter accuracy :(2/1/2)
Shell material :304 stainless steel
Connector material :316L stainless steel plating
Thread interface :1/4M-VCR,1/4F-VCR
Dial diameter :50mm
IP class :IP54
Helium detection :<10 mbar x L/sec
Cleanliness :BA grade
Surface smoothness :Ra≤ 0.25um
Ambient temperature :-40℃~80℃
Overpressure capacity :125% full scale can return to zero
Fluctuating pressure: 67% of full scale
Constant pressure: 75% of full range

Oil removal treatment axial installation all stainless steel clean pressure gauge 50mm
IP54 axial BA class high purity pressure gauge
BA class UHP 1.6FS full range clean pressure gauge with male thread

50MM 轴向 BA级高纯压力表UHP公螺纹 1.6FS全量程
轴向安装全不锈钢洁净压力表
产品型号:YTJ-50BZ
仪表精度:(2/1/2)
外壳材质:304不锈钢
接头材质:316L不锈钢电镀
螺纹接口:1/4M-VCR ,1/4F-VCR
表盘直径:50mm
IP 等 级:IP54
氦 检 :<10 mbar x L/sec
洁 净 度:BA级
表面光滑度:Ra≤0.25 um
环境温度:-40℃~80℃
超压能力:125%满量程后可回零
波动压力：全量程的67%
恒压：全量程的75%

去油处理轴向安装全不锈钢洁净压力表50mm
IP54轴向BA级高纯压力表
BA级UHP公螺纹 1.6FS全量程洁净压力表
