50MM radial EP high purity UHP electrical contact pressure gauge 2.5FS full range

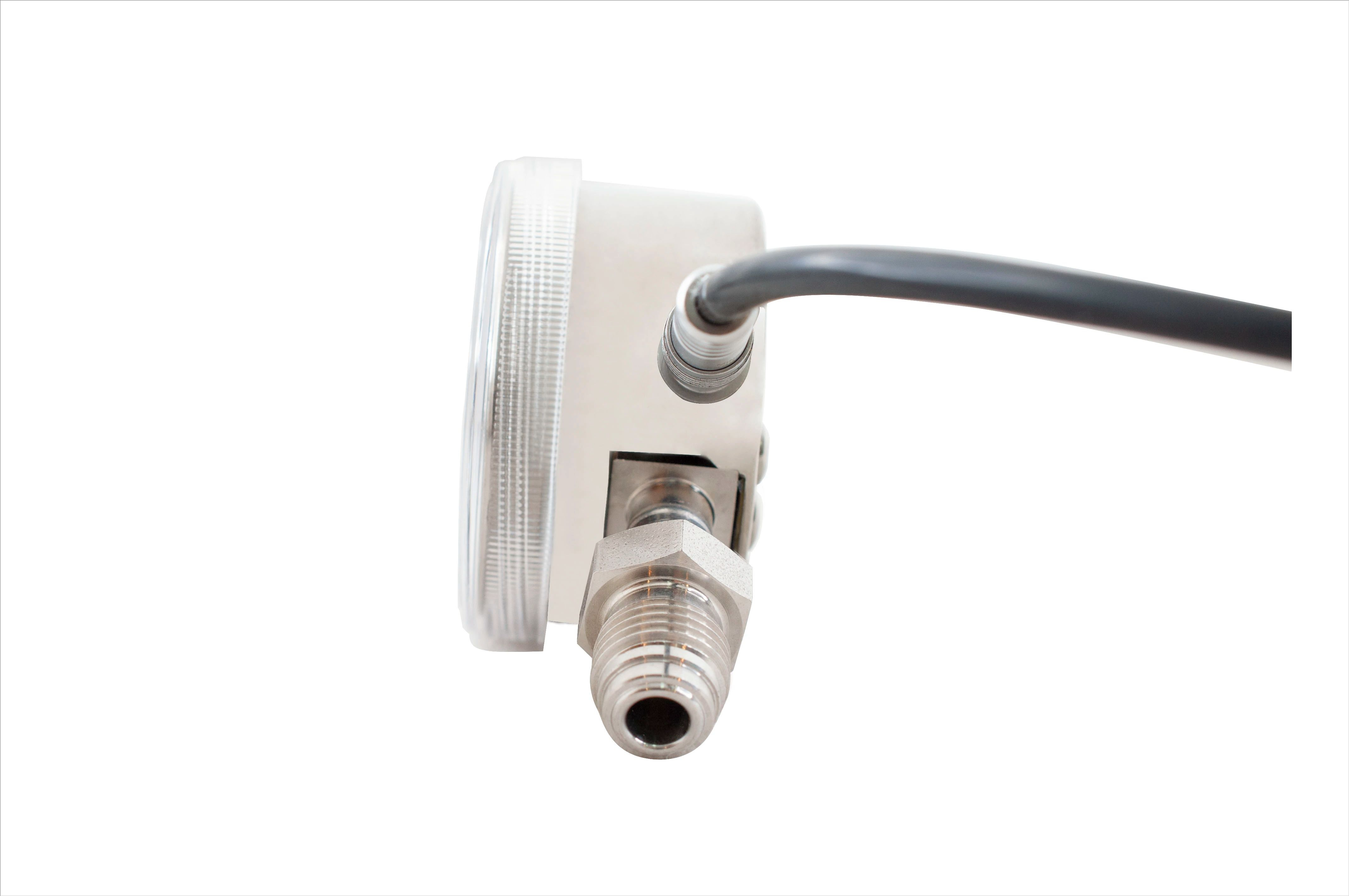

Radial all stainless steel clean electric contact pressure gauge
Product model :YXC-50H
Instrument accuracy :2/1/2
Shell material :304 stainless steel
Connector material :316L stainless steel EP grade
Dial diameter :50mm
IP Class :IP54
Overpressure capacity :125% full scale can return to zero
Ambient temperature :-40℃~+80°C
EP-A high purity UHP electrical contact pressure gauge

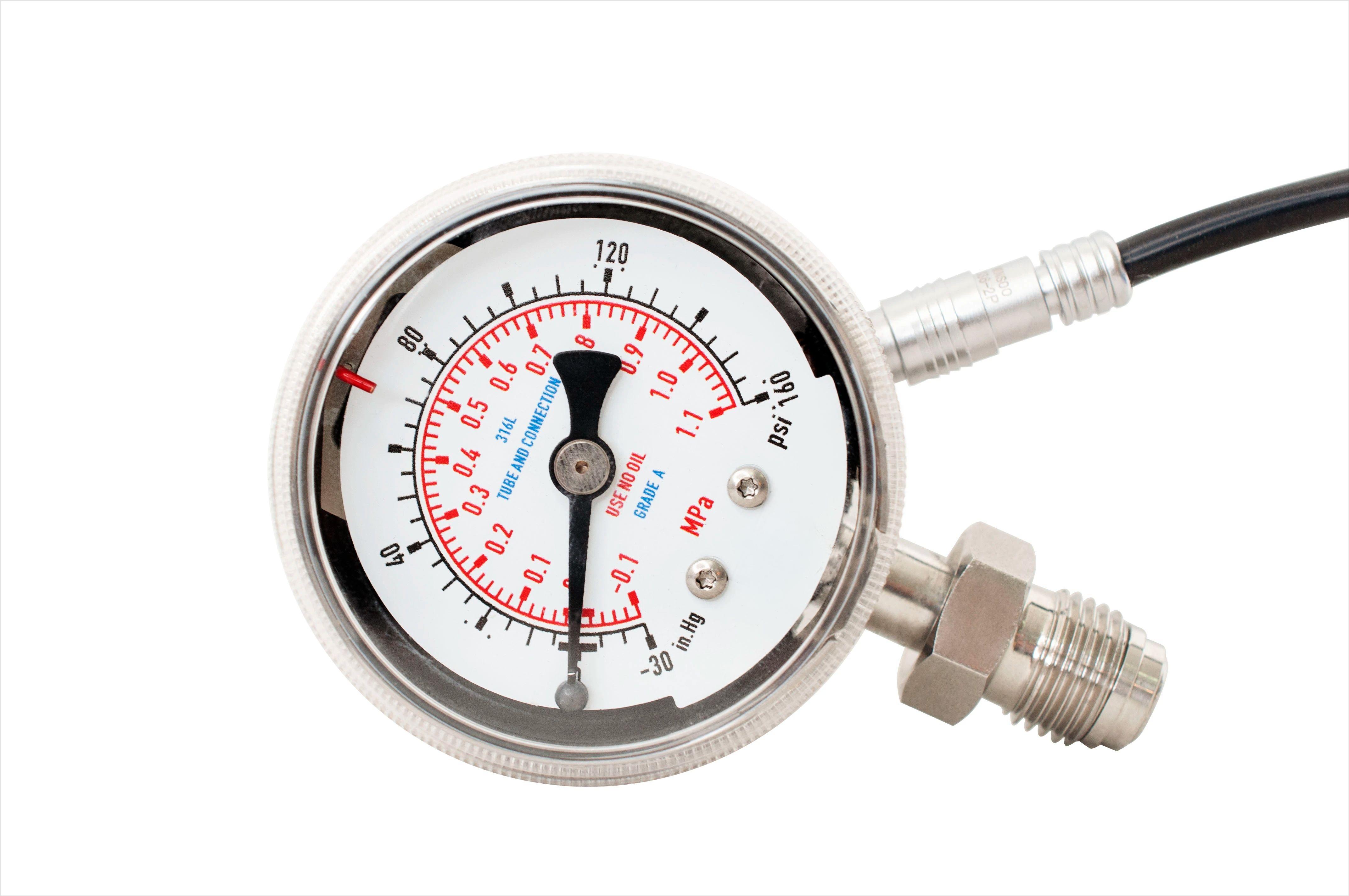

The surface finish of the joint part is less than or equal to 0.25uM, the internal surface finish of the C-tube is less than or equal to 0.4uM, the 316L material EP-S grade,

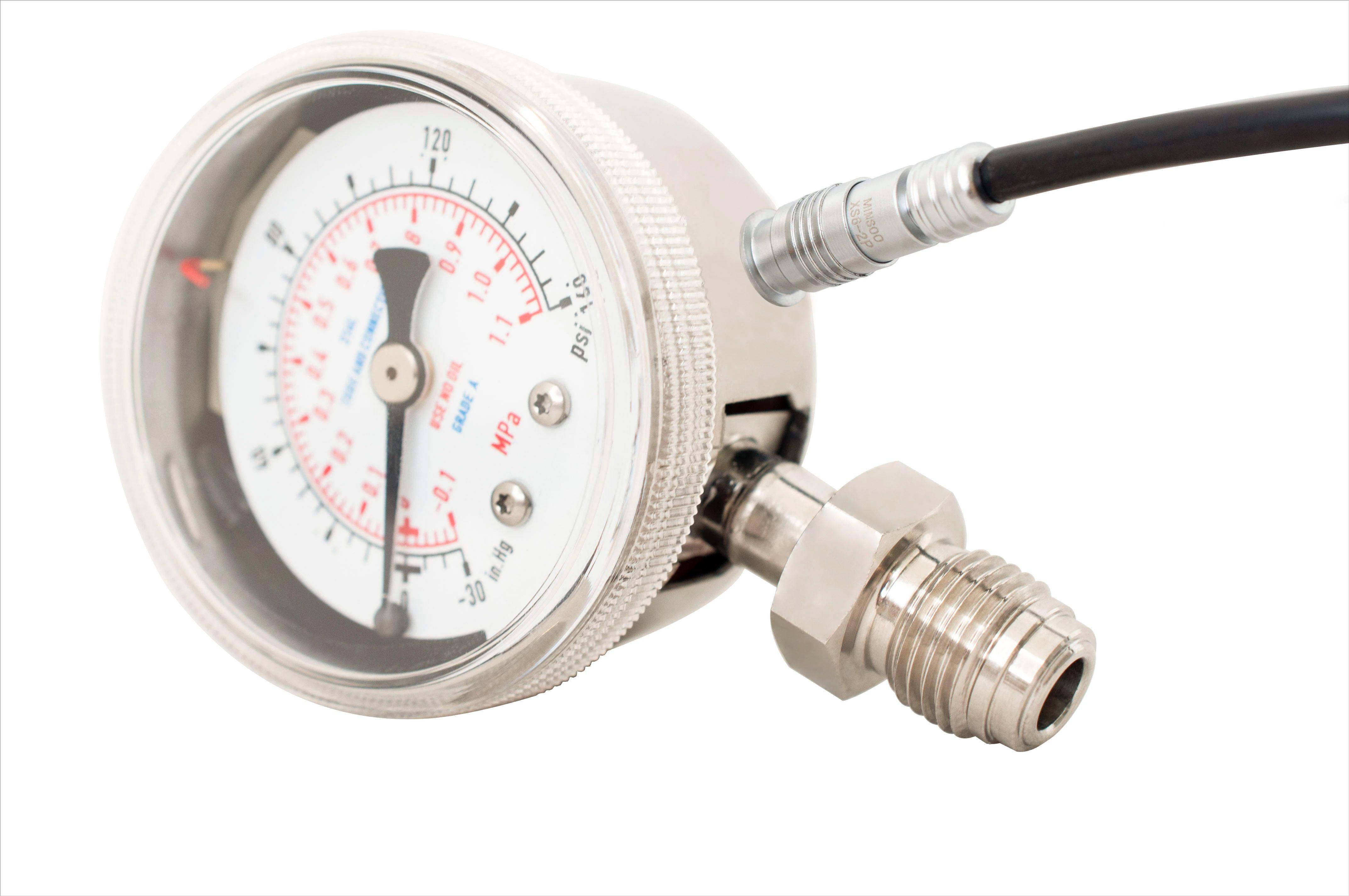

The surface finish of the joint part is less than or equal to 0.25uM, the internal surface finish of the C-tube is less than or equal to 0.25uM, 316L material EP-SV grade,

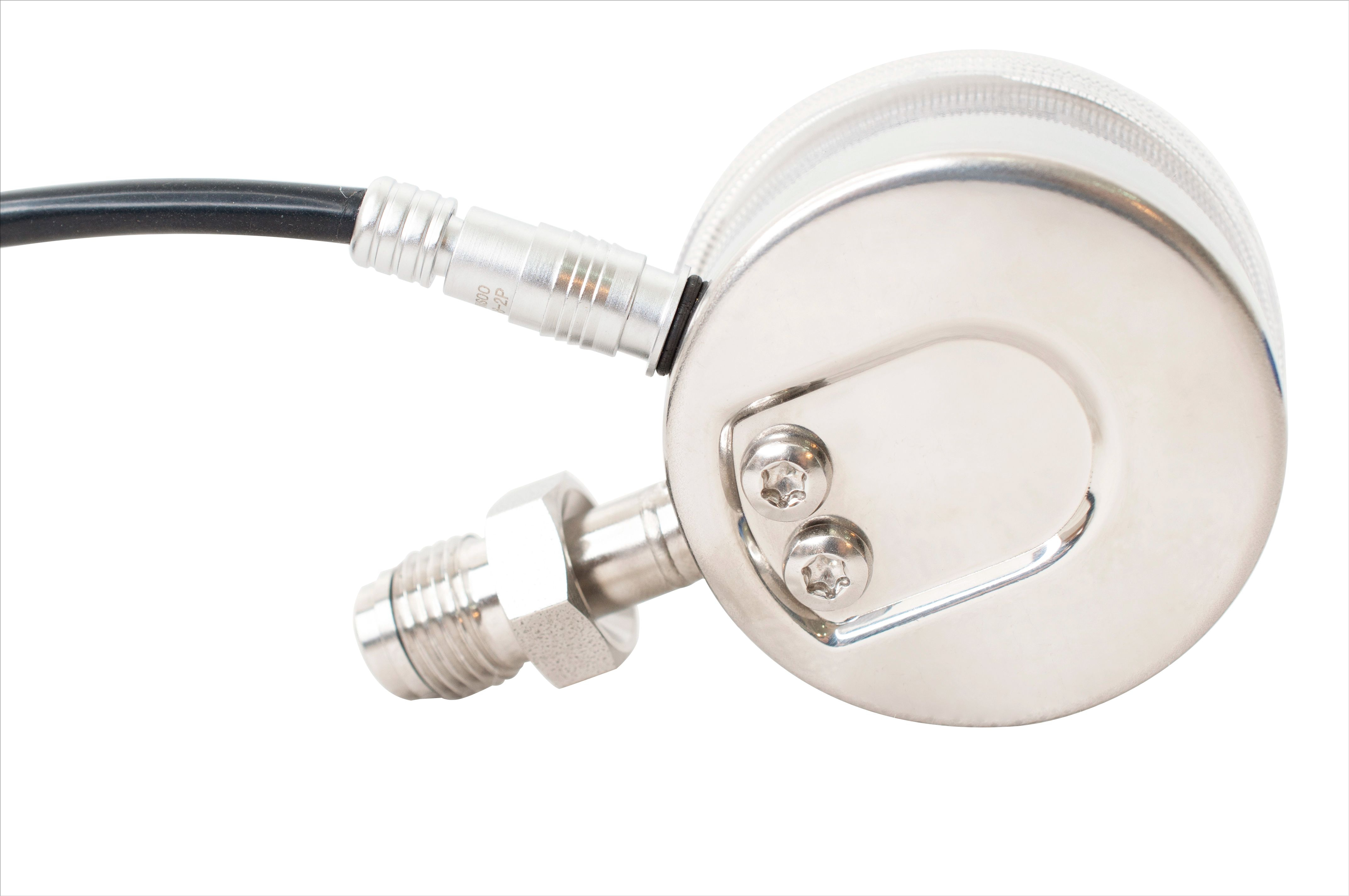

The surface finish of the joint part is less than or equal to 0.25uM, the internal surface finish of the C-tube is less than or equal to 0.25uM, VIM-VAR material,
50MM径向 EP高纯UHP电接点压力表 2.5FS 全量程
径向全不锈钢洁净电接点压力表
产品型号:YXC-50H
仪表精度:2/1/2
外壳材质:304不锈钢
接头材质:316L不锈钢EP级
表盘直径:50mm
IP 等级:IP54
超压能力:125%满量程后可回零
环境温度:-40℃~+80°C
EP-A级高纯UHP电接点压力表
接头部分表面光洁度小于等于0.25uM，C型管内部表面光洁度小于等于0.4uM，316L材质EP-S级，
接头部分表面光洁度小于等于0.25uM，C型管内部表面光洁度小于等于0.25uM，316L材质EP-SV级，
接头部分表面光洁度小于等于0.25uM，C型管内部表面光洁度小于等于0.25uM，VIM-VAR材质，
