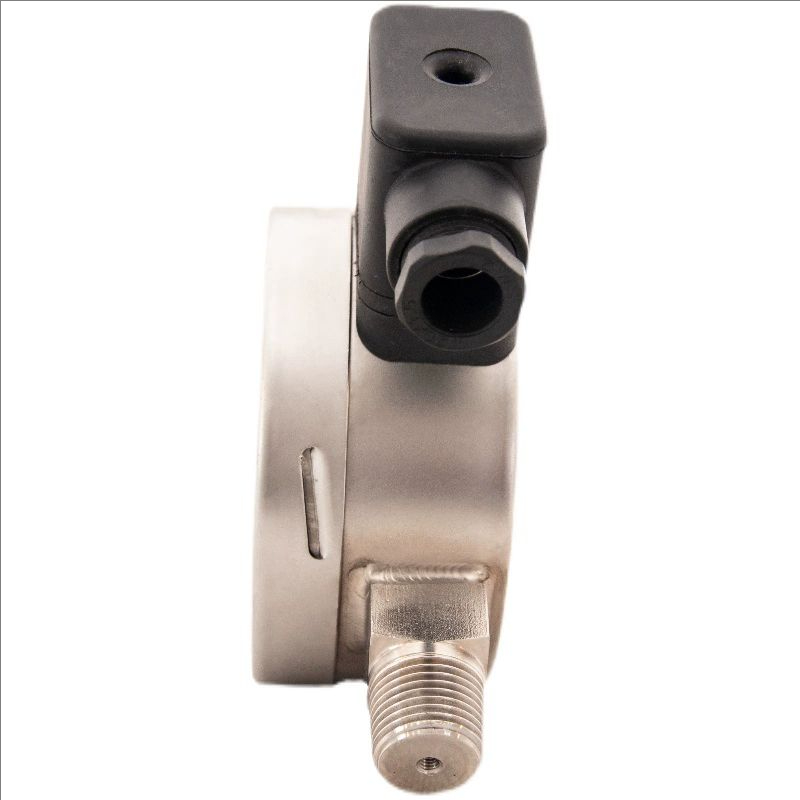

Radially mounted all stainless steel pointer transmitter

Radially mounted all stainless steel pointer transmitter

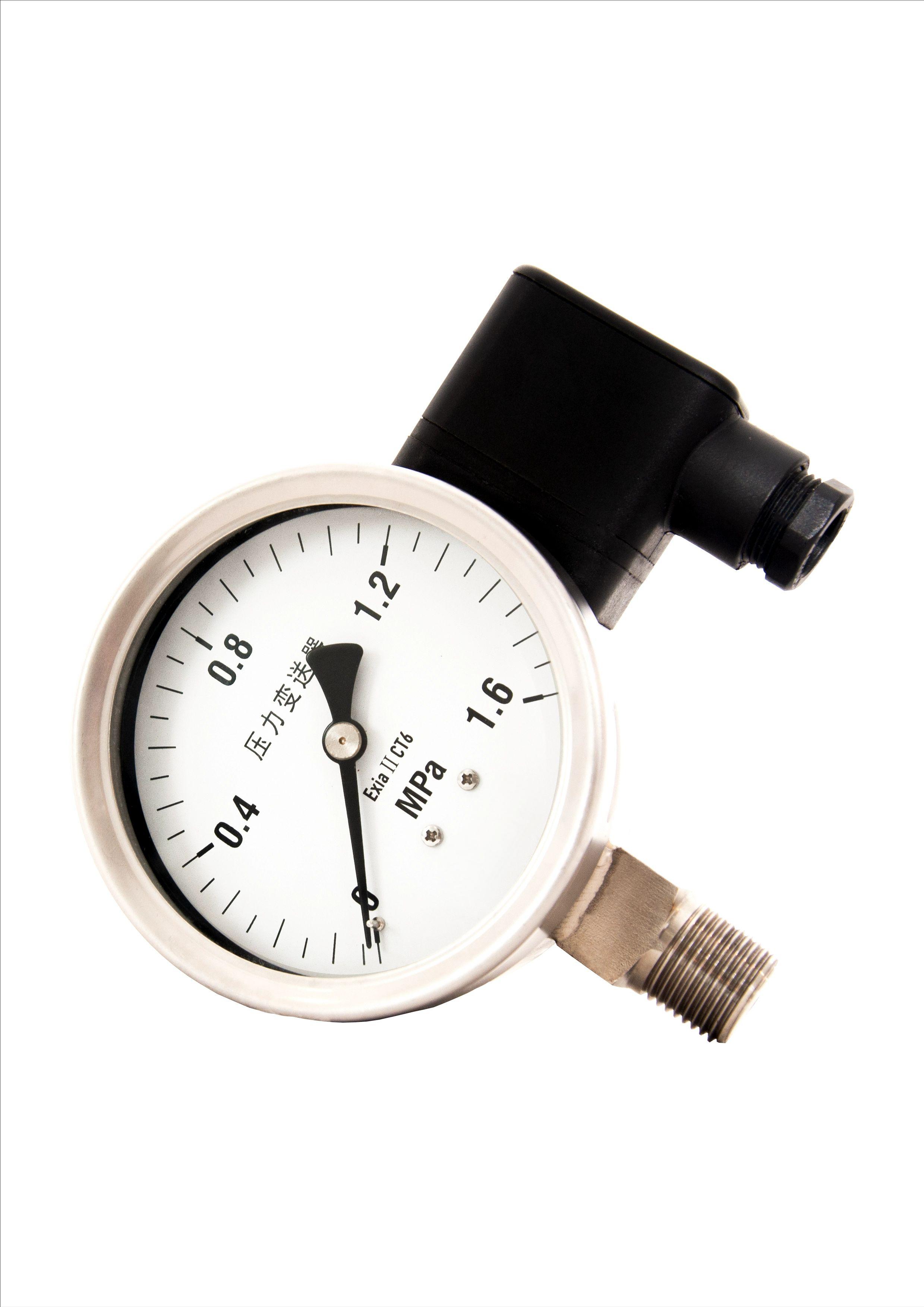

100MM in situ display pressure transmitter full range 4~20mA output

Signal output :4~20mA output
Product model :YXZ-100H
Instrument accuracy: 1.6/1.OF.S.
Shell material :304/316L stainless steel
Connector material :304/316L stainless steel
Dial diameter :100mm
IP Class :IP65
Overpressure capacity :125% full scale can return to zero
Ambient temperature :-40℃~+60°C
Connector: G1/2,M20*1.5

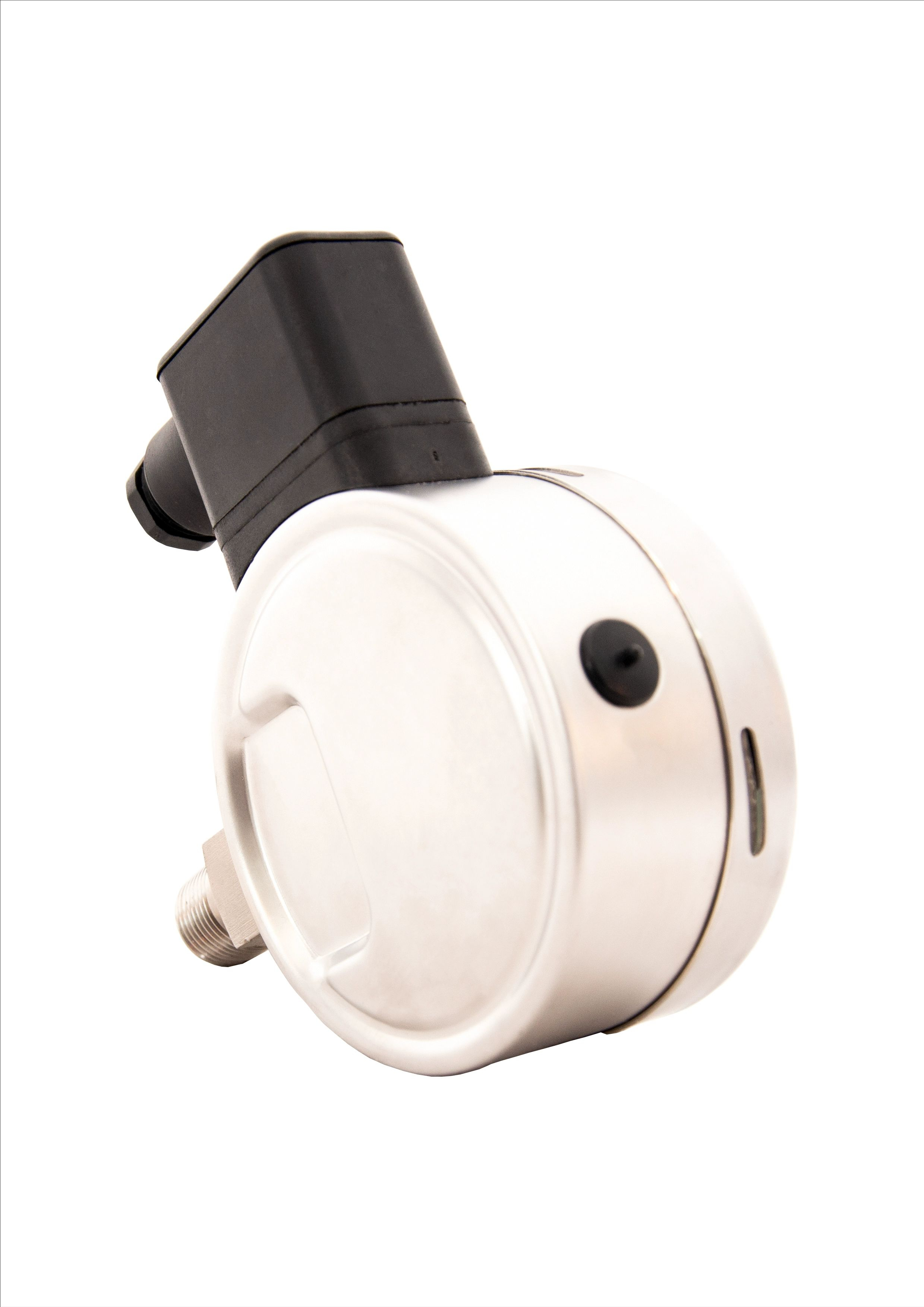

all stainless steel pointer pressure transmitter
UV HD printed dial with in-place display pressure transmitter
Perspex table shows pressure transmitter in place

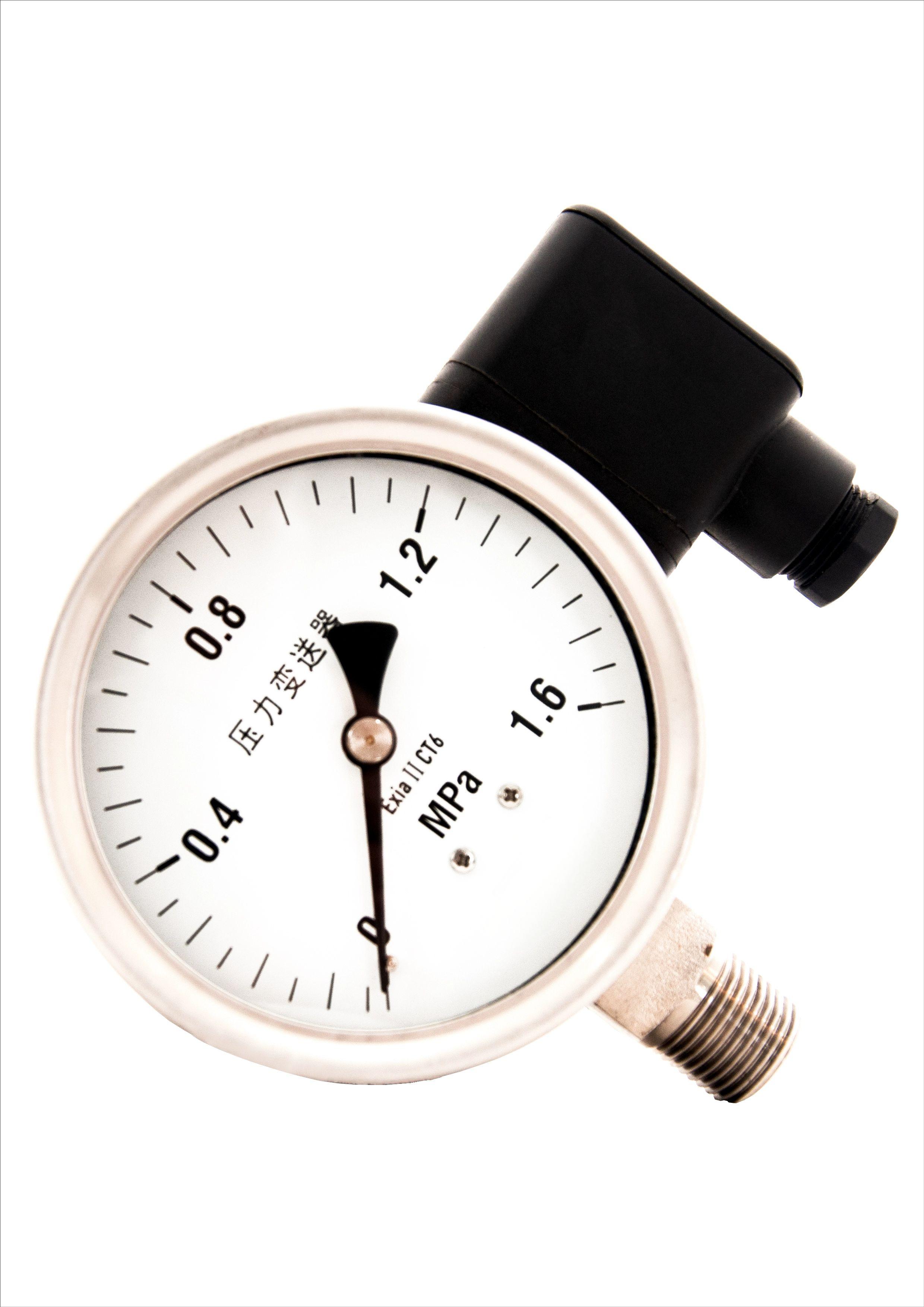

The 4-20mA signal output shows the pressure transmitter in place
The pressure change drives the elastic element and then the pressure value is indicated by the precision movement to display the pressure transmitter in place
304/316L stainless steel housing in place display pressure transmitter
Electrical contact signal output accuracy 0.5F.S. Pressure transmitter in situ display

径向安装全不锈钢指针变送器
100MM 就地显示压力变送器 全量程 4~20mA输出

信号输出:4~20mA输出
产品型号:YXZ-100H
仪表精度:1.6/1. OF. S.
外壳材质:304/316L不锈钢
接头材质:304/316L不锈钢
表盘直径:100mm
IP 等级:IP65
超压能力:125%满量程后可回零
环境温度:-40℃~+60°C
接头：G1/2,M20*1.5高清表盘全不锈钢指针压力变送器
UV 高清印刷表盘就地显示压力变送器
有机玻璃表蒙就地显示压力变送器
4-20mA信号输出就地显示压力变送器
压力变化带动弹性元件再通过精密机芯指示压力值就地显示压力变送器
304/316L不锈钢外壳就地显示压力变送器
电接点信号输出精度0.5F.S.就地显示压力变送器
