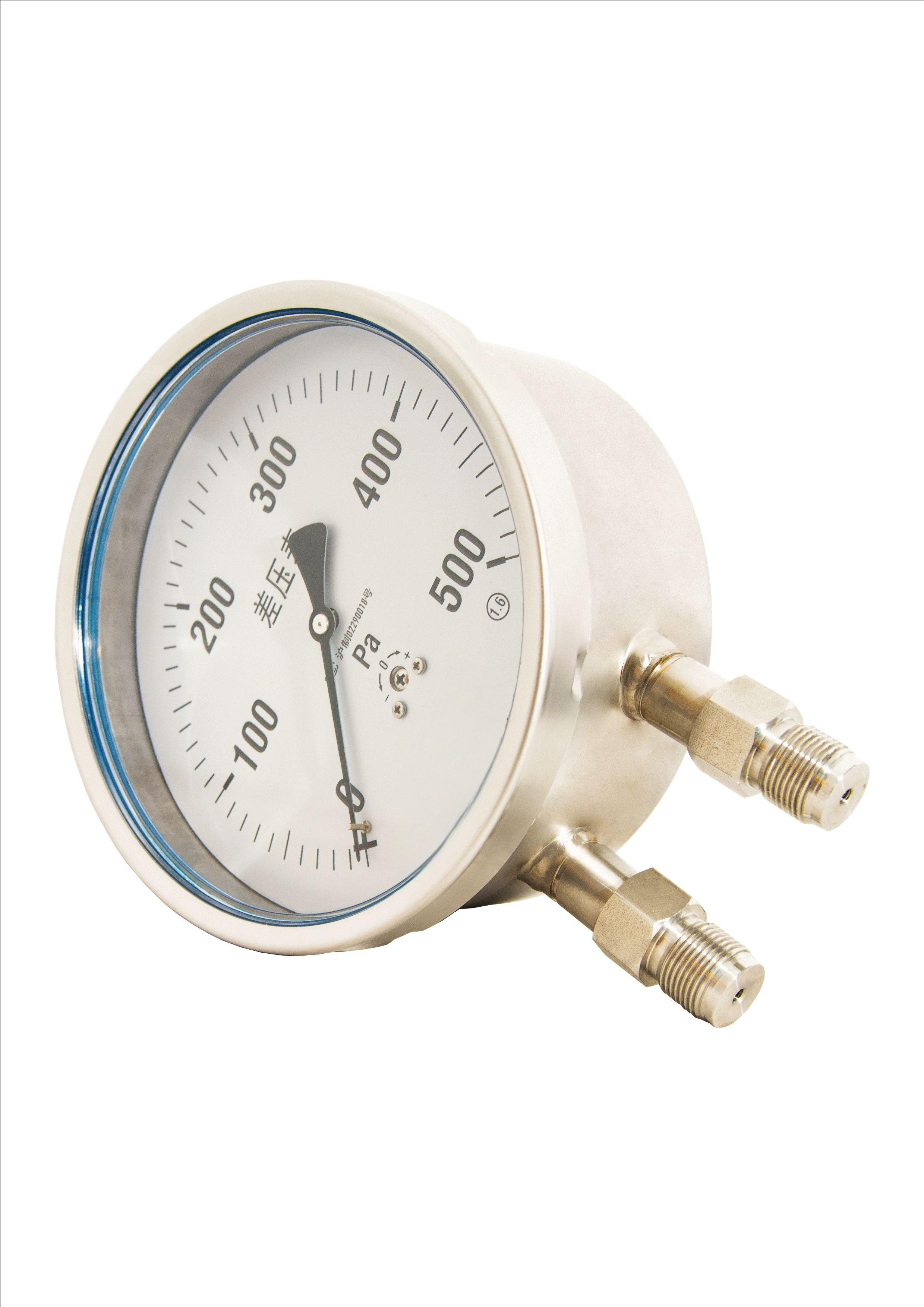

Radial 100/150/200MM all-steel double-tube differential pressure gauge, accuracy 1.6FS
0~10Kpa 304 stainless steel double-tube differential pressure gauge,
0~16Kpa 304 stainless steel double-tube differential pressure gauge,
0~25Kpa 304 stainless steel double-tube differential pressure gauge,
0~40Kpa 304 stainless steel double-tube differential pressure gauge,
0~60Kpa 304 stainless steel double-tube differential pressure gauge,
0~100Kpa 304 stainless steel double-tube differential pressure gauge,
0~0.16Mpa 304 stainless steel double-tube differential pressure gauge,
0~0.25Mpa 304 stainless steel double-tube differential pressure gauge,
0~0.4Mpa 304 stainless steel double-tube differential pressure gauge,
0~0.6Mpa 304 stainless steel double-tube differential pressure gauge,
0~1.6Mpa 304 stainless steel double-tube differential pressure gauge,
0~2.5Mpa 304 stainless steel double tube differential pressure meter,
316L stainless steel liquid contact double tube differential pressure meter,
Product model: YCF-200H
Instrument accuracy: 1.6F.S.
Case material: 304/316L stainless steel
Connector material: 304/316L stainless steel
Dial diameter: 200mm, 100mm, 150mm
IP level: IP65
Overpressure capability: 125% full scale can be returned to zero
Ambient temperature: -40℃~+60°C
Differential pressure measurement double tube differential pressure meter manufacturer，

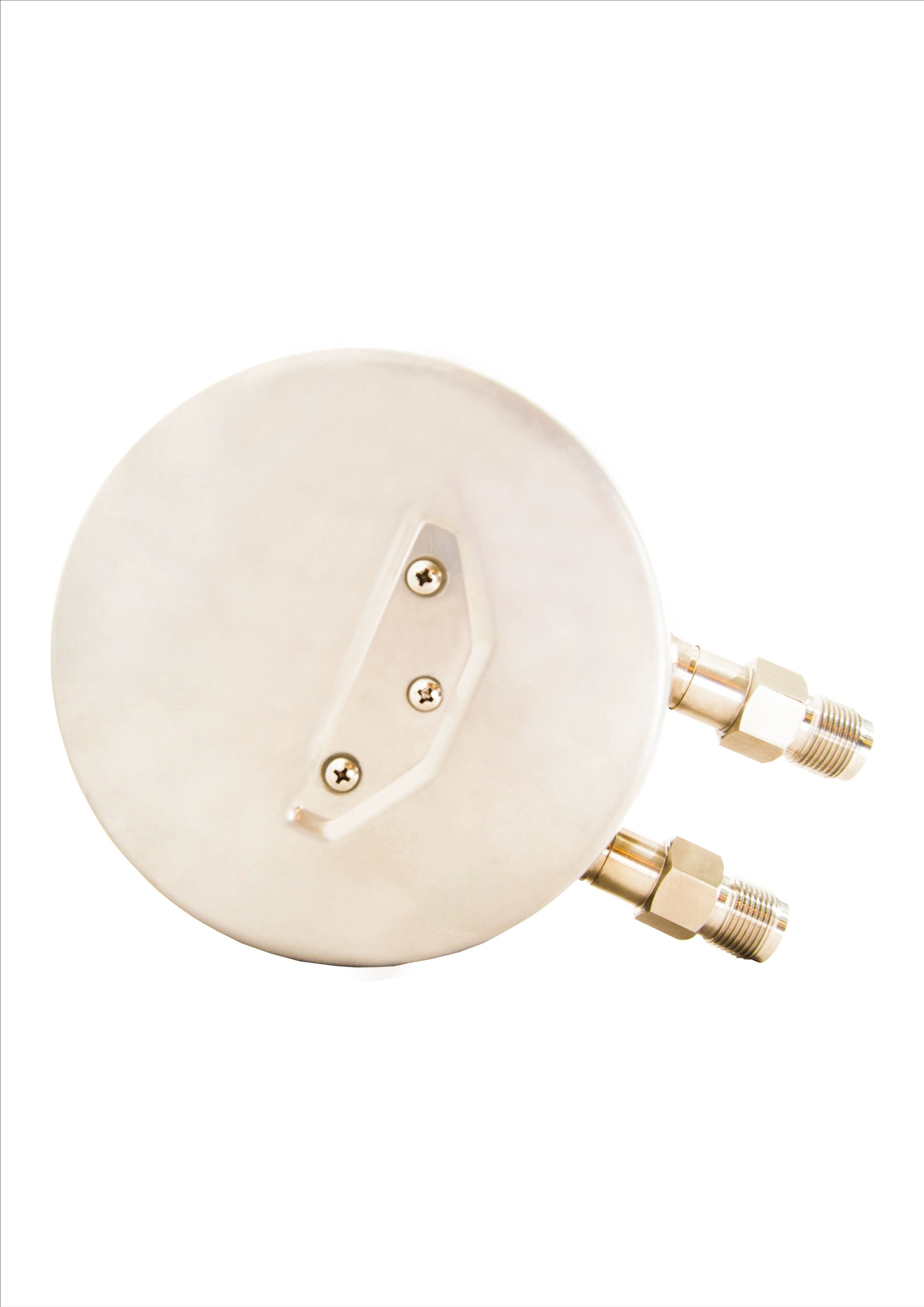

Accuracy level 1.6F.S. double tube differential pressure gauge,
Adjustable zero device all-steel double tube differential pressure gauge,
Stainless steel connector M20*1.5G1/2 all-steel double tube differential pressure gauge,

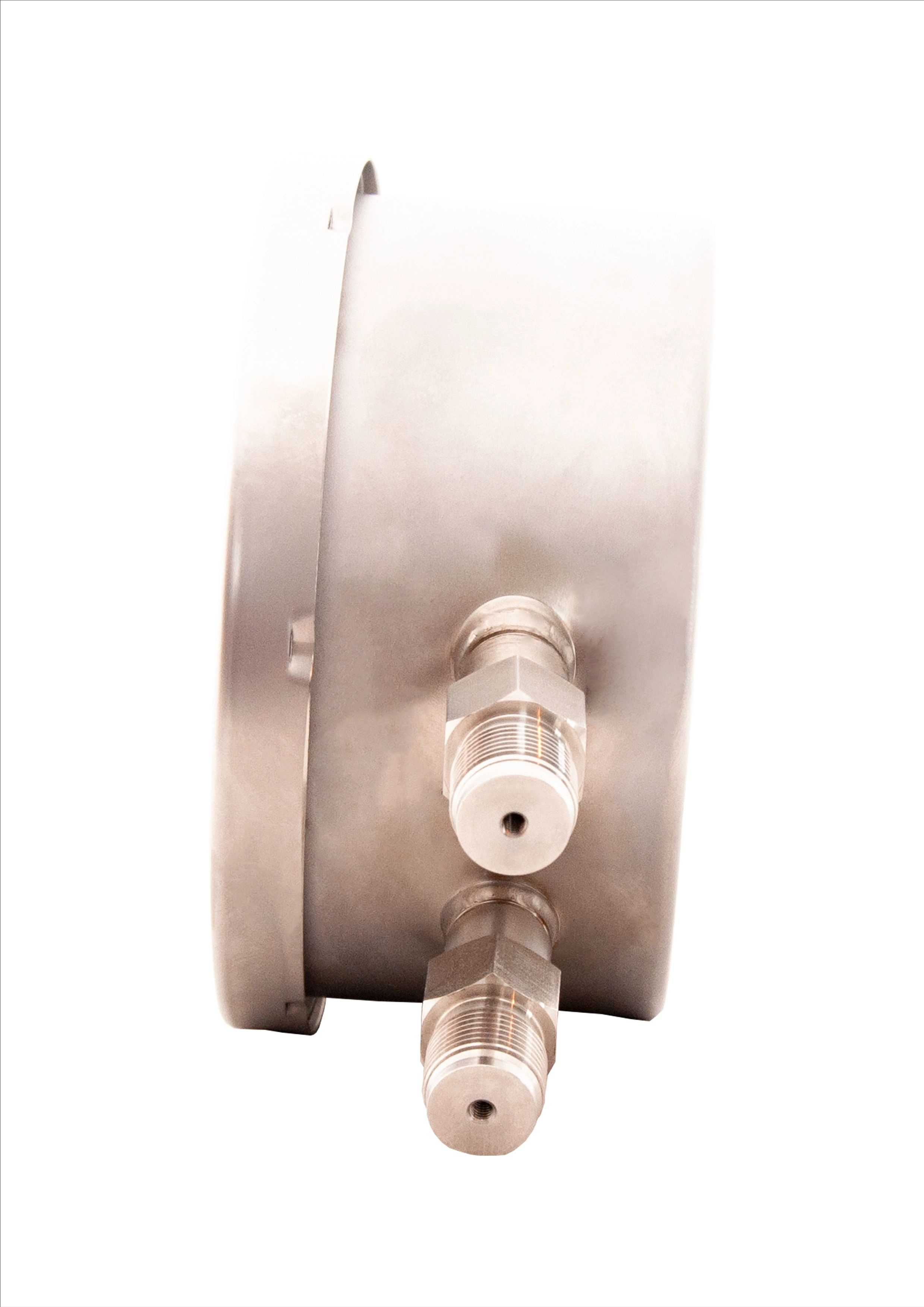

Dual pressure measuring cavity differential pressure measurement all-steel double tube differential pressure gauge,
304/316L stainless steel shell double tube differential pressure gauge
径向 100/150/200MM 全钢双管差压表 精度1.6FS
0~10Kpa 304不锈钢双管差压表，
0~16Kpa 304不锈钢双管差压表，
0~25Kpa 304不锈钢双管差压仪表，
0~40Kpa 304不锈钢双管差压表，
0~60Kpa 304不锈钢双管差压表，
0~100Kpa 304不锈钢双管差压仪表，
0~0.16Mpa 304不锈钢双管差压表，
0~0.25Mpa 304不锈钢双管差压表，
0~0.4Mpa 304不锈钢双管差压表，
0~0.6Mpa 304不锈钢双管差压表，
0~1.6Mpa 304不锈钢双管差压仪表，
0~2.5Mpa 304不锈钢双管差压仪表，
316L不锈钢接液双管式差压表，
产品型号:YCF-200H
仪表精度:1.6F.S.
外壳材质:304/316L不锈钢
接头材质:304/316L不锈钢
表盘直径:200mm,100mm,150mm
IP 等级:IP65
超压能力:125%满量程后可回零
环境温度:-40℃~+60°C
差压测量双管式差压表厂家
精度等级 1.6F.S.双管式差压表，
可调零装置全钢双管差压表，
不锈钢接头M20*1.5G1/2全钢双管差压表，
双测压腔差压测量全钢双管差压表，
304/316L不锈钢外壳双管差压表
