Maanshan eagle eye Instrument Co.,Ltd    YQD-6 Nitrogen pressure reducing valve Pressure regulator Pressure regulator all copper quantitative tools wholesale

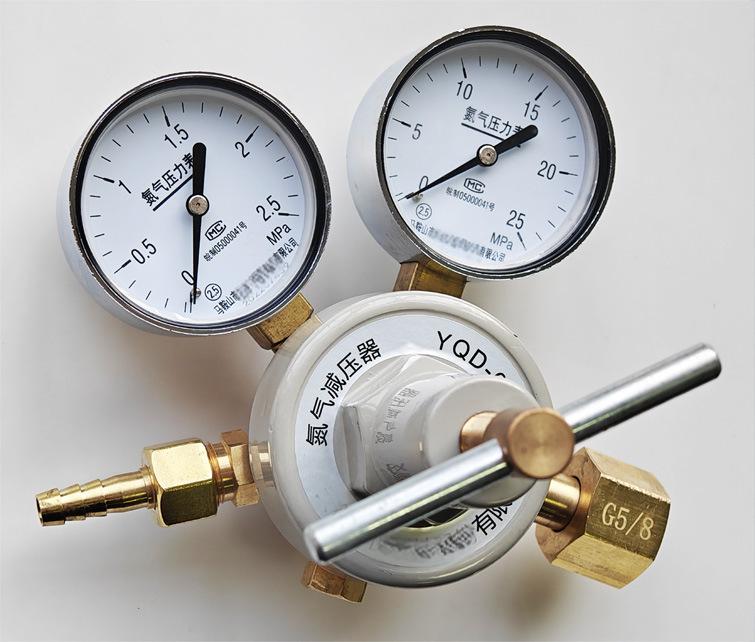

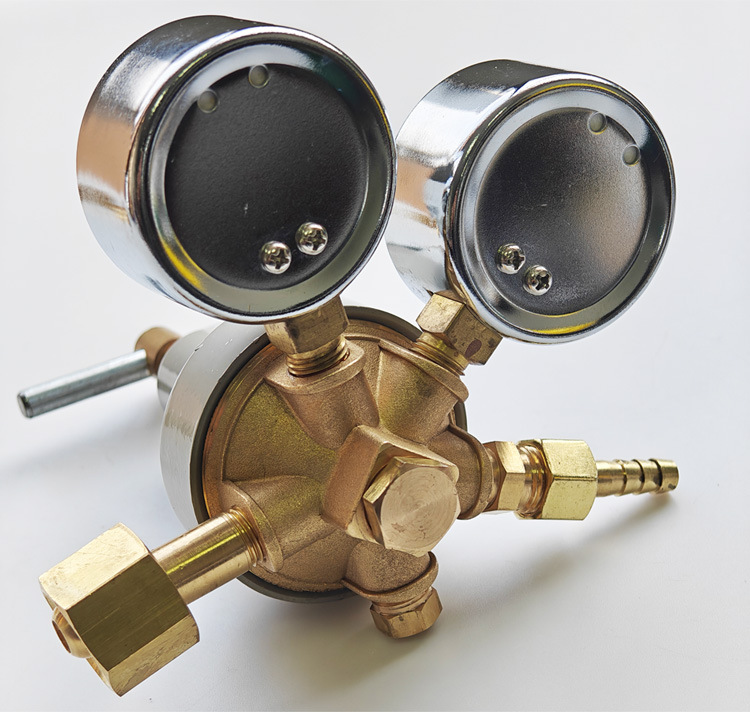

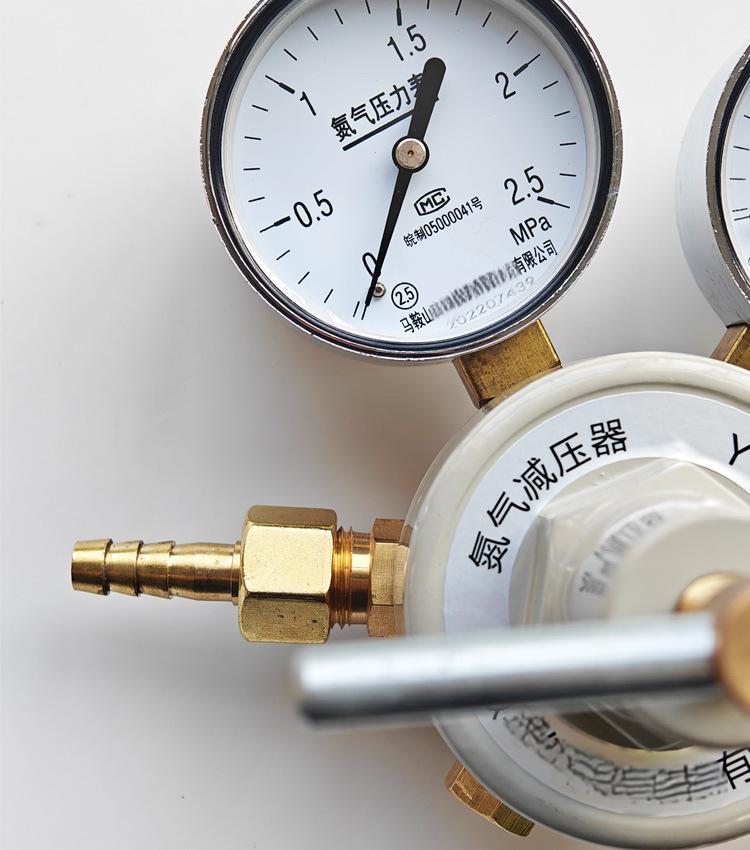

YQD-6 Nitrogen pressure reducing valve Pressure regulator Pressure regulator all copper quantitative tools wholesale

Model: YQD-06

Measuring range: 0-1.25 (MPa)

Applicable medium: nitrogen

Rated outlet pressure: 1.25 (MPa)

Name: Nitrogen pressure reducer

Material: Copper

Model :YQD-06

Net weight :1.2KG

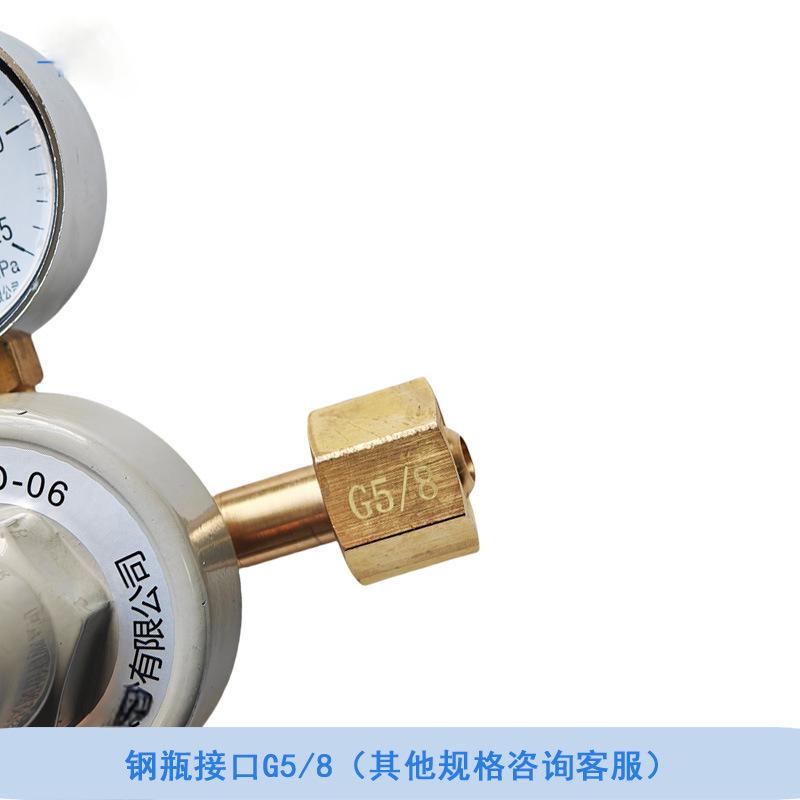

Inlet connection thread: W5/8

Outlet connection thread: M8 hose
product list
Mail us

product description

Nitrogen pressure reducing valve Pressure regulator Pressure regulator all copper quantitative tools wholesale YQD-6



Model: YQD-06

Measuring range: 0-1.25 (MPa)

Applicable medium: nitrogen

Rated outlet pressure: 1.25 (MPa)

Name: Nitrogen pressure reducer

Material: Copper

Model :YQD-06

Net weight :1.2KG

Inlet connection thread: W5/8

Outlet connection thread: M8 hose



Features: The high-pressure nitrogen is reduced to low-pressure nitrogen, and the output gas pressure and flow rate are kept stable, suitable for various occasions that need to stabilize low-pressure nitrogen. The working principle of the nitrogen pressure reducer is to reduce the higher pressure of nitrogen stored in the cylinder to the required working pressure by regulating the device, and keep this pressure stable. Specifically, when the high-pressure nitrogen enters the pressure reducer, the nitrogen gradually flows out by adjusting the opening of the valve, and at the same time, the opening of the opening and closing parts is adjusted by the role of the pressure behind the valve to keep the output pressure stable
