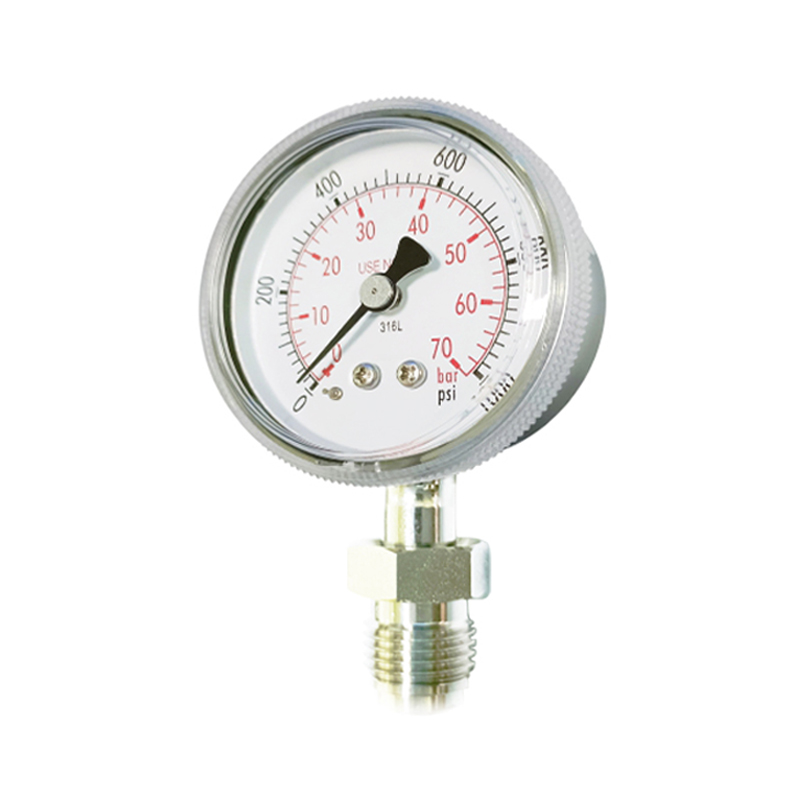

High purity pressure gauge(HPG,H- pressure)-VCR1/4" Female/Male Face Seal Swivel/ BA grade

High purity pressure gauge(HPG,H- pressure)-VCR1/4" Female/Male Face Seal Swivel/ BA grade

Nominal Diameter (mm) : 50

0-1000~4000psi

Displacement (mm) : 1.1~1.4

Accuracy (%) : ASME 40.100-2013 GradeA

高純壓力表(高壓)-VCR1/4"内端面/外端面密封旋轉接頭/BA級

High purity pressure gauge(HPG,H- pressure)-VCR1/4" Female/Male Face Seal Swivel/ BA grade型號

Model:YYHPG50-VP/AP-G-L/C

説明 Specifications

All parts are treated with ultrasonic purified water

Welding is performed in an oxygen-free vacuum

chamber protected by high purity argon gas

The product has passed strict pressure and air

tightness testing, up to 1X10-9Pa·m3/s

Suitable for the ultra - high purity gas distribution

system used in a semiconductor , electronic,medical,biotechnology and pharmaceutical industry

公稱直徑 Nominal Diameter(mm):50

壓力范圍 Pressure Range: 0-1000~4000psi

位移 Displacement(mm):1.1~1.4

精度等級 Accuracy(%):ASME40.100-2013 GradeA

氣路表面粗糙度 Gas path surface finish

<16Rauin(Internal)

潔淨度等級 Cleanliness

IEST-STD-CC1246 Level 100 R1

(Exceeds ASME B40.100 Level lV)

負载能力 Load Capacity

Stable:75%FS

Fluctuating pressure : 66%FS

Short time:100%FS

工作環境 Working Environment

AmbientTemperature -40°C~65C

Medium max.

Relative humidity

+100'C

50%

溫度影響TemperatureInfluence

Accuracy attemperature above and below the

reference temperature(20°C) will be effected

by approximately ±0.4% per 10°C of full scale

標準配置 Standard Configuration

螺紋連接 Connection

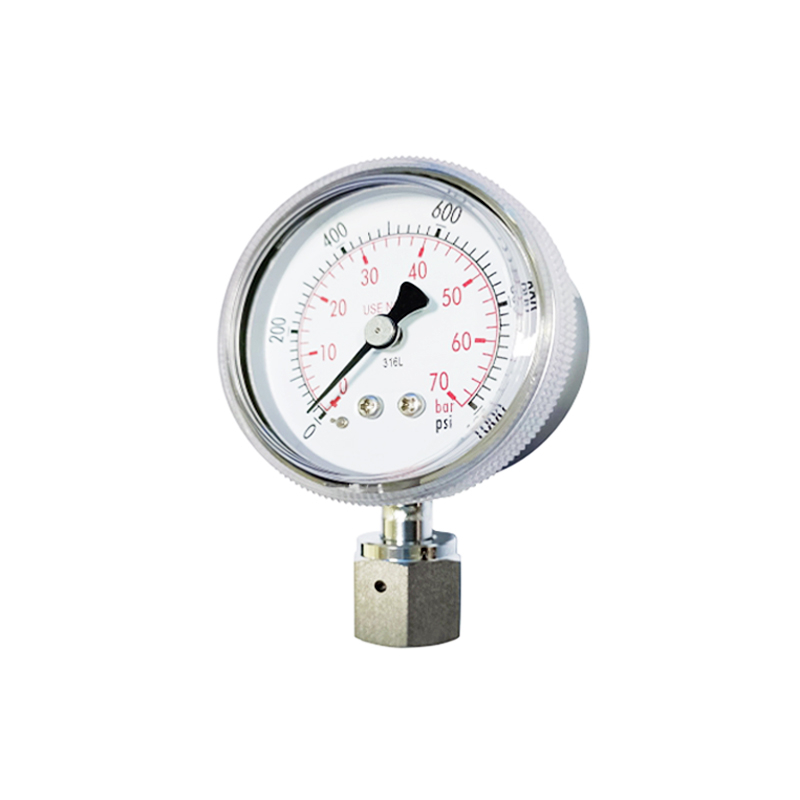

VCR1/4" Female Face Seal Swivel

316LSS

VCR tubes and fittings

316L SS

(available upon request)

安装方式 Fitting

Lower Mount (L)

Center Back Mount(C)

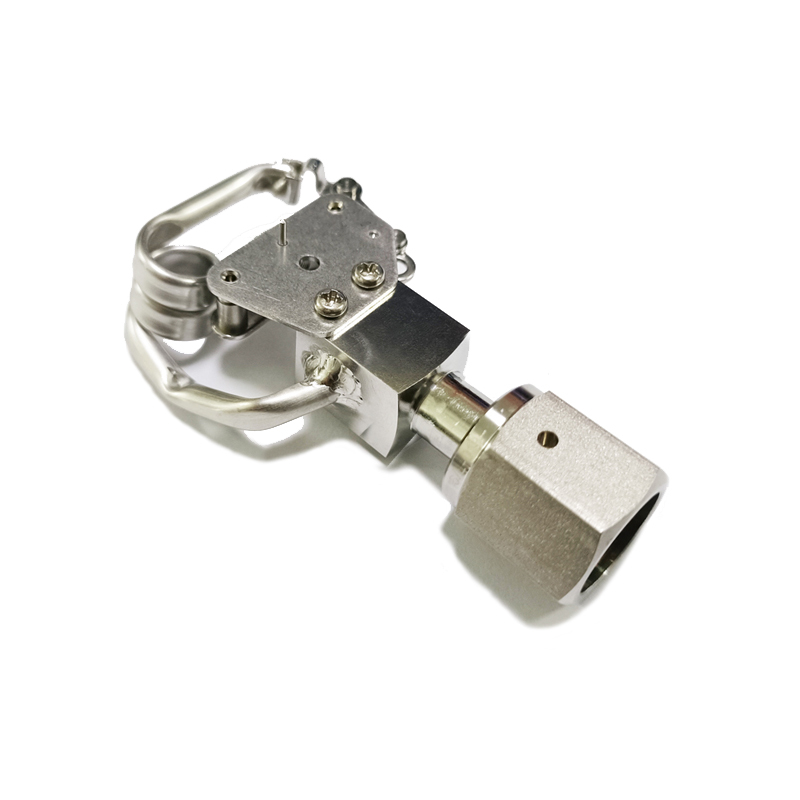

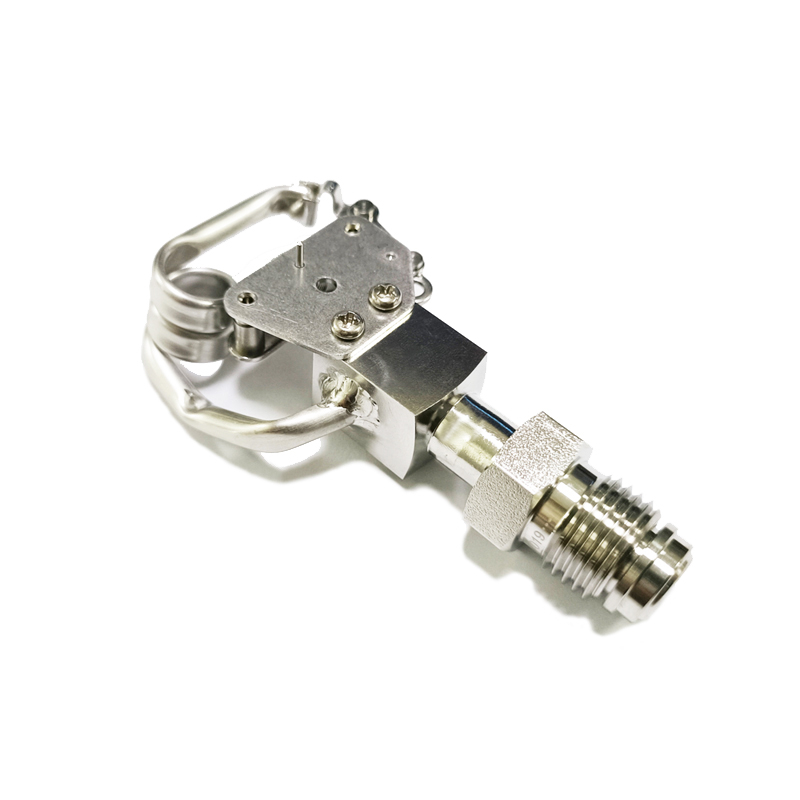

測量元件 Measuring Element

Capillary tube:316LSS

Movement :304 SS

表盤 Dial:Aluminum

指針 Pointer:Aluminum

底殼 Case:304 SS (electrolytic polishing)

表蒙 Window:Polycarbonate(PC)
