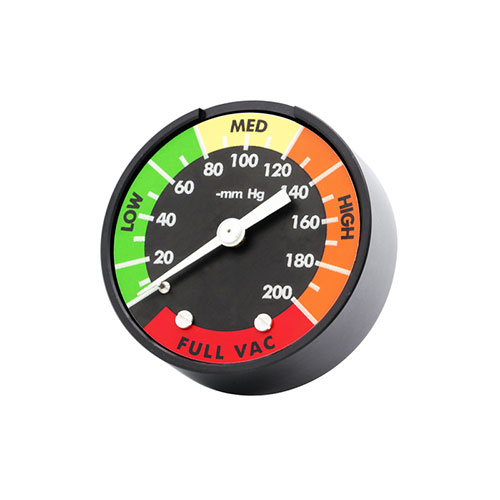

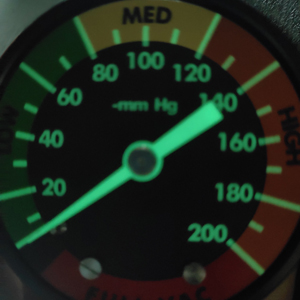

Diaphragm Capsule Pressure Gauge(CPG)-Medical Type (Night Vision)

Diaphragm Capsule Pressure Gauge-Medical Type (Night Vision);

Size : ∅55 mm;

Displacement: 1.1-1 .4mm;

Accuracy Class(%): 2-1-2

膜盒壓力表-醫用型(夜視)

Diaphragm Capsule Pressure Gauge(CPG)-Medical Type (Night Vision)

型號 Model:YYEY-60

説明 Specifications

Micro-pressure pneumatic system

Full safety pattern conforms to En837

The case has good wear resistance,

heat resistance and impact resistance

Suitable for measuring copper alloy non-corrosive

gas micro-pressure and vacuum measurement

公稱直徑 Nominal Diameter(mm):60

表盤直徑 Dial Size(mm):55

壓力范 Pressure Range---45A -200~0mmHg

位移 Displacement(mm):1.1~1.4

精度等級 Accuracy(%):2-1-2

標準配置 Standard Configuration

螺紋連接 Connection

Brass

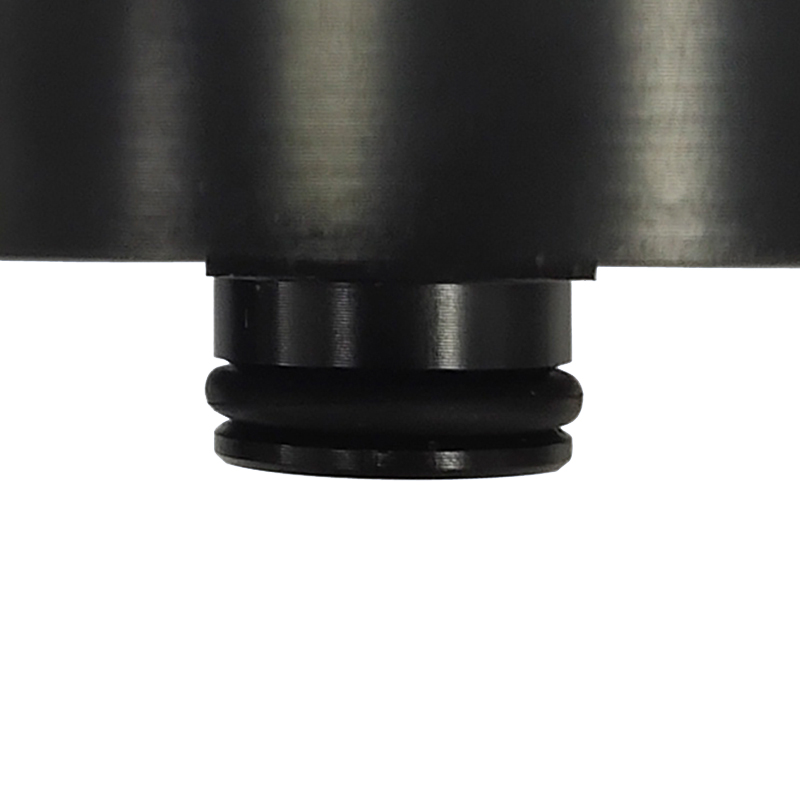

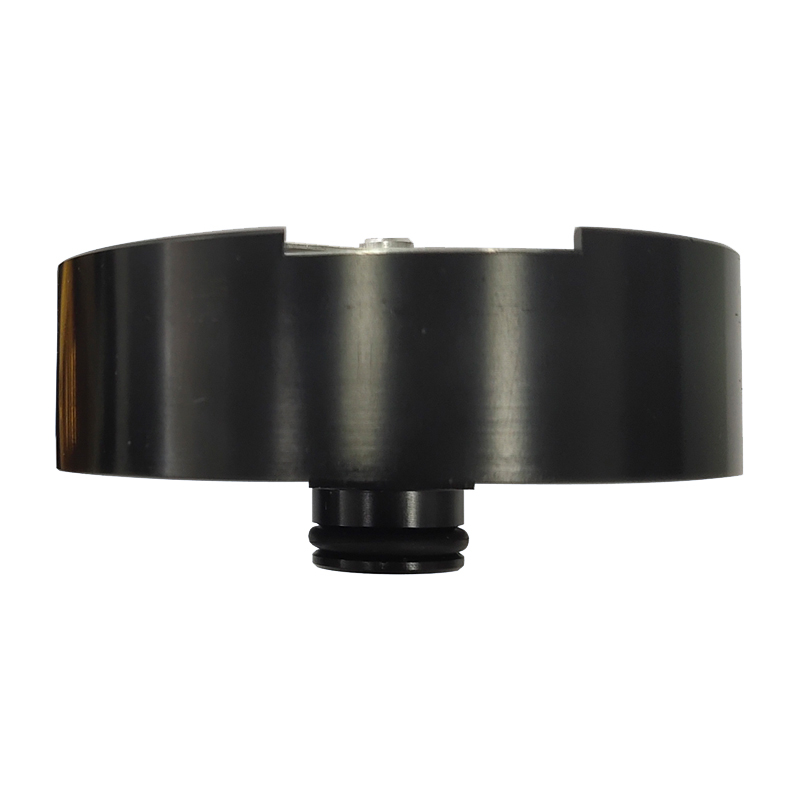

Threadless (Sealing ring connection)

安装方式 Fitting

Lower Mount (L)

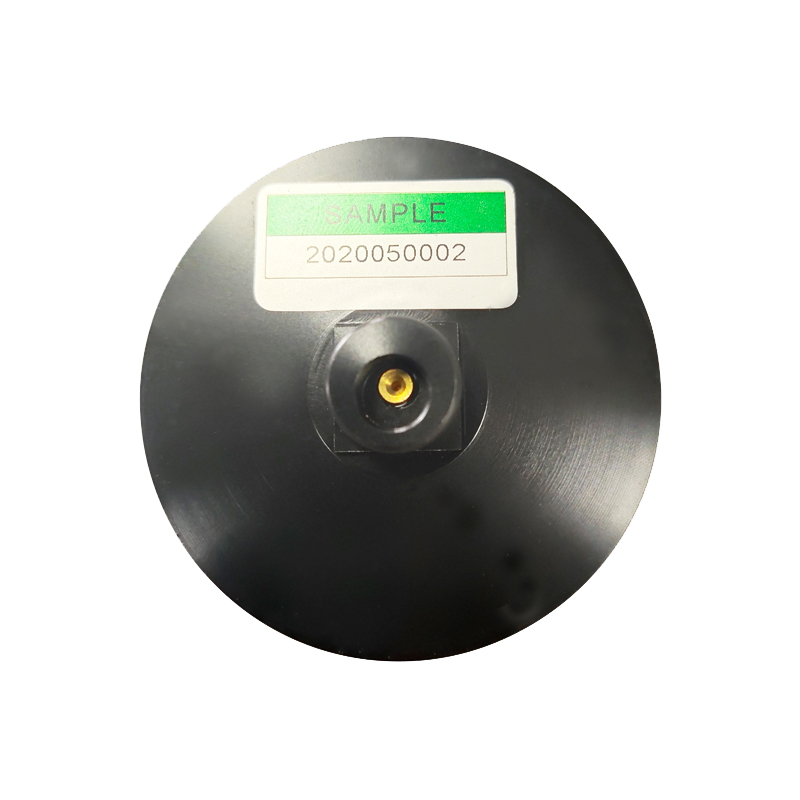

Center Back Mount(C)

負載能力 Load Capacity

Static Load ≤ Full Scale

Fluctuating Load ≤90% Full Scale

Overload Safety Value ≤125% Full Scale

工作環境 Working Environment

AmbientTemperature -25°C~55°C

Medium max.

Relative humidity

+55°C

≤80%

溫度影讆 TemperatureInfluence

Accuracy at temperature above and below the

reference temperature(20°C) will be effected

by approximately +0.4% per 10'C of full scale

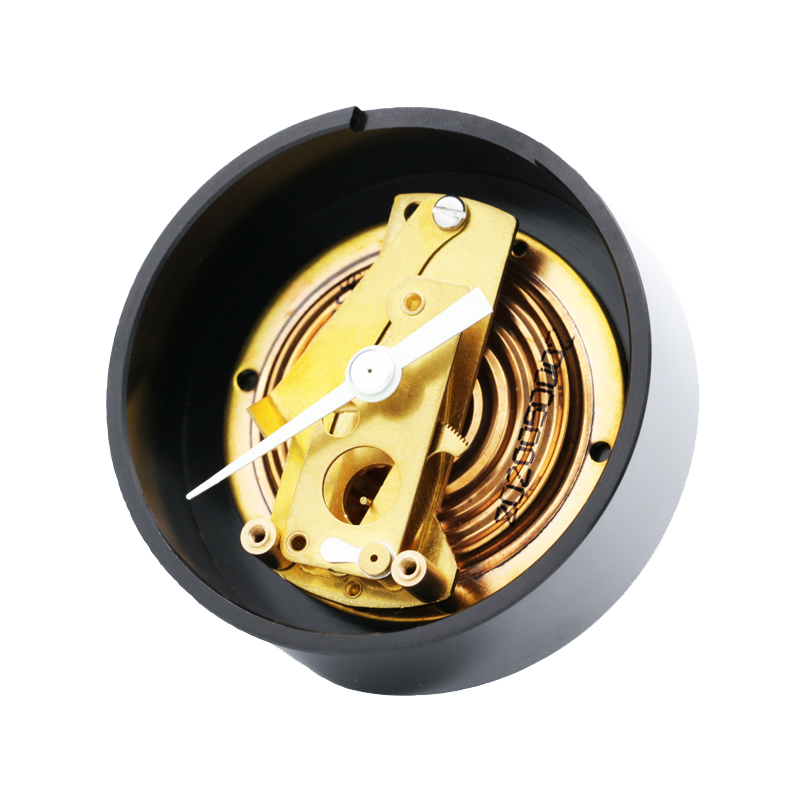

測量元件 Measuring Element

Capsule :Beryllium copper

Movement :Copper alloy

表盤 Dial

Aluminum, style and color available upon request

指針 Pointer:Aluminum, style and color available upon request

表殼 Case:Engineering Plastics-ABS
