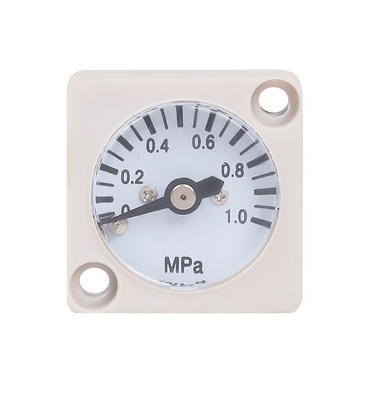

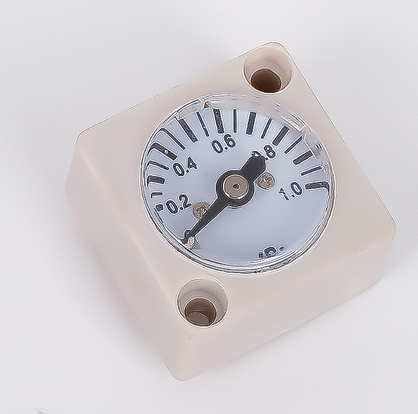

Pressure gauge for pneumatic pressure regulating valve

white square pressure gauge
Accuracy level: 2.5
Model specifications: Y30-010
Connection method: diagonal screw installation
Main material: brass + nylon
Measuring range:0-10bar
Ambient temperature:25°C
Overload pressure: 120%
Nominal diameter:27X27mm
Applicable scenarios: air pressure, oil pressure, water pressure

Product model: Y30 square pressure gauge
Pressure range: 30/60/100/150/160psi; 4/10/12/16bar; 0.4/1.0/1.2/1.6MPa
Accuracy level: Level 2.5 (±2.5%)
Installation dimensions:
1.8 copper base AxBxC=28.3x27.5x15;
YDK type AxBxC=29x27x15.6
YR type AxBxC=28.3x27.5x16;
Plastic base plateAxBxC=28.5x27x161.8

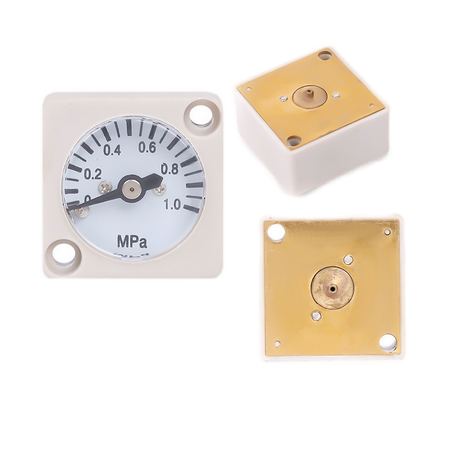

Base plate material:
Brass base plate;
1.0 brass base plate;
1.5 iron galvanized;
2.5 plastic bottom plate
Case color: milky white, black, gray, blue, orange, etc. can be customized
Product accessories: optional: 0-ring: M3 mounting screws

气动调压阀用压力表

产品名称 :白色方形压力表
精度等级 :2.5
型号规格 :Y30-010
联接方式 :对角螺丝安装
主要材质 :黄铜+尼龙
测量范围 :0-10bar
环境温度 :25°C
过载压力 :120%
公称直径 :27X27mm
适用场景 :气压、油压、水压

产品型号:Y30方形压力表
压力量程:30/60/100/150/160psi;4/10/12/16bar;0.4/1.0/1.2/1.6MPa
精度等级:2.5级(±2.5%)
安装尺寸:
1.8铜底AxBxC=28.3x27.5x15;
YDK型AxBxC=29x27x15.6
YR型AxBxC=28.3x27.5x16;
塑料底板AxBxC=28.5x27x161.8
底板材质:
黄铜底板;
1.0黄铜底板;
1.5铁镀彩锌;
2.5塑料底板
表壳颜色:乳白色、黑色、灰色、蓝色、橘红色等可定制
产品配件:可以增选:0型圈:M3安装螺钉
