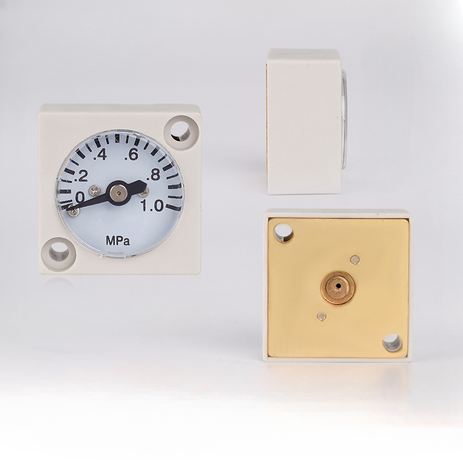

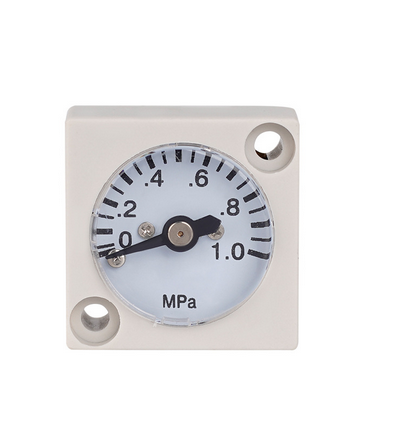

Built-in square air source pressure gauge

Built-in square pressure gauge, air source pressure regulator regulator pressure reducing valve, manufacturer supplies square pressure gauge

Product name: Built-in square air source pressure gauge
Accuracy level: 2.5
Model specifications: MD-QD002
Product size: 27X27MM
Main material:brass
Measuring range:0-1MPa
Ambient temperature:25°C
Case thickness: 15mm
Bottom plate material: 1.8mm brass bottom plate
Applicable scenarios: pressure regulating valve, pneumatic triplex, air source equipment, etc.
Product model: Y30 square pressure gauge.
Pressure range: 30/60/100/150/160psi; 4/10/12/16bar; 0.4/1.0/1.2/1.6MPa
Accuracy level: Level 2.5 (+2.5%)
Installation dimensions:
8 copper base AxBxC=28.3x27.5x15;
YDK type AxBxC=29x27x15.6
(R type AxBxC=28.3x27.5x16;
Plastic base plate AxBxC=28.5x27x16
Base plate material: 8 brass base plate; 1.0 brass base plate; 1.5 iron galvanized; 2.5 plastic base plate
Case color: milky white, black, gray, blue, orange, etc. can be customized
Product accessories: Optional: O-ring; M3 mounting screws

内置方形压力表 气源调压机调减压阀 厂家供应方形压力表

产品名称:内置方形气源压力表
精度等级:2.5
型号规格:MD-QD002
产品尺寸:27X27MM
主要材质:黄铜
测量范围:0-1MPa
环境温度:25°C
表壳厚度:15mm
底板材质:1.8mm黄铜底板
适用场景:调压阀，气动三联件，气源设备等
产品型号:Y30方形压力表.
压力量程:30/60/100/150/160psi;4/10/12/16bar;0.4/1.0/1.2/1.6MPa
精度等级:2.5级(+2.5%)
安装尺寸:
8铜底AxBxC=28.3x27.5x15;
YDK型AxBxC=29x27x15.6
(R型AxBxC=28.3x27.5x16;
塑料底板AxBxC=28.5x27x16
底板材质:8黄铜底板;1.0黄铜底板;1.5铁镀彩锌;2.5塑料底板
表壳颜色:乳白色、黑色、灰色、蓝色、橘红色等可定制
产品配件:可以增选:O型圈;M3安装螺钉
