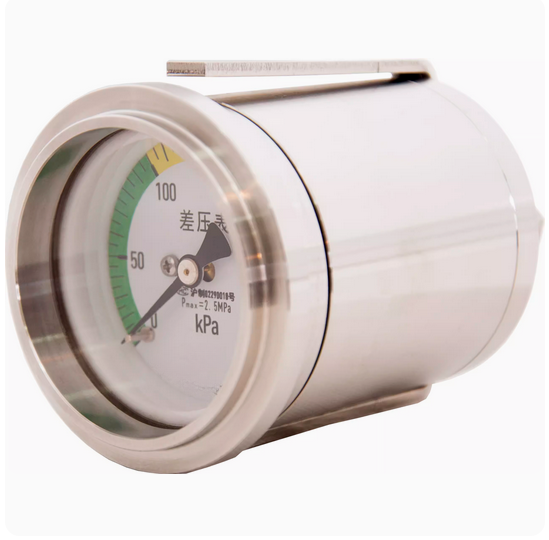

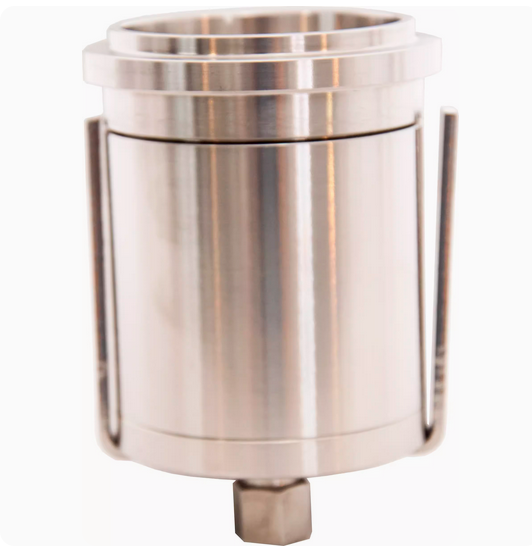

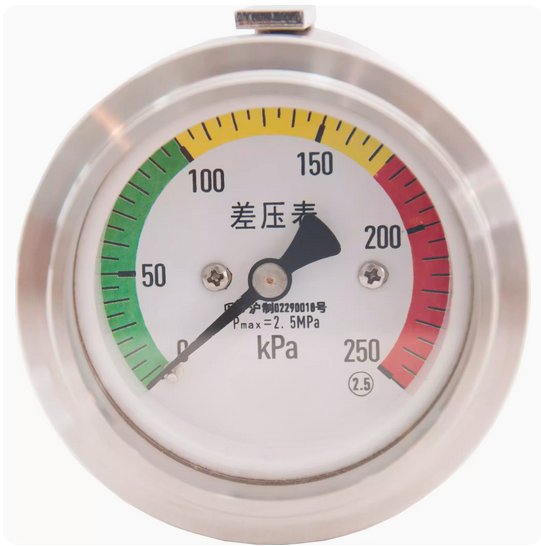

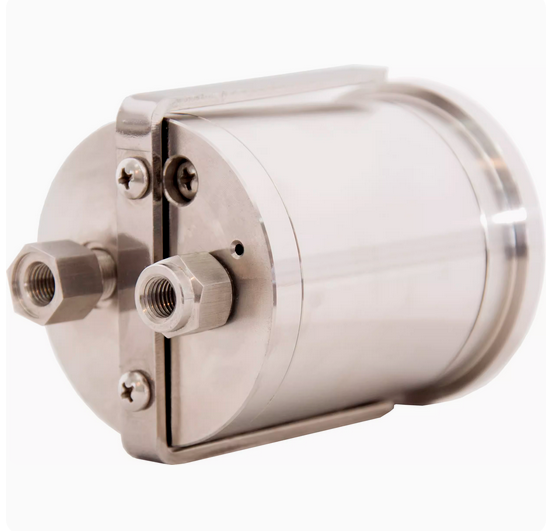

250Kpa differential pressure gauge axial connection all stainless steel embedded differential pressure gauge 63mm
Product model :YCF-63HZ
Instrument accuracy :2.5F.S.
Case material: stainless steel 304
Joint material: Stainless steel 304(optional 316L)
Dial diameter :63mm
IP level :IP65
Overpressure capacity :125% can be returned to zero after full scale
Ambient temperature :-20℃~60℃
UV HD printed dial
Pluggable instrument
Accuracy 2.5F.S.
304 stainless steel housing long life
Traceability of production information
Stainless steel joint :NPT1/4
Double bourden tubes 250Kpa differential pressure gauge axial connection all stainless steel embedded differential pressure gauge 63mm
Differential pressure gauge product parameters:
Product model :YCF-63HZ
Instrument accuracy :2.5F.S.
Case material: stainless steel 304
Joint material: Stainless steel 304(optional 316L)
Dial diameter :63mm
IP level :IP65
Overpressure capacity :125% can be returned to zero after full scale
Ambient temperature :-20℃~60℃
UV HD printed dial
Pluggable instrument
Accuracy 2.5F.S.
304 stainless steel housing long life
Traceability of production information
Stainless steel joint :NPT1/4
Double bellows pressure measuring element
双波纹管 250Kpa 差压压力表轴向连接全不锈钢嵌入式差压表63mm
Double bourden tubes 250Kpa differential pressure gauge axial connection all stainless steel embedded differential pressure gauge 63mm
差压压力表产品参数:
产品型号:YCF-63HZ
仪表精度:2.5F.S.
外壳材质:不锈钢304
接头材质:不锈钢304(可选316L)
表盘直径:63mm
IP 等级:IP65
超压能力:125%满量程后可回零
环境温度:-20℃~60℃
UV 高清印刷表盘
可插入式仪表
精度 2.5F.S.
304不锈钢外壳寿命长
可追溯生产信息
不锈钢接头:NPT1/4
双波纹管压力测量元件
