Chuck pointer shows transmitter 4~20mA output

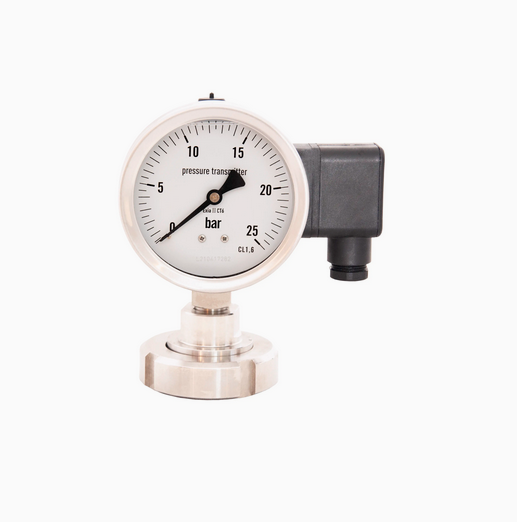

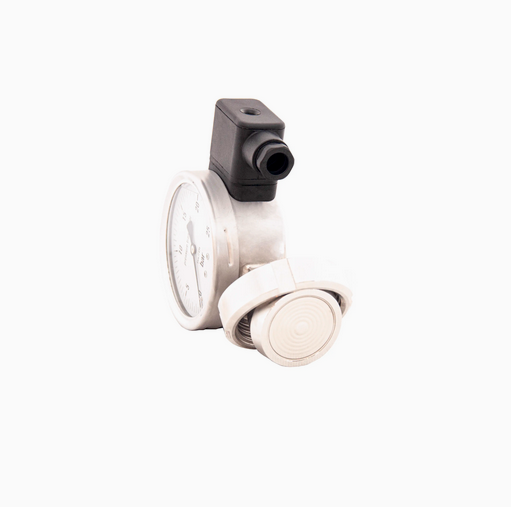

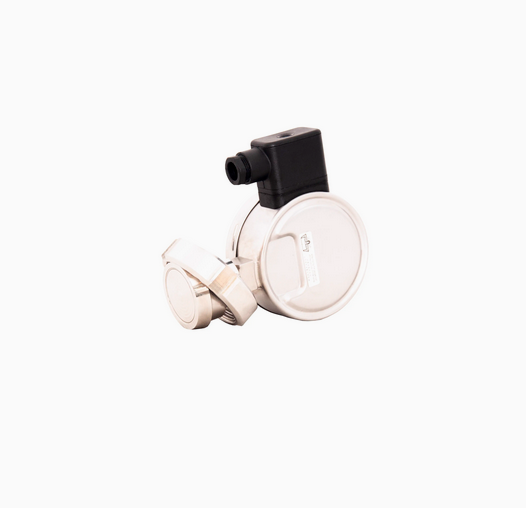

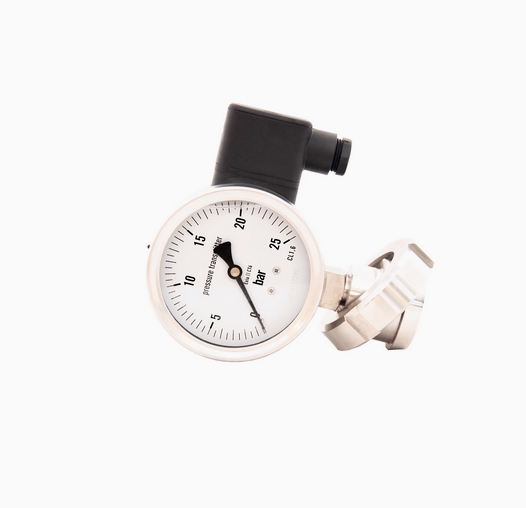

Radial mounting YXZ-100H- liquid filled chuck pointer display transmitter
Chuck pointer shows transmitter 4~20mA output
Product Model :YXZ-100H- Liquid filled
Instrument accuracy: 1.OF. S.
Case material: stainless steel 304/316L
Liquid material: stainless steel 304/316L
Dial diameter :100mm
IP level :IP65
Overpressure capacity :125% can be returned to zero after full scale
Ambient temperature :-20℃~60℃

UV HD printed dial
Electrical contact signal output
304/316L stainless steel housing
Plexiglass safety glass
Accuracy class 1.0F.S
Traceability of production information
The pressure change drives the elastic element and then indicates the pressure value through the precision movement
Clean diaphragm
Liquid-filled shock-resistant (can be customized filled glycerin, silicone oil high temperature silicone oil, low temperature silicone oil low expansion high temperature synthetic oil minimum -120 degrees, maximum 110 degrees)

径向安装YXZ-100H-充液卡盘式指针显示变送器
卡盘式指针显示变送器 4~20mA输出
产品型号:YXZ-100H-充液
仪表精度:1. OF. S.
外壳材质:不锈钢304/316L
接液材质:不锈钢304/316L
表盘直径:100mm
IP 等级:IP65
超压能力:125%满量程后可回零
环境温度:-20℃~60℃
UV 高清印刷表盘
电接点信号输出
304/316L不锈钢外壳
有机玻璃安全玻璃
精度等级 1.0F.S
可追溯生产信息
压力变化带动弹性元件再通过精密机芯指示压力值
洁净膜片
充液耐震(可定制充甘油，硅油高温硅油，低温硅油低膨胀高温合成油最低-120度，最高110度)
