Single flange pressure transmitter High precision explosion-proof pneumatic hydraulic digital display side mounted single flange level transmitter

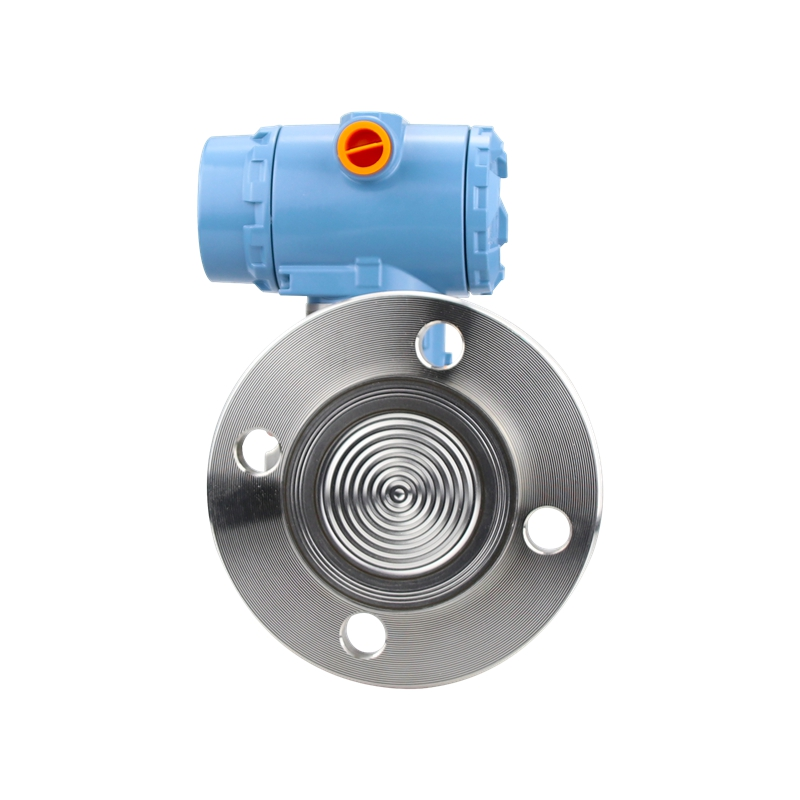

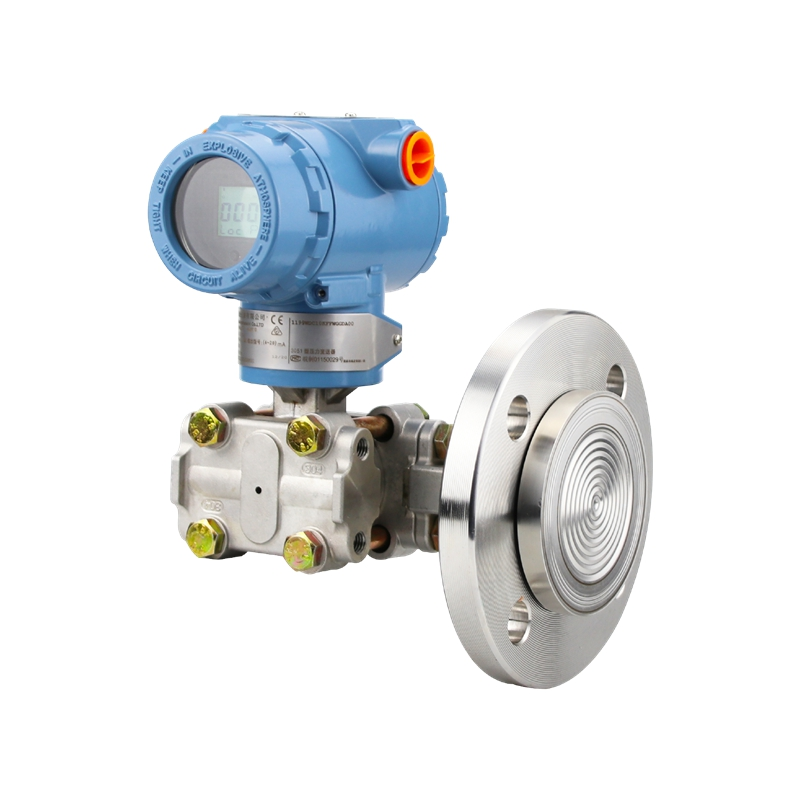

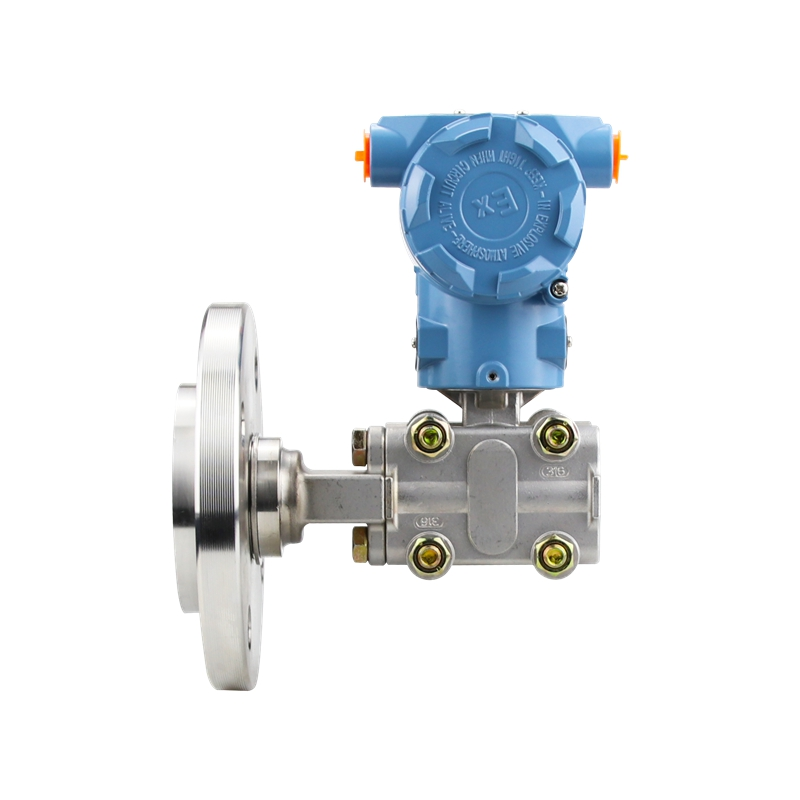

CPS863 liquid level transmitter
The CPS863 level transmitter is used to measure the liquid level and convert it to 4-20mA d.c. Current (superimposed HART communication) or RS485 communication signal output; It can realize remote setting, monitoring and other functions through communication equipment.

Product model :CPS863
Overall accuracy :0.1%
Range :0~1Kpa~0~25Mpa optional
Output signal :DC4~20mA+HART protocol
Enclosure protection :IP65
Supply voltage :24V DC
Adaptation temperature :-20~200°C
Flange size :DN50(customizable)
Diaphragm material :316L/ C/ Tantalum Monel alloy/gold plated optional
Single flange level/pressure transmitter
