CPS803 direct connection pressure transmitter

Pressure transmitter sensor digital explosion-proof capacitive 4-20mA high temperature resistant single crystal silicon pressure transmitter

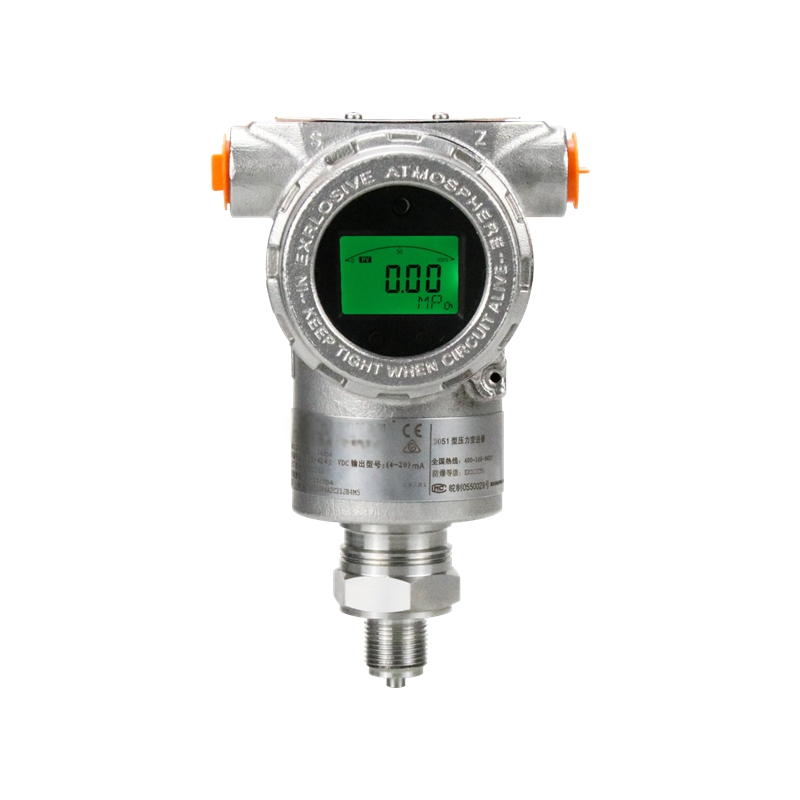

CPS803 direct connection pressure transmitter
The CPS803 pressure transmitter is used to measure liquid, gas or vapor pressure and convert it to 4-20mA  ，d.c. Current (superimposed HART communication) or RS485 communication signal output; It can realize remote setting and monitoring through communication equipment.

The overall accuracy is 0.1FS%/5 years
Product shell: aluminum alloy material, exterior spray epoxy resin
Measurement range :-0.1~60Mpa, can be customized
Ambient temperature :-40~+85°C, -10~+60°C
Enclosure protection :IP67
Output signal :4-20mA analog output +HART communication
Diaphragm material :316L/ titanium /HC/ Tantalum/Hastelloy C/ Monel alloy
Bus standard :4~20mA HART

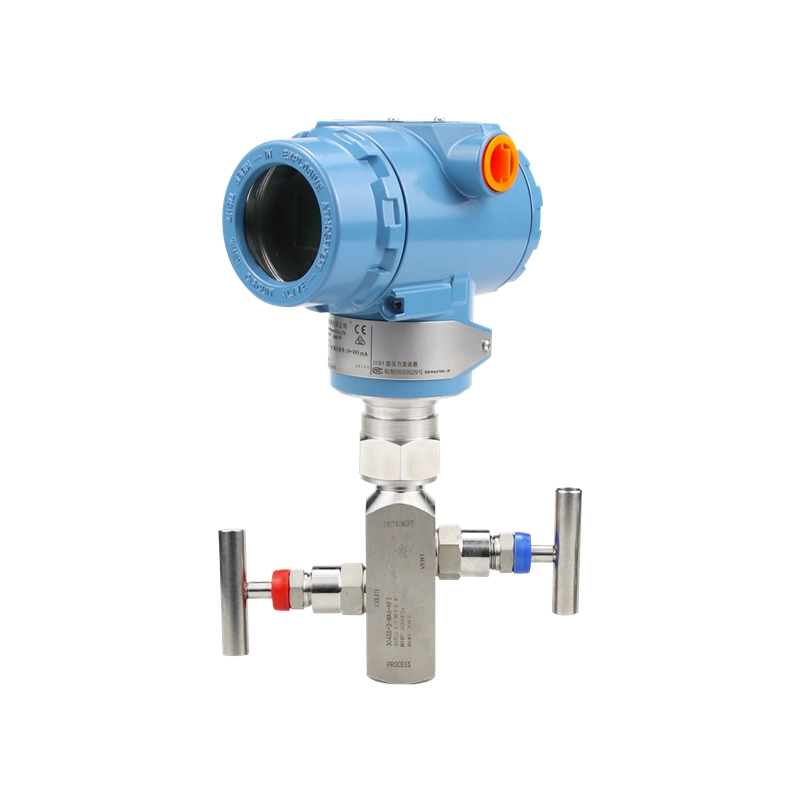

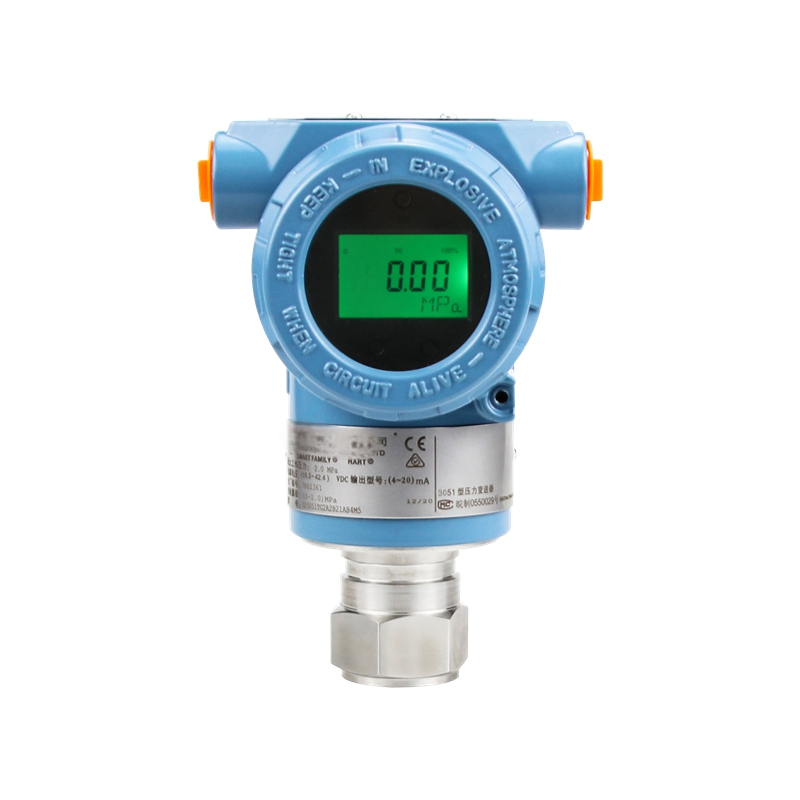

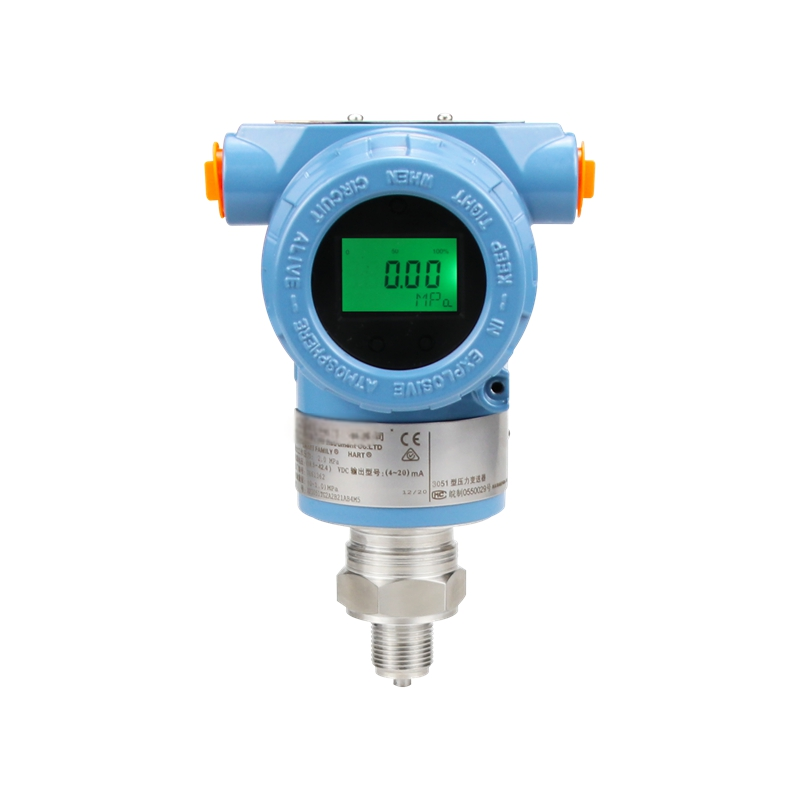

direct connection pressure transmitter 5 models:
Economy type internal thread
Economy type external thread
Internal thread thread
External thread thread
316L
