CPS813 Papermaking Pressure Transmitter
CPS813 is a high-precision paper-making pressure transmitter with special process connections. The pressure-sensing unit is in the front and the diaphragm is flush with the inner wall of the pipe. It solves the problem of easy clogging of high-viscosity media and can be used in paper-making and other clogging-prone working conditions. Its function is to convert the detected pressure signal into 4-20mAd.c. current (superimposed HART communication) or RS485 communication signal output: remote setting, monitoring and other functions can be realized through communication equipment.
Pressure transmitter parameter table
Product model:CPS813
Comprehensive accuracy: 0.2%
Measuring range: -0.1~10Mpa (can be customized)
Ambient temperature:-40~+80°C
Output signal: 4~20mA+HART protocol/PROFIEUS-PA/FF
Product shell: cast aluminum alloy material
Protection level: IP67
Diaphragm material: 316L/HC-276/tantalum/Monel/316L gold plating
Electrical interface: M20*1.5, 1/2'NPT

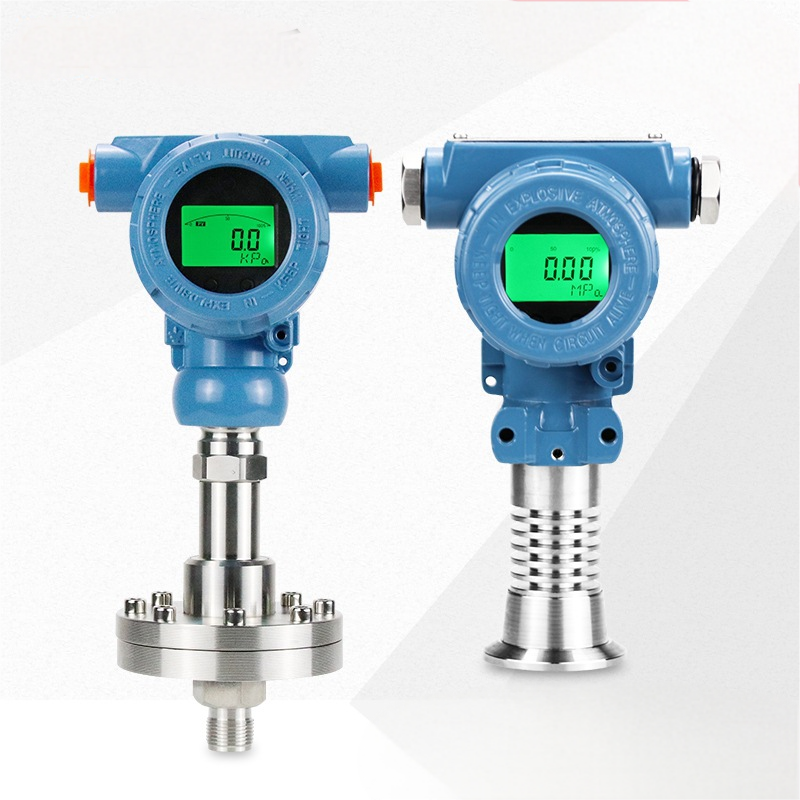

Pressure transmitter style:
50.5 chuck type pressure transmitter
Threaded flat membrane pressure transmitter

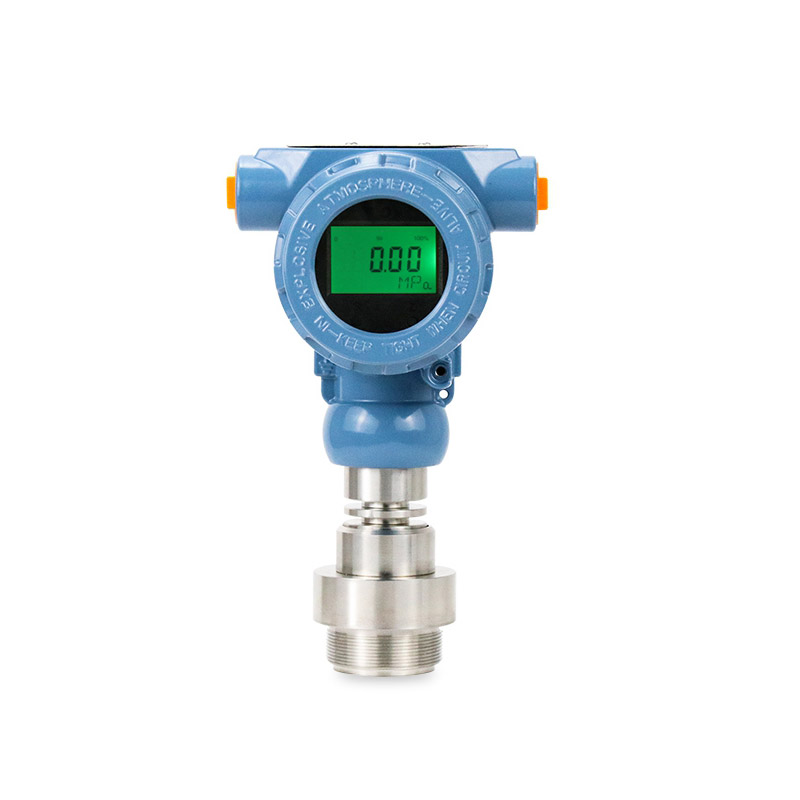

Threaded diaphragm pressure transmitter
Papermaking type pressure transmitter
