CP2088 pressure sensor
Diffused silicon pressure transmitter digital display high temperature explosion-proof gauge pressure absolute pressure hydraulic pressure 2088 pressure sensor

Product model: CP2088 pressure sensor
Comprehensive accuracy: 0.1~0.5%
Measuring range: -0.1~100Mpa (can be customized)
Ambient temperature:-10~+125°C
Output signal: DC4~20mA+HART protocol
Product shell: cast aluminum alloy material
Protection level: IP67
Diaphragm material: 316L (default)
Electrical interface: M20*1.5, 1/2'NPT, G1/2'

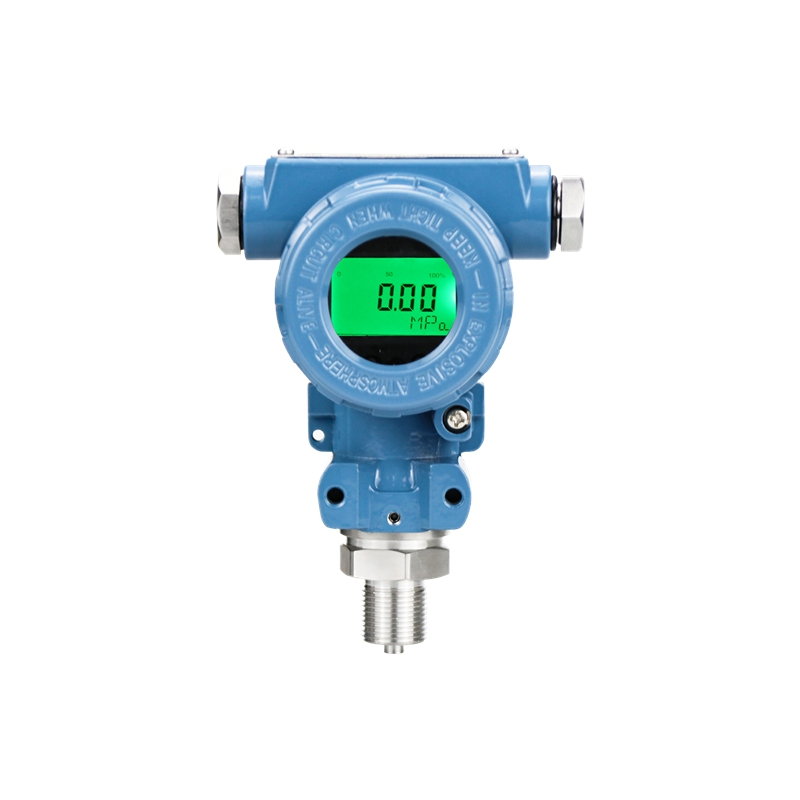

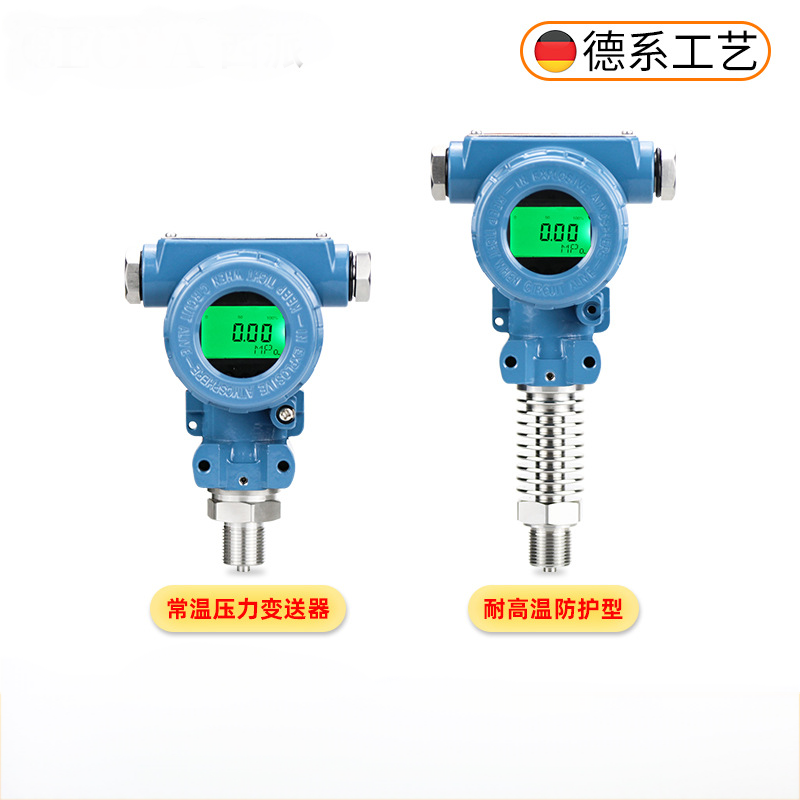

CP2088 type

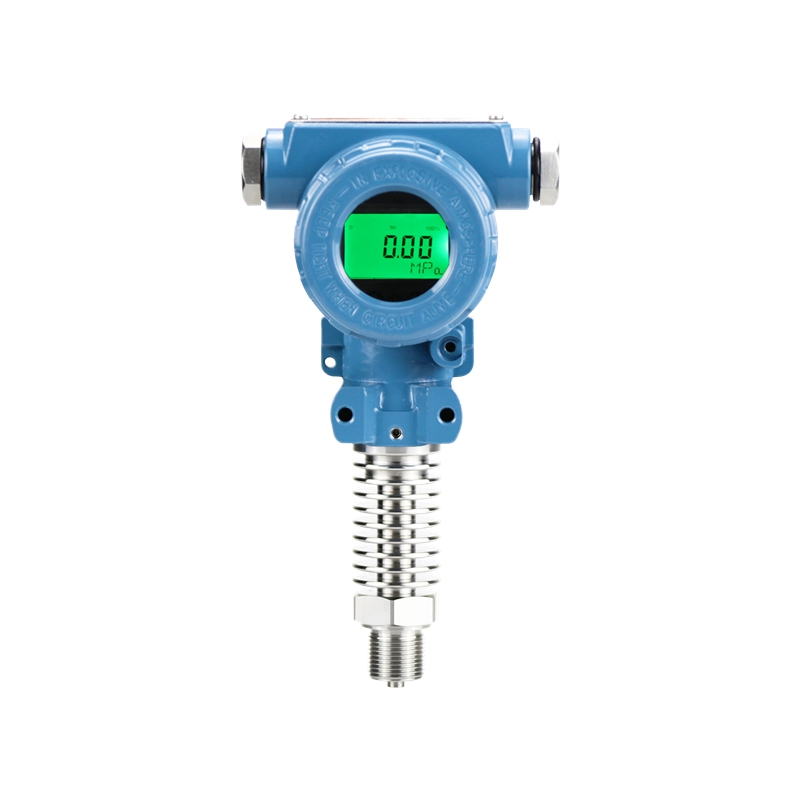

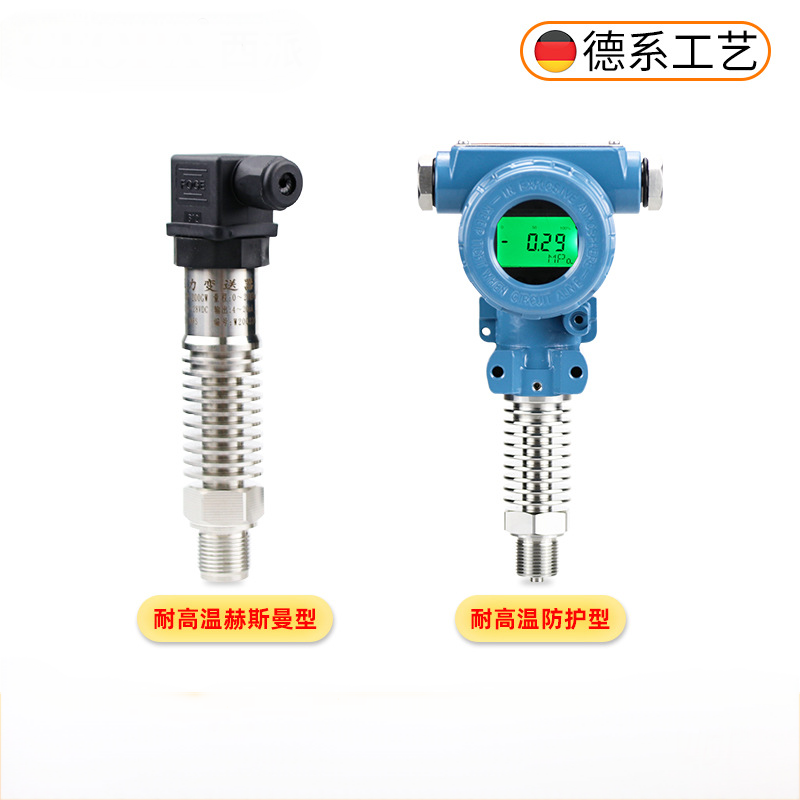

CP2088 high temperature type

Product selection
CP2088 series pressure/differential pressure transmitter adopts shell thread size M27x2, or direct outlet type. According to different applications on site, different types of sensors can be used, and a variety of circuit board types are available (analog board, digital board, intelligent board board, etc.). Because of its compact and flexible installation method, it has been widely used in various fields.

illustrate
The CP2088 pressure transmitter is assembled with high-quality and high-precision imported sensitive components. It has a compact structure, light weight, and is easy to install and maintain. The zero point and range can be continuously adjusted externally, and the migration range is wide.
High-temperature products adopt a multi-chip heat sink structure, allowing the product to work stably for a long time at a high temperature of 315°C.
