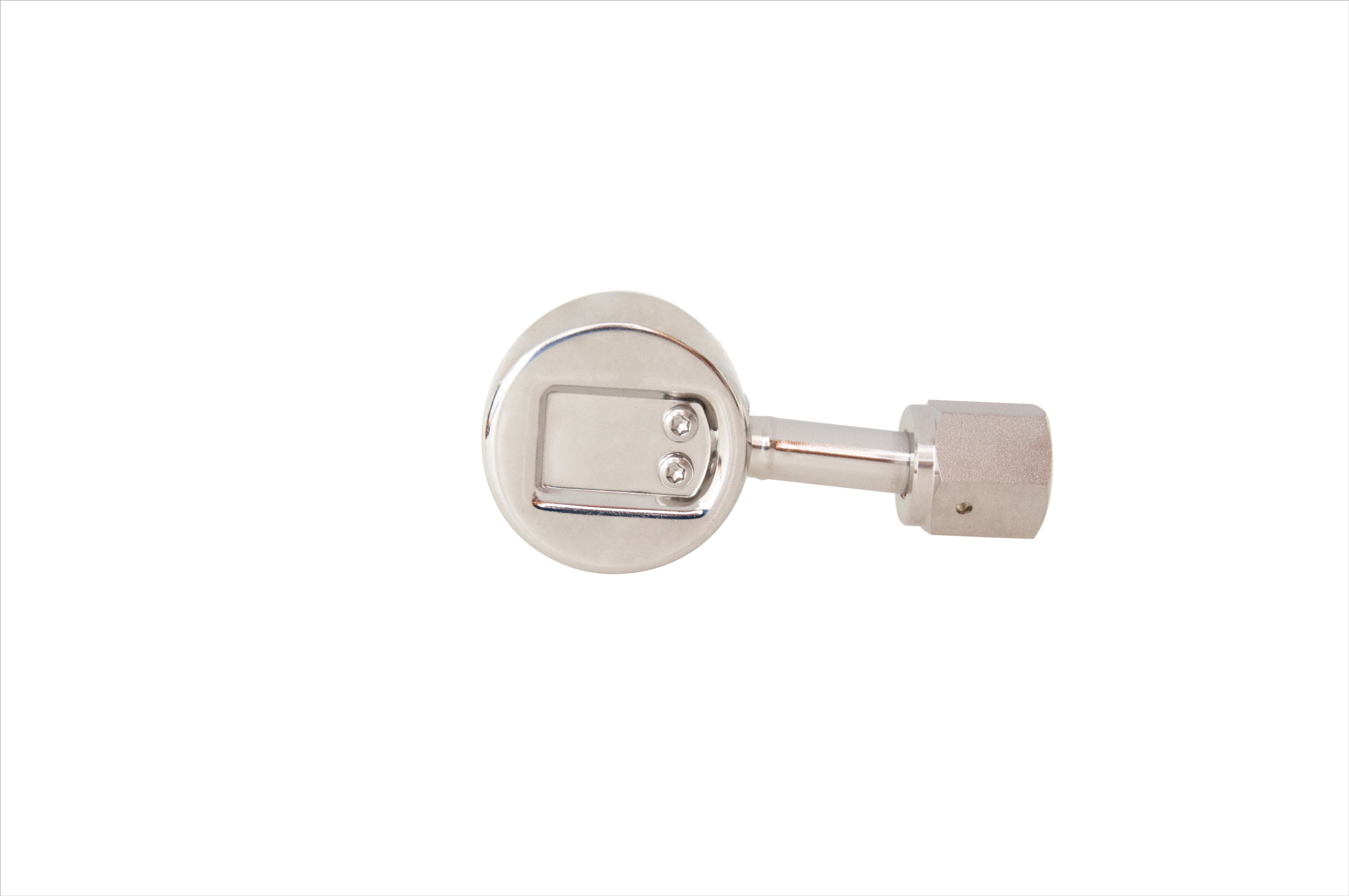

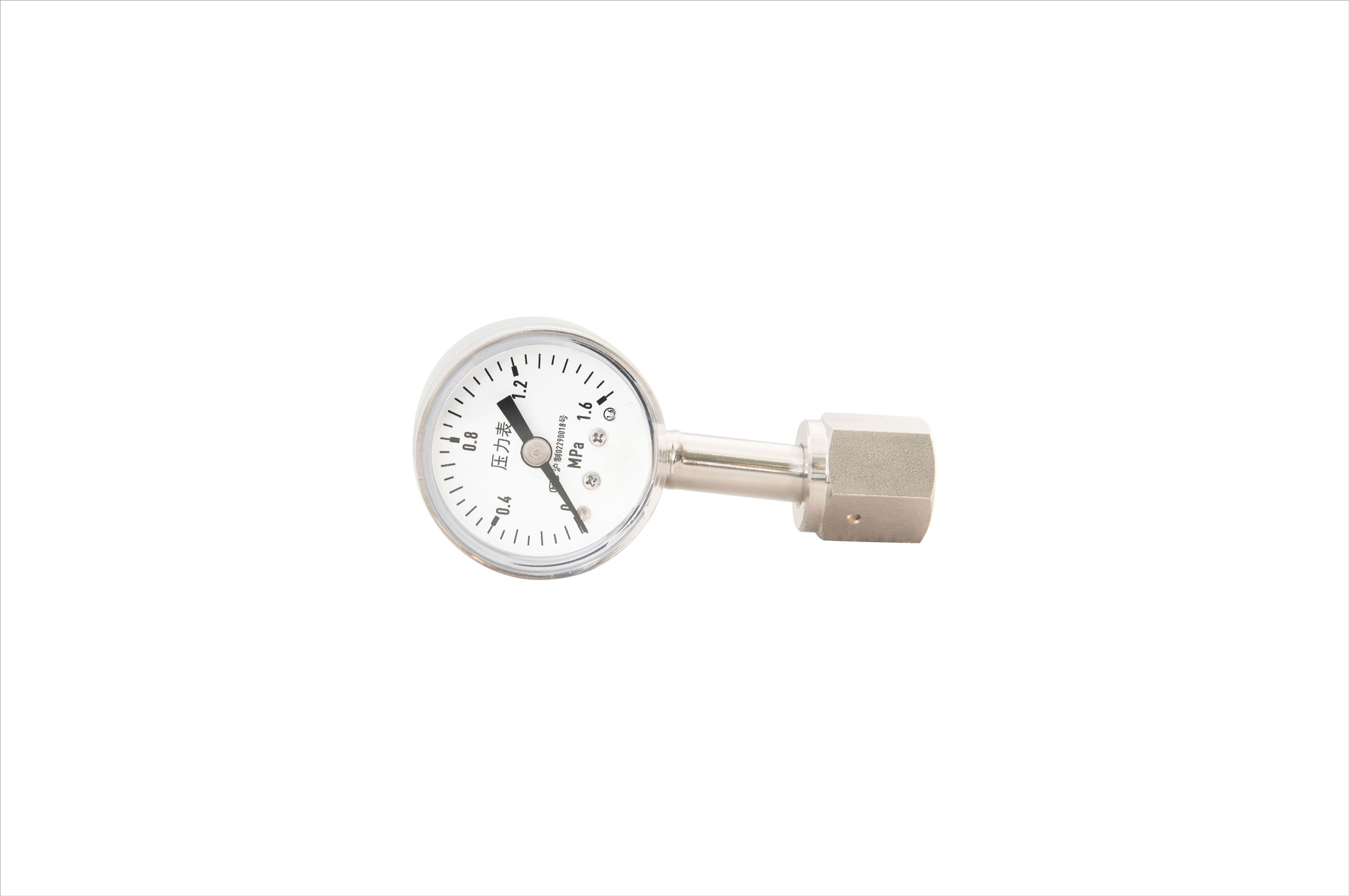

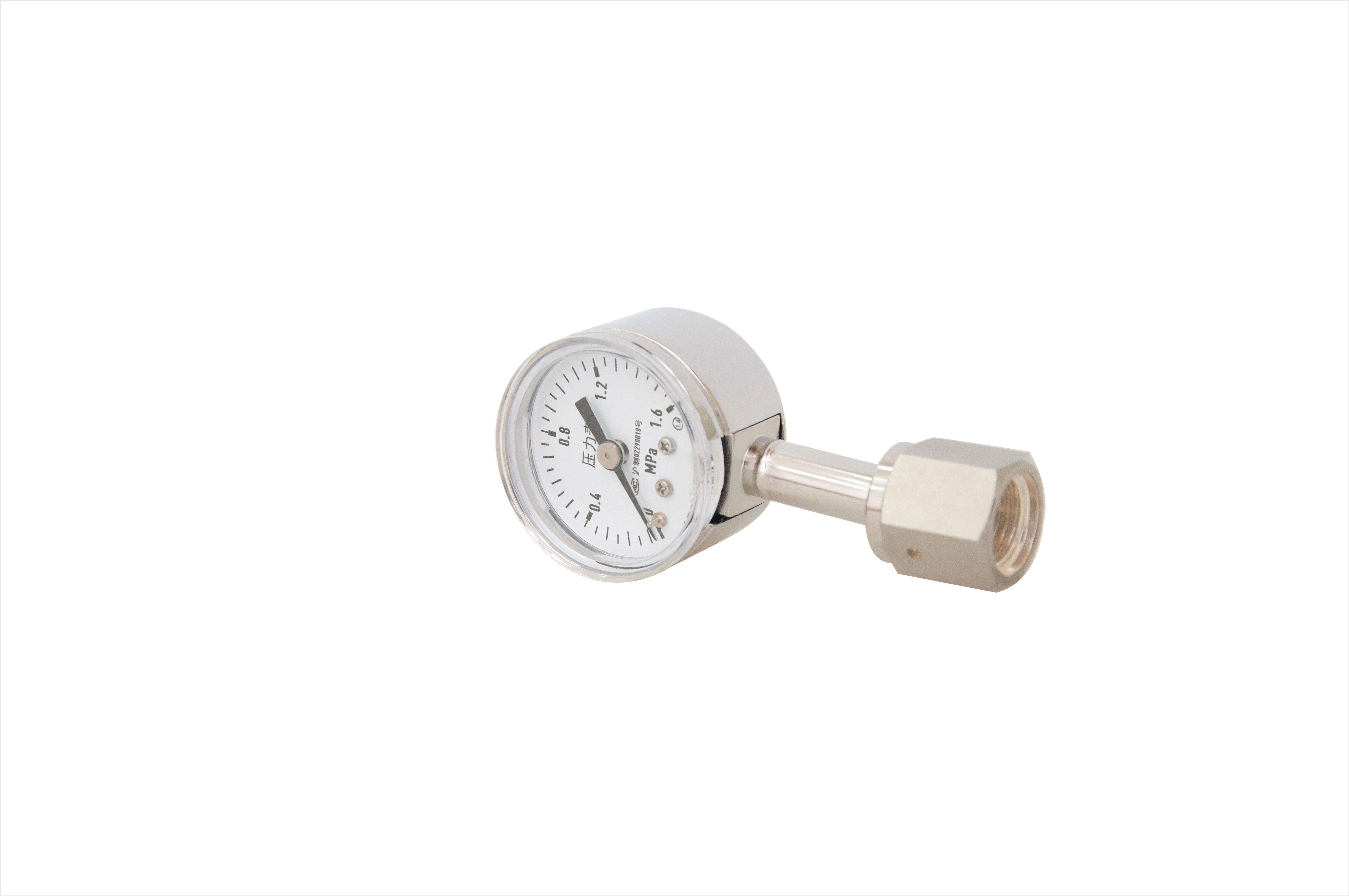

40MM bottom connection EP class VCR male and female thread clean pressure gauge 1.6FS

40MM bottom connection EP class VCR male and female thread clean pressure gauge 1.6FS

EP class 0~100PSI,EP class 0~3000PSI,EP class -30~160PSI,VCR male and female thread clean pressure gauge

Product model :YTJ-40E

Meter accuracy :(2/1/2)

Shell material :304 stainless steel

Connector material :316L stainless steel plating

Thread interface :1/4M-VCR/1/4F-VCR

Dial diameter :40mm

IP class :IP54

Helium leak detection :<10-⁹mbar×L/sec

Cleanliness :EP grade

Surface smoothness: Ra≤0.25μm

Ambient temperature: -40℃~80℃

Overpressure capacity: 125% full scale can return to zero

Fluctuating pressure: 67% of full scale

Constant pressure: 75% of full range

40MM 径向 EP级 VCR公母螺纹洁净压力表 1.6FS

EP级 0~100PSI,EP级 0~3000PSI,EP级 -30~160PSI,VCR公母螺纹洁净压力表

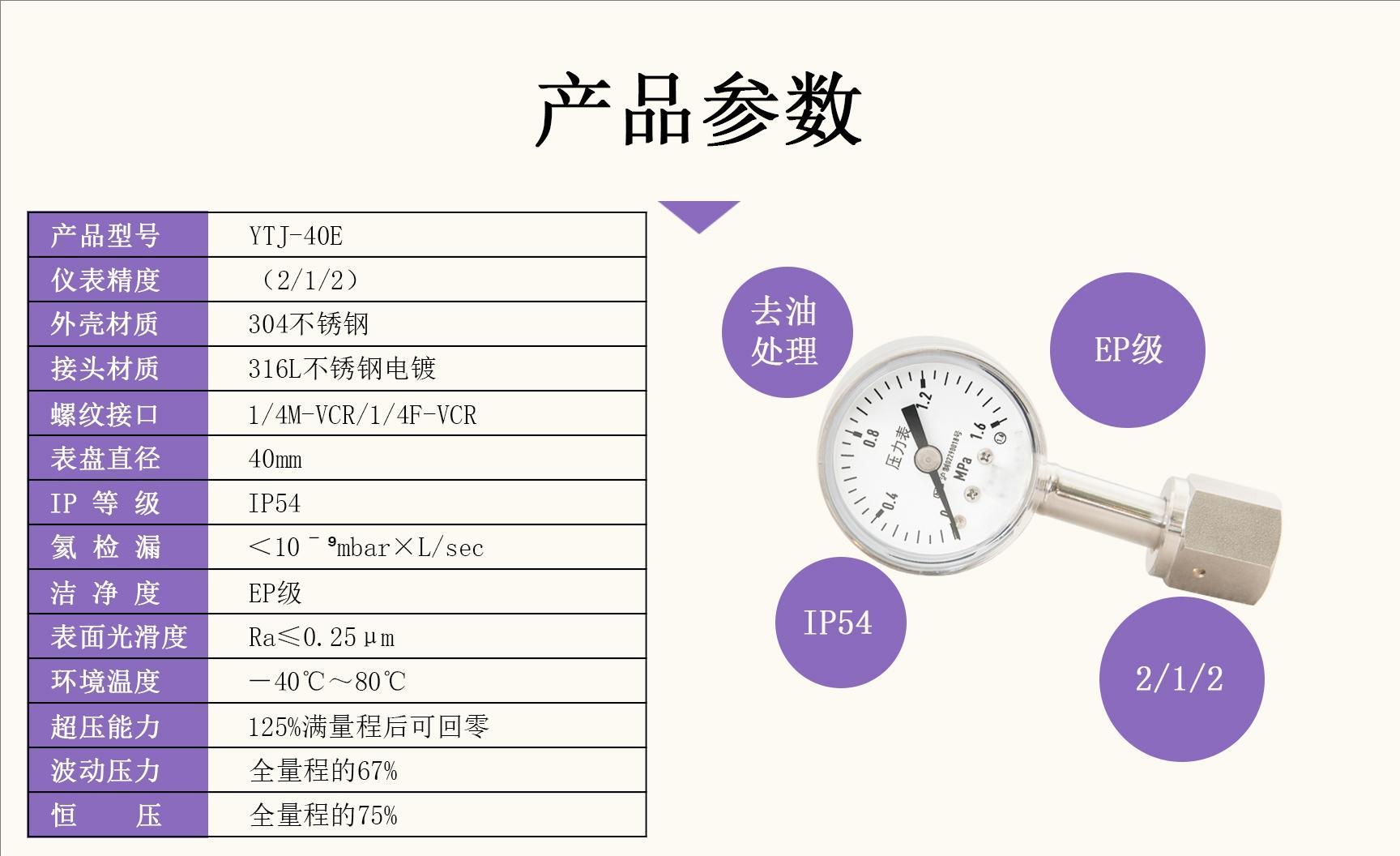

产品型号:YTJ-40E

仪表精度:(2/1/2)

外壳材质:304不锈钢

接头材质:316L不锈钢电镀

螺纹接口:1/4M-VCR/1/4F-VCR

表盘直径:40mm

IP 等 级:IP54

氦 检 漏:<10-⁹mbar×L/sec

洁 净 度:EP级

表面光滑度：Ra≤0.25μm

环境温度：-40℃~80℃

超压能力：125%满量程后可回零

波动压力：全量程的67%

恒压：全量程的75%

EP级 0~100PSI,EP级 0~3000PSI,EP级 -30~160PSI,其他量程EP级洁净压力表
