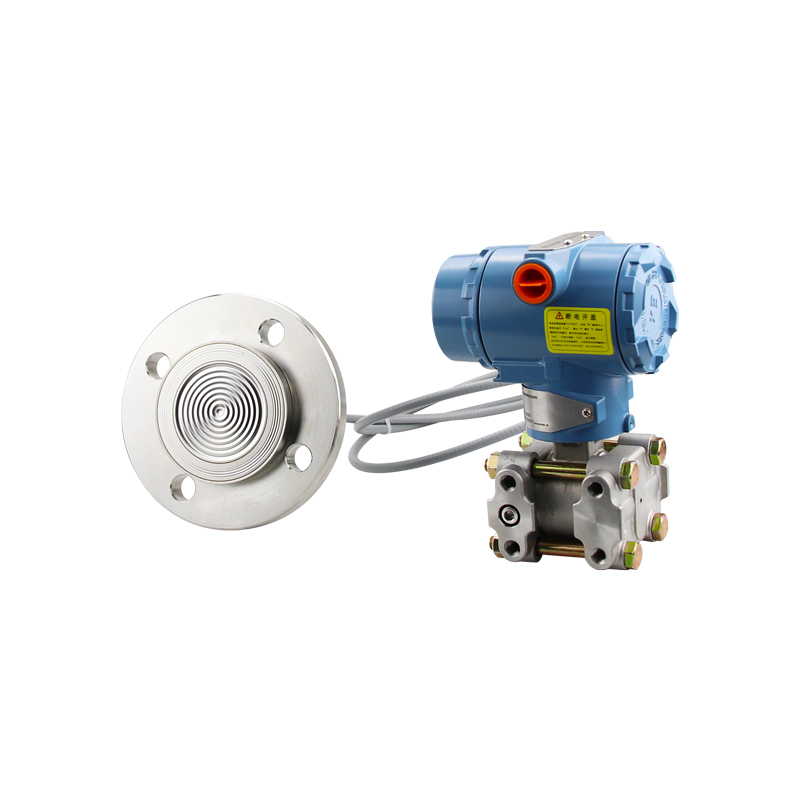

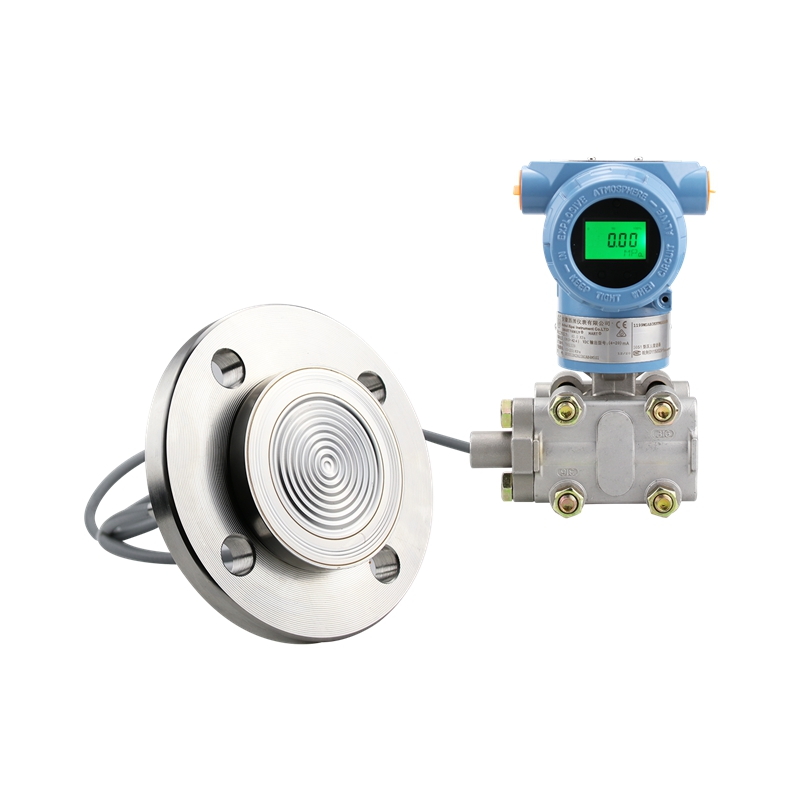

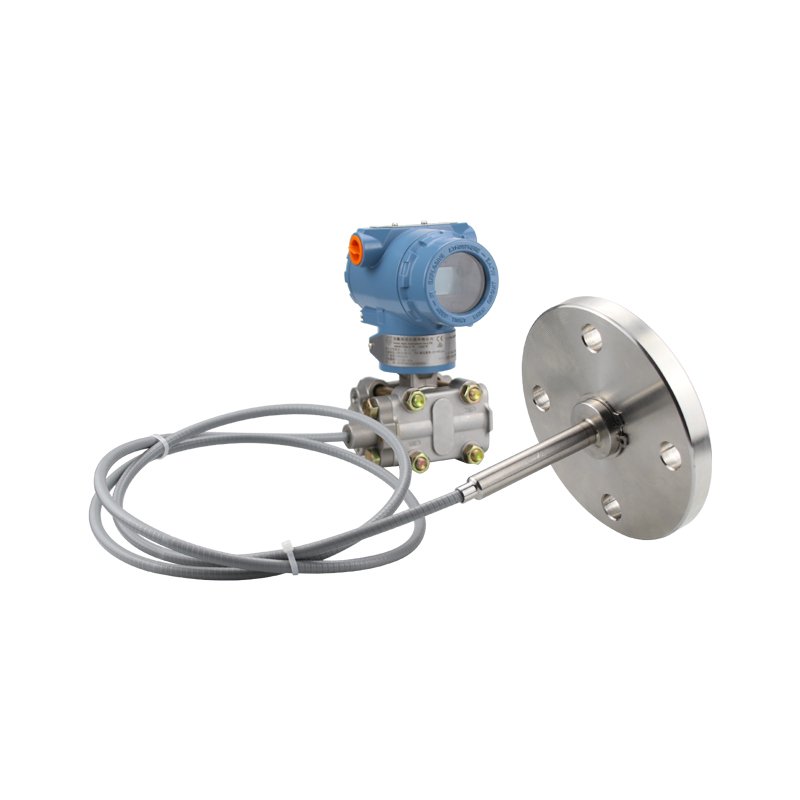

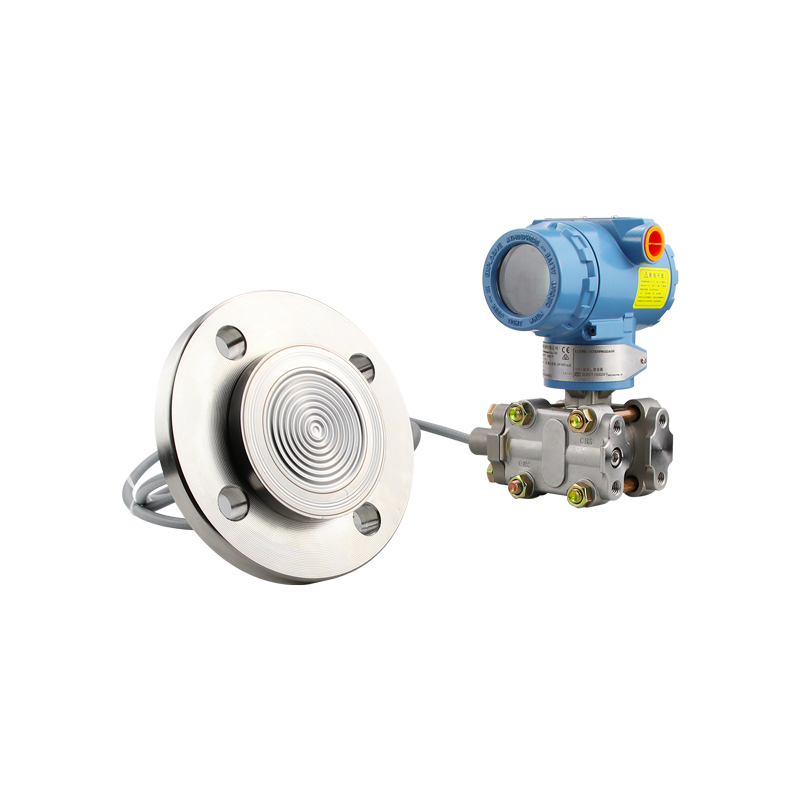

Single flange liquid level transmitter high-precision digital display differential pressure transmitter 4-20mA air pressure hydraulic pressure sensor

Single flange liquid level transmitter high-precision digital display differential pressure transmitter 4-20mA air pressure hydraulic pressure sensor

Single flange remote transmission differential pressure transmitter product parameter table

Product model:CPS873
Comprehensive accuracy: 0.2%
Measuring range: 0~1Kpa~0~25Mpa optional
Output signal: DC4~20mA+HART protocol
Shell protection: IP65
Power supply voltage: 24V DC
Adaptable temperature: -20~200°C
Flange size: DN50 (can be customized)
Diaphragm material: 316L/HaC/tantalum Monel alloy/gold plating optional

CPS873 remote pressure transmitter is used to measure pressure and convert it into 4-20mAd.c. current (superimposed HART communication) or RS485 communication signal output; remote setting, monitoring and other functions can be realized through communication equipment.
