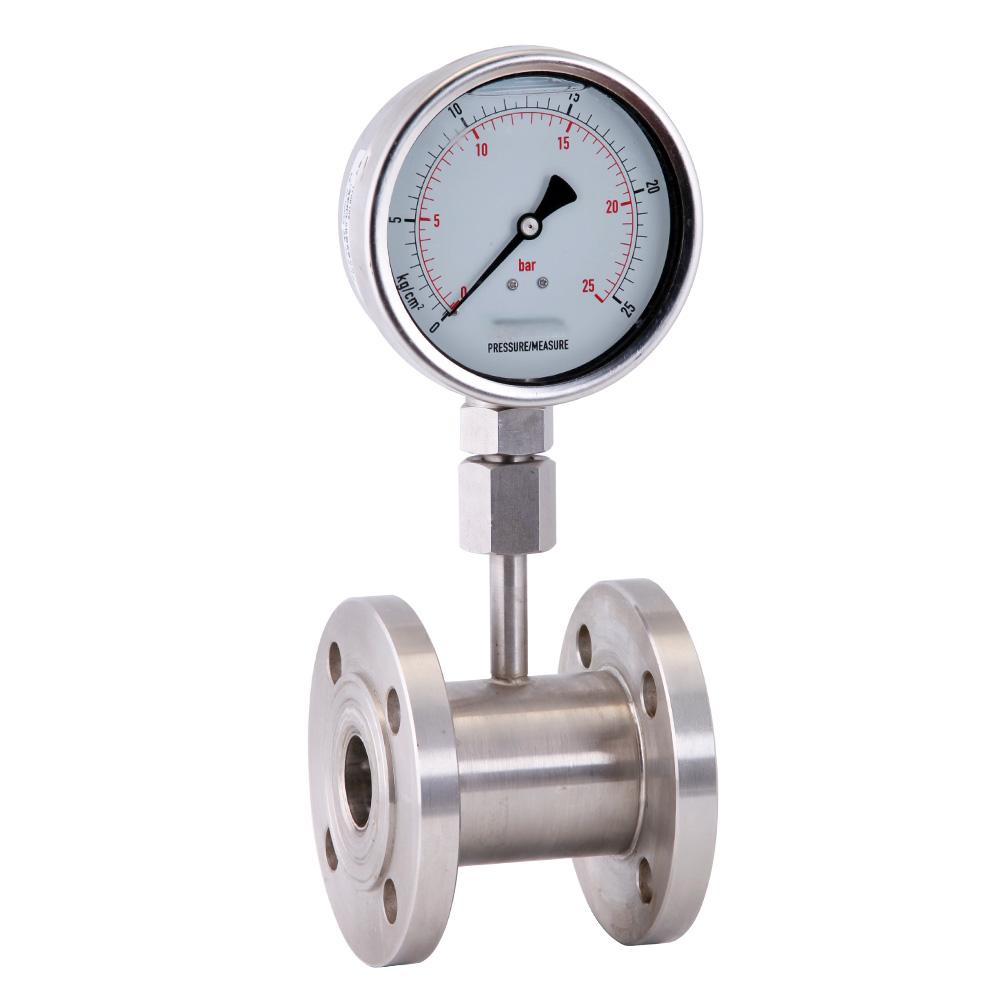

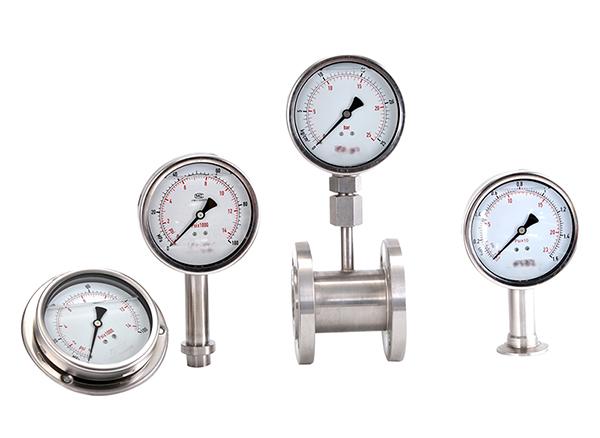

Cylinder diaphragm seal pressure gauge, the cylinder diaphragm seal pressure gauge is a high-performance pressure gauge of our company, the product adopts the technology of diaphragm seal to separate the test device and the process medium, while the pressure change is transmitted to the test original, this series of products adopts the cylinder diaphragm structure design, no Angle and emboding, no measurement dead zone, diaphragm no lateral contraction.
Sealed cylindrical diaphragm,
Without convex angles and edges,
Can be installed directly between two flanges,
Special diaphragm, wear resistance, corrosion resistance
Technical Specifications:

Range: 0... 0.05MPa, 0... 2.5MPa, 0... 150MPa

Overall accuracy: ±1.6%FS

Structure: cylindrical diaphragm, flange installation, Bourdon tube structure

Overload pressure: 1.5×FS

Dial diameter: 100mm

Connection between the cavity and the wetted parts: 316L stainless steel

Measuring instrument connection: Pressure gauges or transmitters can be directly welded, process pressure gauges can be connected using a threaded adapter

Delivery medium :KN7 or KN12 glycerol

Maximum diaphragm temperature: 125℃

Process connection: used to comply with flange execution standard :HG/T20592-2009;

(The current maximum flange use: DN125/PN40)
